Quick Details
-
Brand Name:
-
JSN
-
Model Number:
-
CX-WUFM-TDS
-
Product Name:
-

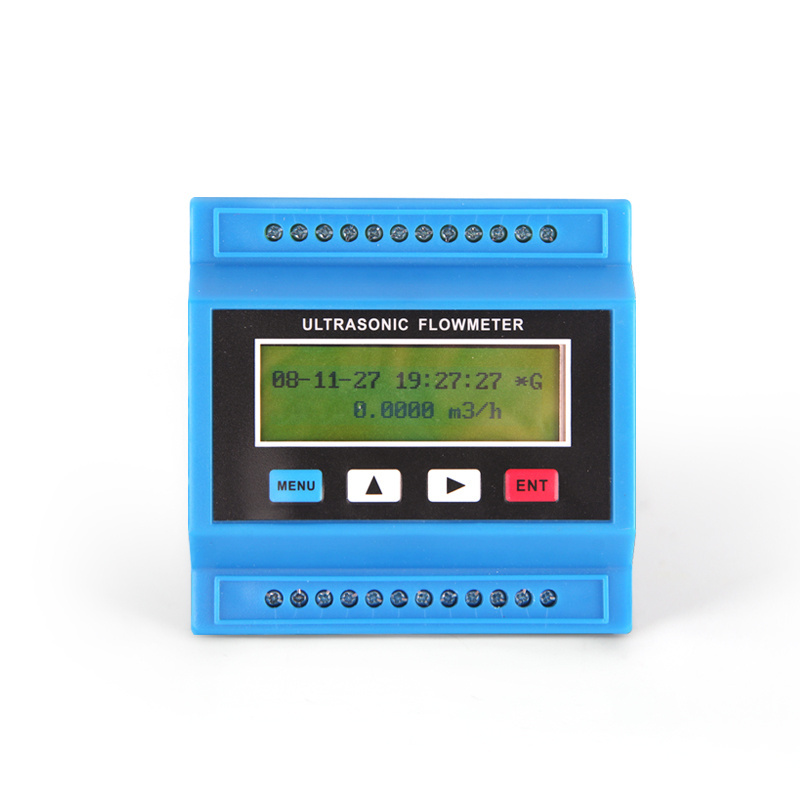

Modular Ultrasonic Flow Meter
-
Medium:
-
Water
-
Power supply:
-
220VAC/ 24VDC
-
Accuracy:
-
1.0%
-
Application:
-
Liquid Flow Measurement
-
Connection:
-
Flange Clamp Thread
-
Keywords:
-
Ultrasonic Flow Meter Water
-
Output:
-
4-20mA
-
Display:
-
LCD Digital Display
-
Material:
-
Aluminum Shell
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JSN
-
Model Number:
-
CX-WUFM-TDS
-
Product Name:
-
Modular Ultrasonic Flow Meter
-
Medium:
-
Water
-
Power supply:
-
220VAC/ 24VDC
-
Accuracy:
-
1.0%
-
Application:
-
Liquid Flow Measurement
-
Connection:
-
Flange Clamp Thread
-
Keywords:
-
Ultrasonic Flow Meter Water
-
Output:
-
4-20mA
-
Display:
-
LCD Digital Display
-
Material:
-
Aluminum Shell
Modular ultrasonic flowmeter is an instrument that uses ultrasonic technology to measure fluid flow rate, consisting of sensors, transmitters, and receivers. It can detect parameters such as fluid flow rate, flow rate, and liquid level;
Modular ultrasonic flow meters can operate in different fluid environments, such as liquids, vapors, gases, and mixtures.
Product Description
|
Product Name
|
RS485 IP65 Modular Ultrasonic Flow Meter Medium External Clamp Sensor
|
|
Temperature
|
0-90℃
|
|
Measuring pipe diameter
|
DN300-DN6000mm
|
|
Communications
|
RS485
|
|
Output
|
4-20 ma
|
|
Measurement accuracy
|
better than ±1%
|
|
Repeatability
|
better than 0.2%
|
|
Working power supply
|
85-264VAC
|
|
installation method
|
external installation
|
|
Protection grade
|
IP65
|
Features
Modular ultrasonic flow meters can detect fluids of different pressures, temperatures, and concentrations, with strong anti-interference ability and easy installation, which can meet the flow measurement requirements in different environments.
The installation of modular ultrasonic flow meters is very simple and can be directly installed on pipelines without the need for dismantling pipelines or complex system debugging, which can save a lot of installation and debugging manpower and time.
Modular ultrasonic flow meters can accurately measure low flow fluids and accurately control flow rates, thereby saving energy consumption.
Modular ultrasonic flow meters have the characteristics of easy installation, high accuracy, and strong anti-interference ability.
The modular ultrasonic flowmeter has high reliability, high accuracy, low maintenance cost, no loss, and is not affected by the medium. It can be installed horizontally and vertically in the medium, with a wide measurement range, and can be used indoors and outdoors. The structure is simple, the installation is convenient, and remote monitoring can be carried out.
Modular ultrasonic flow meters can be used for flow measurement in industrial production, such as oil, gas, gas, steam, water, and other flow measurements. They can also be used for flow measurement in hydraulic engineering, such as flow measurement in reservoirs, rivers, and mountain torrents.
