Quick Details
-
Model Number:
-
HXD12100
-
Place of Origin:
-
Guangdong, China
-
Electric Energy:
-
1280 Wh
-
Battery cell:
-
Safest Steel cyclindrical LiFePO4 Cell
-
Nominal Capacity::
-
50Ah 70Ah 100Ah 120Ah 150Ah 200Ah
-
Cycle life:
-
4500 Times
-
Product name:
-
12V 100Ah Lifepo4 Battery Pack
-
Weight:
-
20kg
-
Shell Material:
-
ABS Case or Metal Case
-
Certification:
-
CE/UN38.3/MSDS
-
Quality:
-
A+ Grade 100%
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Toys, Home Appliances, Consumer Electronics, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Solar Energy Storage Systems, Electric Forklifts
-
Brand Name:
-
HXD
-
Model Number:
-
HXD12100
-
Place of Origin:
-
Guangdong, China
-
Electric Energy:
-
1280 Wh
-
Battery cell:
-
Safest Steel cyclindrical LiFePO4 Cell
-
Nominal Capacity::
-
50Ah 70Ah 100Ah 120Ah 150Ah 200Ah
-
Cycle life:
-
4500 Times
-
Product name:
-
12V 100Ah Lifepo4 Battery Pack
-
Weight:
-
20kg
-
Shell Material:
-
ABS Case or Metal Case
-
Certification:
-
CE/UN38.3/MSDS
-
Quality:
-
A+ Grade 100%
Product Description
|

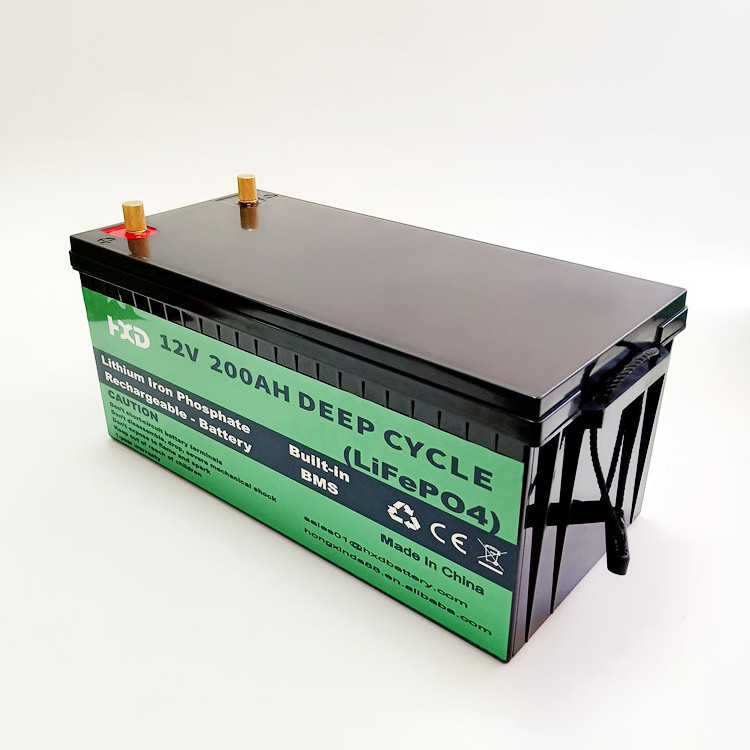

Lifepo4 Battery Pack 12V 24V 200Ah 300Ah 400Ah 500Ah for RV Camping Caravan AGV UPS Storage Battery
|
Deep Cycle Rechargeable Battery With Built-in BMS Lithium Ion Battery 89.6WH 12V 7AH LiFePO4 Battery Pack
|
|
||
|
|
Nominal Voltage
|
12.8V
/24v
|
||
|
|
Nominal Capacity
|
200Ah
|
||
|
|
Energy
|
2560Wh
|
||
|
|
Internal Resistance
|
≤30mΩ
|
||
|
|
Cycle Life
|
2000 Cycles （ 0.2C Charging/Discharging ,Until 70% Capacity）
|
||
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
||
|
|
Max.Charging Voltage
|
14.0~14.6V
|
||
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of
14.6V until the current was not more than 0.02C |
||
|
|
Charging Current
|
100A
|
||
|
|
Max.Charging Current
|
100A
|
||
|
|
Discharging Current
|
150A
|
||
|
|
Max. Continuous Current
|
150A
|
||
|
|
Max.Pulse Current
|
300A(<3S）
|
||
|
|
Discharging Cut-off Voltage
|
10.0
|
||
|
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) # 60±25% Relative Humidity
|
||
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) # 60±25% Relative Humidity
|
||
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) # 60±25% Relative Humidity
|
||
|
|
Water Dust Resistance
|
IP55
|
||
