Quick Details
-
Brand Name:
-
WTJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*1200*1550mm
-
Weight:
-
1200 KG
-
Usage:
-
business card,plastic id card,playing card cutting
-
Cutting Material:
-
PVC,Paper, PC, Mixed material
-
Output:
-
28000PCS/H
-
Punching precision:
-
±0.05mm
-
Sheet Thickness:
-
0.15~2.0mm
-
Advantage:
-
High Accuracy
-
Control system:
-
PLC+HMI
-
Power Supply:
-
380V/3PH/50HZ
-
Air Pressure:
-
0.6MPa
Quick Details
-
Type:
-
Punching Machine
-
Marketing Type:
-
High Quality
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WTJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*1200*1550mm
-
Weight:
-
1200 KG
-
Usage:
-
business card,plastic id card,playing card cutting
-
Cutting Material:
-
PVC,Paper, PC, Mixed material
-
Output:
-
28000PCS/H
-
Punching precision:
-
±0.05mm
-
Sheet Thickness:
-
0.15~2.0mm
-
Advantage:
-
High Accuracy
-
Control system:
-
PLC+HMI
-
Power Supply:
-
380V/3PH/50HZ
-
Air Pressure:
-
0.6MPa
Finished Cards Sample
Product Description

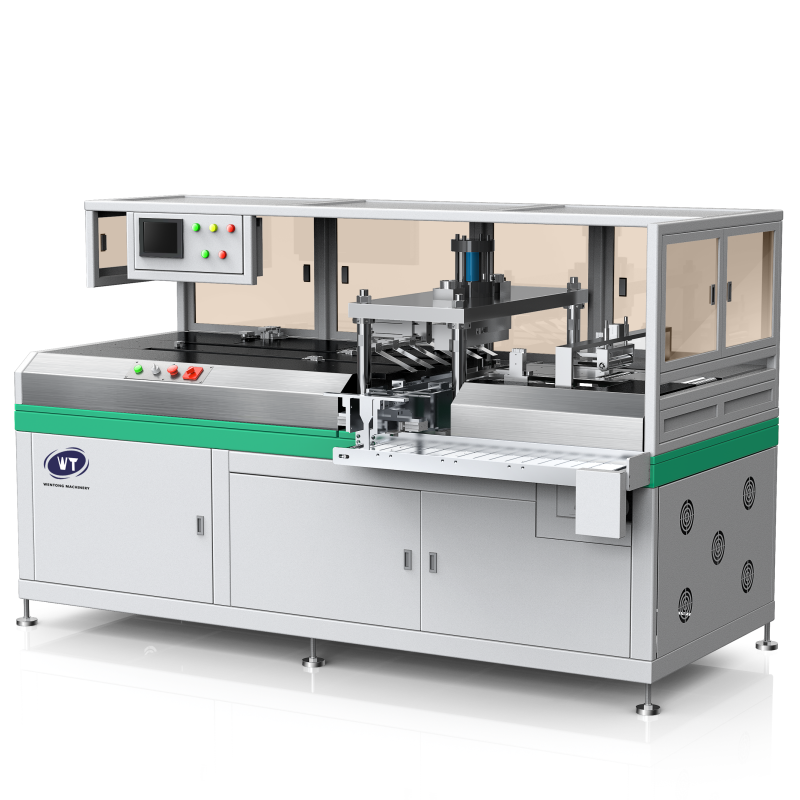

WT-009CKJ card punching machine is constructed to accurately cut cards of various materials including paper, PVC, ABS, PET, etc., suitable for manufacturing cards with sizes ranging from 54*54mm to 210*210mm. Sheets are accurately positioned by X and Y axes, making multiple processes of card forming, corner rounding, hole punching and creasing to be accomplished in one step, and punched cards are automatically collected in an orderly manner. This card punching machine is widely suited to make flashcards, cognitive cards, kid's books, calendars, hang tags, header cards, special shaped cards, etc.
Specifications
|
Power supply
|
AC 380V/50 HZ
|
|
Sheet format
|
Max. (L*W) 1100*700MM Min. (L*W) 297*210MM
|
|
Total power
|
6.5KW
|
|
Control
|
PLC control + servo/hydraulic system
|
|
Air source
|
6 kg/cm2
|
|
Air consumption
|
Approx. 60L/min
|
|
Dimension
|
L2750*W1500*H1700MM
|
|
Punching pressure
|
2T-6T
|
|
Weight
|
Approx. 1000KG
|
|
Punched card size
|
Max. 210*210MM Min. 54*54MM
|
|
Punching accuracy
|
±0.10mm
|
|
Applicable card materials
|
Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
|
|
Productivity
|
15000~30000PCS/H
|
Product features
1.Sheet feeding unit：Two feeding modules supply sheets alternately, position parameter is adjustable, the accuracy can reach ±0.10mm; 2.Punching unit：Punching pressure and speed can be easily adjusted, low noise and stable operation; 3.Punched card collection unit：After processes of card forming, corner rounding, hole punching and creasing are accomplished in one step, the collection unit automatically stacks and collects punched cards in an orderly manner, eliminating the need for secondary sorting;
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
