Wedge:4/6-way wedge
Cut 40cm diameter logs and up to 61cm in length,
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
500 KG
-
After-sales Service:
-
online support
-
Conveyor:
-
yes
-
color:
-
cusomized
-
max splitting force:
-
27ton
-
Max splitting length:
-
61cm
-
max splitting diameter:
-
50cm
-
package:
-
wooden case
-
cycle time:
-
7s
-
weight:
-
550kgs
-
chainsaw:
-
22inch
-
Certification:
-
CE ISO
Quick Details
-
Use:
-
Log Wood Processor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WTD
-
Weight:
-
500 KG
-
After-sales Service:
-
online support
-
Conveyor:
-
yes
-
color:
-
cusomized
-
max splitting force:
-
27ton
-
Max splitting length:
-
61cm
-
max splitting diameter:
-
50cm
-
package:
-
wooden case
-
cycle time:
-
7s
-
weight:
-
550kgs
-
chainsaw:
-
22inch
-
Certification:
-
CE ISO
Product Description

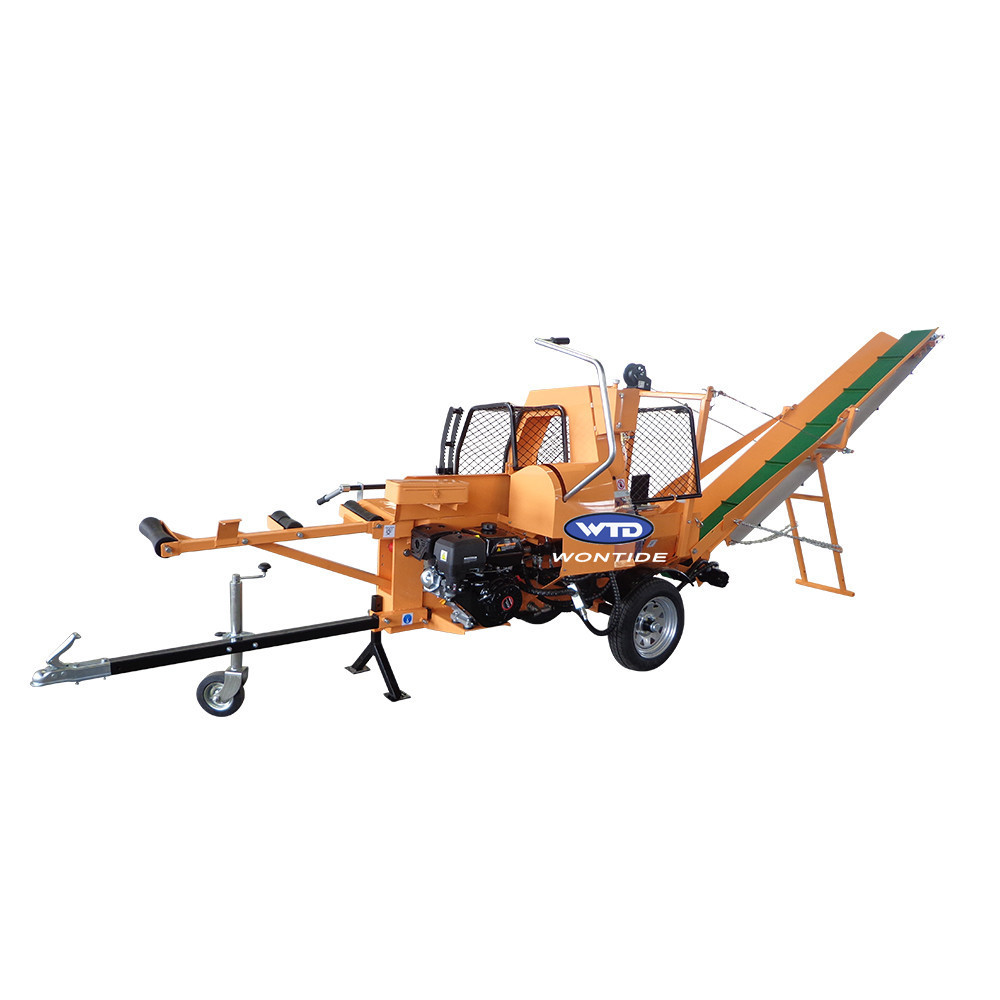

27Ton WOOD PROCESSOR with conveyor
We continues to offer our 27 Ton Firewood Processor to fill a void in the industry, offering acreage owners an economical and well engineered processor. The 27Ton Firewood Processor is built to last with direct customer input. From the powder coated structure, to its reliable 14 H.P Kohler gasoline engine, this processor will exceed your expectations and turn your logs into firewood effortlessly!
|
WTD-520GC FIREWOOD PROCESSOR
|
|
|
|
|||
|
Engine
|
|
14HP CE Gasoline Engine
|
|
|||
|
Max.Splitting Force
|
|
27Ton
|
|
|||
|
Max.Log Diameter
|
|
50cm
|
|
|||
|
Max.Log Length
|
|
61cm
|
|
|||
|
Saw Motor
|
|
30L/min, 4800rpm
|
|
|||
|
Chain size
|
|
64-1.5-0.325
|
|
|||
|
Hydraulic pump 1
|
|
30L/min,200bar
|
|
|||
|
Hydraulic pump 2
|
|
18L/min,200bar
|
|
|||
|
Cycle time
|
|
7 seconds
|
|
|||
|
Wheel
|
|
12inch trailer wheel
|
|
|||
|
Knife
|
|
2 or4ways knife(6 ways option)
|
|
|||
|
Net Weight
|
|
500kg
|
|
|||
|
Packing
|
|
Iron pallet
|
|
|||
|
Loading Qty.
|
|
24pcs/40'HQ
|
|
|||
Main Features
●Maximum pressure: 27 tons
●Maximum cutting /diameter: 40 cm
●Max splitting length: 61 cm
●Firewood production: about 5 m³ / hour
●Splitting Blade: 4/6-way carbon steel
●Warranty: 1 year
Detailed Images
Wedge
3.2m Conveyor
Belt width:200mm
Conveyor length:3.2meter
Our Company
Introduction:
QINGDAO WONTIDE has about 300 employees including more than 20 technical staff, covering a total area of nearly 30,000 sq meters.
FAQ
Q: Are you a factory or trading company?
A: We have our own factory, using "Self-produced Self-marketing" business model,reducing the cost of intermediate links.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A:Quality is priority. WTD people always attach great importance to quality controlling from the very beginning to the very end. Warmly welcome to visit us!
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product,attaching your name brand.
Production
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 1 Year warranty.
* Engineers available to service machinery overseas.
Packing & Delivery
