Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH
-
diameter:
-
822mm
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
-
Type:
-
helicopter block
-
Material:
-
aluminium alloy
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CH
-
diameter:
-
822mm
Product Description
Specification
|
Rated load
|
60kN
|
|
Sheave size
|
822×710×110mm
|
|
Wire wheel groove
|
R37mm
|
|
Guide leg length
|
1000mm
|
|
Size of hanger plate
|
28×B28mm
|
|
- Model:
|
SH3Z822C
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ

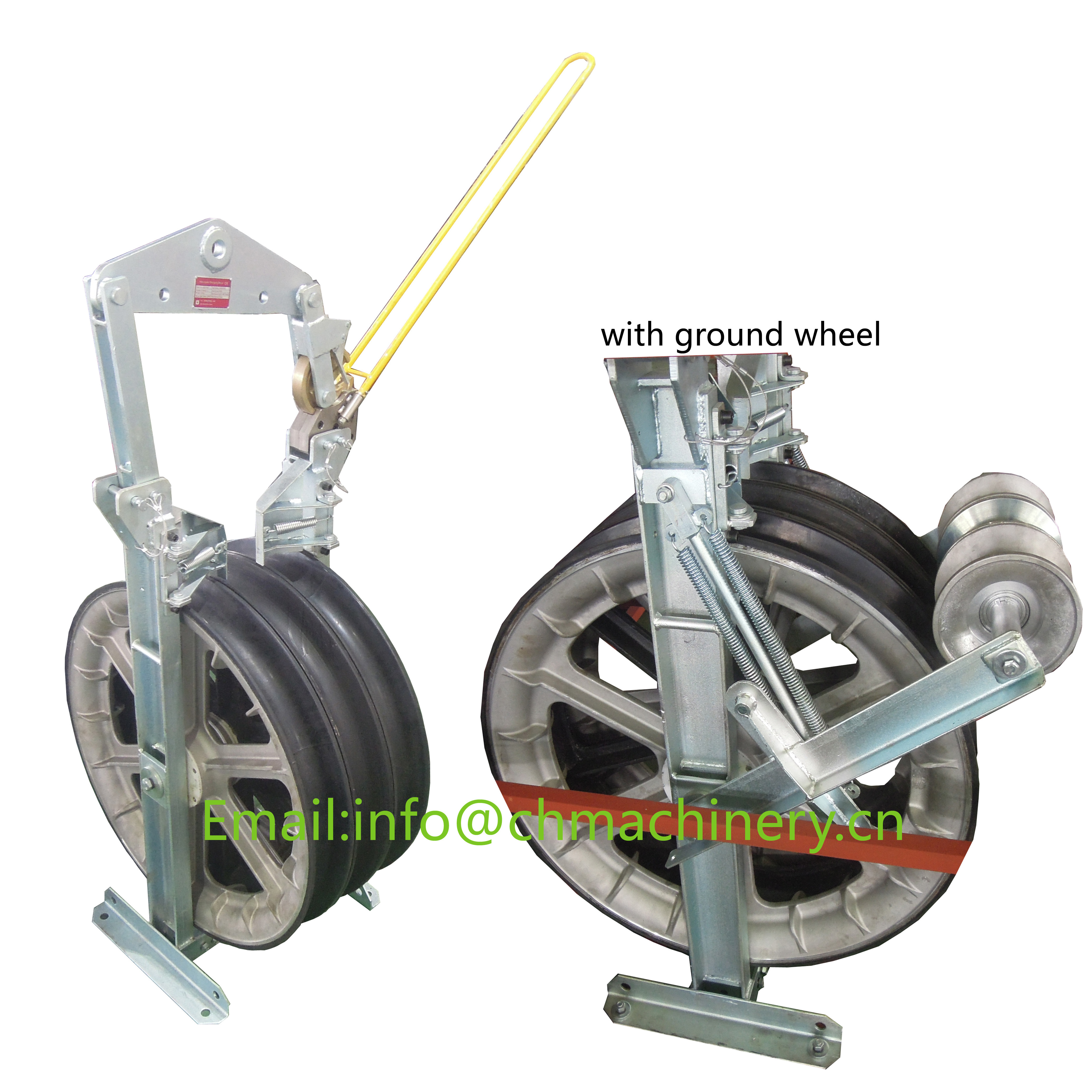

Aerial helicopter three aluminium alloy Sheave Stringing pulley blocks Wire rope cable hanging 822mm Large Diameter Conductor Power Transmission Line
with ground wheel
Helicopter aluminous Stringing Blocks
It is suitable to string many kinds of overhead conductors on tangent structures. Compression sleeves, swivel connectors, and
pulling rope connectors can pass through the groove. The sheaves are made of aluminum alloy
Helicopter aluminous Stringing Blocks
It is suitable to string many kinds of overhead conductors on tangent structures. Compression sleeves, swivel connectors, and
pulling rope connectors can pass through the groove. The sheaves are made of aluminum alloy
Specification
To include the following
* Model:SH3Z822C
* 28’’=711mm=822 series
* Sheave Dimension :822mm (OD) x 710(ID) x 110mm(W)
* Suitable to handle maximum 35mm(ACSR630) Conductor
* Working Load 60KN
* Breaking Load 180KN
* Design for helicopter application frame. Easy Dismantle of Helicopter attachment for Transportation
* Equipped with special pilot wire entering bronze wheel system to allow maximum 20mm (rated load 60KN) swedged steel cable into
block.
* Total three independent sheaves
* Sheave material for conductor block : neoprene lined A356 grade aluminum alloy + Heat treating
* Center sheave material for Steel guide line: Steel sheave, No neoprene lined
* All Sheave will be mounted on Industrial strength SKF 98% efficiency bearings
* Frame is made of Industrial standard Galvanized steel.
* Each pulley need to have a serial number and name tagged: O.J. Industries, Inc.
* Owner’s manual
* The aluminum pulleys and fabricated frames do not need to be painted. The steel pulleys need to be painted with lead free
black primer
* Make Steel frame for each block as transport protect
* Model:SH3Z822C
* 28’’=711mm=822 series
* Sheave Dimension :822mm (OD) x 710(ID) x 110mm(W)
* Suitable to handle maximum 35mm(ACSR630) Conductor
* Working Load 60KN
* Breaking Load 180KN
* Design for helicopter application frame. Easy Dismantle of Helicopter attachment for Transportation
* Equipped with special pilot wire entering bronze wheel system to allow maximum 20mm (rated load 60KN) swedged steel cable into
block.
* Total three independent sheaves
* Sheave material for conductor block : neoprene lined A356 grade aluminum alloy + Heat treating
* Center sheave material for Steel guide line: Steel sheave, No neoprene lined
* All Sheave will be mounted on Industrial strength SKF 98% efficiency bearings
* Frame is made of Industrial standard Galvanized steel.
* Each pulley need to have a serial number and name tagged: O.J. Industries, Inc.
* Owner’s manual
* The aluminum pulleys and fabricated frames do not need to be painted. The steel pulleys need to be painted with lead free
black primer
* Make Steel frame for each block as transport protect
