Henan Lima Feed Machinery Manufacture CO.,LTD is professional feed pellet making machine supplier since 1998. Focus on
aquatic/animal/pet feed pellet machine equipment, feed production line and customized feed mill projects solution. The capacity range of our feed pellet machine is 50kg/h ~30ton/h, the feed pellet size range is 0.3mm~15mm.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v 380v
-
Dimension(L*W*H):
-
77*34*68cm
-
Weight:
-
115 kg
-
Name:
-
Diesel engine fish feed pellet machine
-
Function:
-
Producing fish/dry pet Feeds
-
Color:
-
Clients' Requirement
-
floatinjg fish feed production:
-
150-220 KG/H
-
pellet size:
-
2-18mm
-
Size:
-
77*34*68cm
-
Packing:
-
Wooden Case
-
weight:
-
95/115kg
-
After Warranty Service:
-
Online support/oversee installation
-
Engine:
-
Diesel engine
Quick Details
-
Max. Capacity:
-
500 kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
LIMA
-
Voltage:
-
220v 380v
-
Dimension(L*W*H):
-
77*34*68cm
-
Weight:
-
115 kg
-
Name:
-
Diesel engine fish feed pellet machine
-
Function:
-
Producing fish/dry pet Feeds
-
Color:
-
Clients' Requirement
-
floatinjg fish feed production:
-
150-220 KG/H
-
pellet size:
-
2-18mm
-
Size:
-
77*34*68cm
-
Packing:
-
Wooden Case
-
weight:
-
95/115kg
-
After Warranty Service:
-
Online support/oversee installation
-
Engine:
-
Diesel engine
Factroy Show
Fish Feed Extruder Machine Introduction
A floating fish feed extruder is a machine used in aquaculture to produce high-quality feed pellets for fish and other aquatic animals. It is designed to produce feed pellets with various of size, shape, and nutritional content, which can improve the growth, health, and overall quality of the fish.
1. Diesel Engine Floating Fish Feed Extruder Application
As we all know, Diesel engine fish feed extruder machine using for aquaculture and animal feed pellets making. For example: floating fish feed(Catfish,Tropical fish)、shrimp feed, Crab feed, dog /cat pet feed,tortoises, frogs and so on. Just change feed machine mould,can make many different shape pellets. also can make different size from 0.4mm-15mm , can feed from baby fish to big fish.
2. Diesel Engine Floating Fish Feed Extruder Structure:
The main parts of fish feed extruder is screw and die.The process of extrusion involves cooking and compressing the raw materials under high pressure and temperature to create pellets with a desired density and texture. The feed extruder has a screw inside a barrel that rotates and pushes the raw materials forward while subjecting them to heat and pressure.

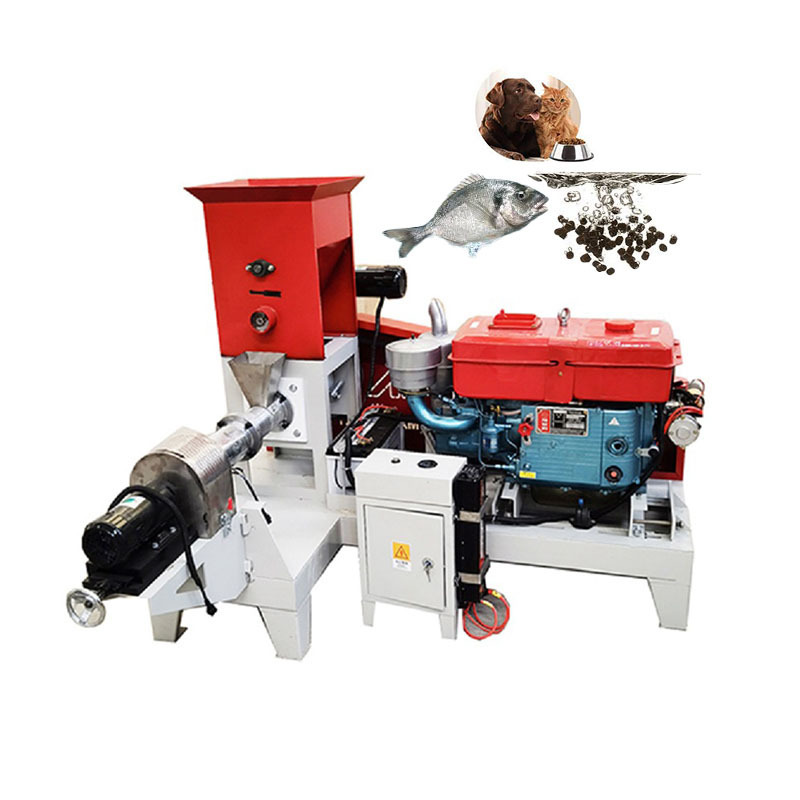

A diesel engine fish feed extruder is a type of fish feed extruder that is powered by a diesel engine instead of electricity. This type of extruder is particularly useful in areas where electricity supply may be unreliable or unavailable, such as rural or remote locations.
3. Diesel Engine Floating Fish Feed Extruder Speciafication
The basic principle of operation for a diesel engine fish feed extruder is similar to that of an electrically powered extruder. It still uses the process of extrusion to produce fish feed pellets from a mixture of ingredients. However, instead of being powered by an electric motor, the extruder is equipped with a diesel engine that drives the machinery
Lima Feed Machinery is professional feed machinery manufacturer, we produce machines of various models and specifications. The following are the model details of common electric fish feed machines. More model, contact our online service!
|
Model
|
Capacity
(kg/h) |
Main motor
(kw) |
Feeder motor
(kw) |
Screw diameter
(mm) |
Cutter motor
(kw) |
Machine size(mm)
|
Weight
(kg) |
|
401QD
|
40-60
|
5.5
|
0.4
|
Φ40
|
0.4
|
1400×1030×1200
|
240
|
|
401BS
|
40-60
|
5.5
|
0.4
|
Φ40
|
0.4
|
1400×1030×1200
|
280
|
|
401QS
|
40-60
|
5.5
|
0.37
|
Φ40
|
0.37
|
1400×1030×1200
|
280
|
|
501BS
|
80-100
|
11
|
0.4
|
Φ50
|
0.37
|
1470×1100×1250
|
340
|
|
501QS
|
80-100
|
11
|
0.37
|
Φ50
|
0.4
|
1470×1100×1250
|
340
|
|
601BS
|
160-180
|
15
|
0.4
|
Φ60
|
0.4
|
1470×1100×1250
|
450
|
|
601QS
|
160-180
|
15
|
0.37
|
Φ60
|
0.37
|
1470×1100×1250
|
450
|
|
701BS
|
180-200
|
18.5
|
0.4
|
Φ70
|
0.4
|
1650×1400×1300
|
480
|
|
701QS
|
180-200
|
18.5
|
0.37
|
Φ70
|
0.37
|
1650×1400×1300
|
480
|
|
801BS
|
200-300
|
22
|
0.6
|
Φ80
|
0.6
|
1800×1450×1300
|
760
|
|
801QS
|
200-300
|
22
|
0.55
|
Φ80
|
0.55
|
1800×1450×1300
|
760
|
|
901BS
|
380-400
|
37
|
0.6
|
Φ90
|
0.6
|
2100×1450×1350
|
950
|
|
901QS
|
380-400
|
37
|
0.55
|
Φ90
|
0.55
|
2100×1450×1350
|
950
|
|
120QS
|
500-600
|
55
|
1.5
|
Φ120
|
1.1
|
2440×2020×1650
|
1795
|
|
135QS
|
750-800
|
75
|
1.5
|
Φ135
|
2.2
|
2470×2060×1650
|
2264
|
Formula&Raw Material&Feed Pellets
1.Feed Formula for Different Stage Fish
Fish in different growth stages require different nutrients, and the formula of fish feed is also different. Here are the formulas of fish feed in different growth stages
|
Raw materials
|
Small fish formula
( Protein content:34-36% ) |
Medium fish formula
( Protein content:30% ) |
Medium fish formula
( Protein content:30% ) |
|
Corn powder
|
30%
|
30%
|
35%
|
|
Fish powder
|
20%
|
15%
|
15%
|
|
Rice bran
|
5%
|
10%
|
10%
|
|
Soya bean meal
|
30%
|
25%
|
20%
|
|
Bone powder
|
2%
|
2%
|
2%
|
|
Wheat bran powder
|
13%
|
18%
|
18%
|
|
Water
|
25%
|
25%
|
25%
|
2. Raw Materials Reference
The feed ingredients typically include fish meal, soybean meal, corn, wheat, and other additives, such as vitamins and minerals.
3. Floating Fish Feed Pellets Show
Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the water.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Customized Feed Size&Shape
One fish feed machine, various feed size&shapes choose!
1.The size of feed pellets is 1~15mm for selection. Install different sizes of die to produce feed pellets of corresponding sizes and shapes.
2.If you also want to use it to produce pet food, replace the corresponding die and the corresponding feed
formula,done!
formula,done!
Finished fish feed pellets
1. Scope of application: floating&sinking fish feed pellets
2. Finished feed pellets are full and smooth, not easy to break
3.It can be trial produced according to the customer's feed formula before shipping
3.It can be trial produced according to the customer's feed formula before shipping
Types of Fish Feed Machine
Electric Engine Fish Feed Machine
A Electric Engine Fish Feed Machine is powered by electric engines, The electric engine powers the various components of the machine, such as the mixing blades, pelletizing mechanisms.
Electric Engine Fish Feed Machine are designed to have multiple functions, including mixing different types of ingredients such as fish meal, grains, vitamins, and minerals, as well as shaping the mixed ingredients into pellets or other forms suitable for feeding fish.
Diesel Engine Fish Feed Machine
A Diesel Engine Fish Feed Machine is a type of machine that is used to produce fish feed for fish farming or aquaculture
operations. As the name suggests, this feed machine is powered by a diesel engine, which drives the various components of the machine to produce fish feed.The diesel engine fish feed machine is suitable for use in areas where electricity supply is limited or unreliable. It is a rugged and durable machine that can operate in harsh environments and produce high-quality fish feed efficiently and cost-effectively. Fish farmers and aquaculture operators who operate in remote areas or off-grid locations often
prefer diesel engine fish feed machines for their reliability and convenience.
operations. As the name suggests, this feed machine is powered by a diesel engine, which drives the various components of the machine to produce fish feed.The diesel engine fish feed machine is suitable for use in areas where electricity supply is limited or unreliable. It is a rugged and durable machine that can operate in harsh environments and produce high-quality fish feed efficiently and cost-effectively. Fish farmers and aquaculture operators who operate in remote areas or off-grid locations often
prefer diesel engine fish feed machines for their reliability and convenience.
Wet Way Fish Feed Extruder
Wet fish feed extruder is a kind of fish feed machinery that needs steam to operate. It is designed for the production of
high-quality fish feed and pet feed with a high fat content and is often used in large-scale industrial fish feed production. A steam boiler is an important part of an industrial fish feed machine as it generates the steam needed to operate the extruder.
Steam is produced by heating water in a boiler to generate high-pressure steam, which is then used to drive the extruder. The Steam Boiler Industrial Fish Feed Machine is capable of producing high-quality fish feed with good texture, high nutritional value and good water stability. It is suitable for the production of feed for various fish species such as tilapia, catfish, trout and carp. It is also suitable for producing pet food such as cats and dogs. This type of fish feed machine is typically used in large-scale industrial fish feed production where large batches and consistent production are required.
high-quality fish feed and pet feed with a high fat content and is often used in large-scale industrial fish feed production. A steam boiler is an important part of an industrial fish feed machine as it generates the steam needed to operate the extruder.
Steam is produced by heating water in a boiler to generate high-pressure steam, which is then used to drive the extruder. The Steam Boiler Industrial Fish Feed Machine is capable of producing high-quality fish feed with good texture, high nutritional value and good water stability. It is suitable for the production of feed for various fish species such as tilapia, catfish, trout and carp. It is also suitable for producing pet food such as cats and dogs. This type of fish feed machine is typically used in large-scale industrial fish feed production where large batches and consistent production are required.
Two Screw Fish Feed Extruder
Twin Screws: Two screws work together in the extruder to mix, knead, cook, and shape the fish feed ingredients. High Production
Capacity: The twin screw extruder has a high production capacity, producing large quantities of fish feed in a short amount of time. Easy Operation and Maintenance: The extruder is easy to operate and maintain, with simple controls and easy access for cleaning and maintenance. Energy Efficient: The twin screw fish feed extruder is energy efficient, using less energy to produce a large volume of fish feed compared to other types of fish feed machines. Overall, the Two Screw Fish Feed Extruder is a versatile and efficient machine that is capable of producing high-quality fish feed for fish farming and aquaculture operations.
Capacity: The twin screw extruder has a high production capacity, producing large quantities of fish feed in a short amount of time. Easy Operation and Maintenance: The extruder is easy to operate and maintain, with simple controls and easy access for cleaning and maintenance. Energy Efficient: The twin screw fish feed extruder is energy efficient, using less energy to produce a large volume of fish feed compared to other types of fish feed machines. Overall, the Two Screw Fish Feed Extruder is a versatile and efficient machine that is capable of producing high-quality fish feed for fish farming and aquaculture operations.
Factory Machine Display
About Us
Lima Feed Machinery
Exhibition
Till now , Lima Feed Machine equipments are widely used in feed pellet making fields of the world. Lima feed machinery is a reliable suppliers for Nigeria,Kenya,Tanzania customers and other countries such as Europe, North America, South America, Southeast Asia, and other regions and countries, and we are growing as a well-renowned aquatic feed equipment supplier worldwide.The market expansion of our feed machine to many regions and countries such as Europe, North America, South America,Southeast Asia, and other regions and countries.
