Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Other, Intel H610
-
Brand Name:
-
Qotom, OEM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
gaming pc motherboard
-
CPU:
-
Intel Atom C3758R Denverton Processor
-
Memory:
-
DDR4 2133MHz SDRAM 64GB max
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Desktop
-
Form Factor:
-
Mini-ITX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Other, Intel H610
-
Brand Name:
-
Qotom, OEM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
gaming pc motherboard
-
CPU:
-
Intel Atom C3758R Denverton Processor
-
Memory:
-
DDR4 2133MHz SDRAM 64GB max

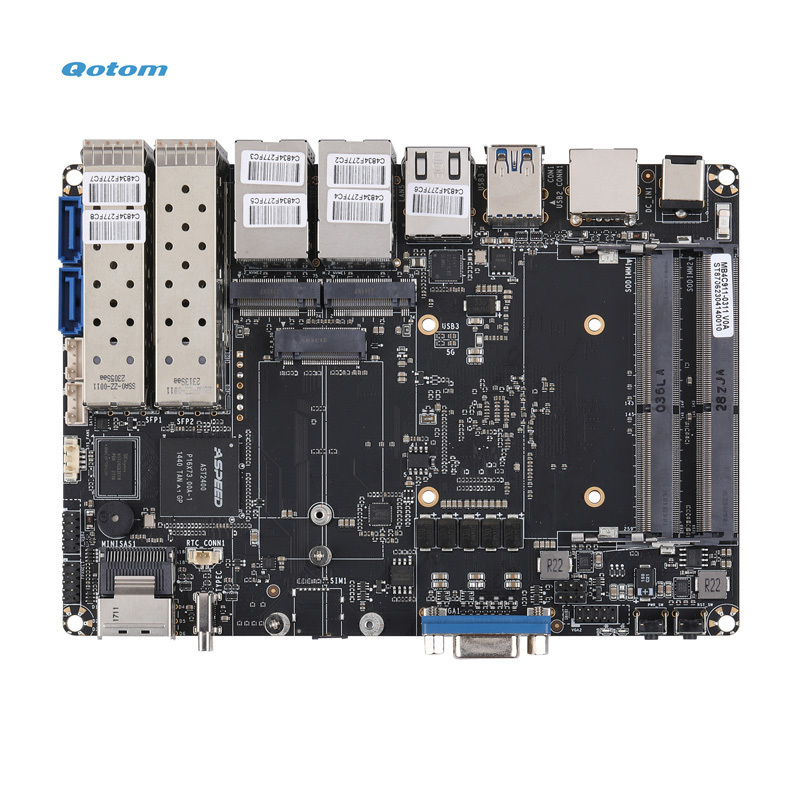

| Processor System | Dimension | 165 x 115mm |
| CPU |
Intel Denverton Processor Default Atom C3758R Processor, 26W |
|
| Core Number | 8 | |
| Max. Speed | 2.4Ghz | |
| L2 Cache | 16M | |
| Chipset | By CPU | |
| BIOS | UEFI | |
| Expansion Slot | M.2 | 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2) |
| M.2 | 1 x M.2 for 4G/5G (B key, Type: 3042/3052) | |
| Memory | Technology | DDR4 2400Mhz SDRAM |
| Max. | 64GB | |
| Socket | 2 x SO-DIMM | |
| Graphics | VGA | 1 |
| Ethernet | Interface | 100/1000/2500Mbps |
| Controller | 5 x Intel I225-V/I226-V 2.5 Gigabit LAN | |
| Connector | 5 x RJ-45 | |
| Interface | 1000Mbps/10Gbps | |
| Controller | 4 x 10G | |
| Connector | 4 x SFP+ | |
| Audio | Controller | NO |
| SATA | Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
|
Rear I/O |
DC-IN | 1 |
| Serial Port | 1 x RS-232 (RJ-45) | |
| USB | 1 x USB 3.0, 1 x USB 2.0 | |
| Ethernet | 5 | |
| SFP+ | 4 x 10G SFP+ | |
| Front I/0 | Power Button | 1 x Power Button, 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED | |
| VGA | 1 | |
| SIM Cark Slot | 1 | |
| Type C | 1 x Type C (USB 3.0) | |
| Mini SAS | 1 x Mini SAS (SFF8087) | |
| Internal Connector | TPM | 1 (Option) |
| VGA Header | 1, 2 x 5Pin, Pitch 2.0mm | |
| SATA | 2, SATA 3.0 (6.0Gb/S) | |
| SATA PWR Connector | 2, 1 x 4Pin, Pitch PH2.0mm | |
| SIM Slot | 1 | |
| AutoStart Jumper | 0 | |
| Clear CMOS Jumper | 0 | |
| USB Header | 1, 2 x 5Pin, Pitch 2.0mm (Option) | |
| Front Panel Header | 1, 2x5Pin, pitch 2.0mm | |
| Power Header | 1, 1 x 2Pin, Pitch 5.0mm (Option) | |
| Watchdog Timer | Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min | |
| Power Requirement | Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | Operating Temperature | 0-50 ℃ |
| Accessories | Accessories | Cable for HDD |
