Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 6000
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Model Number:
-
XK7121
-
Table Travel (mm):
-
400X220350
-
Voltage:
-
220V/380V/440V/415V
-
Dimension(L*W*H):
-
820x780x1060
-
Weight (KG):
-
150
-
Max. Table Load(kg):
-
280 kg
-
Product name:
-
mini cnc milling machine
-
X/Y/Z axis servo motor:
-
0.75/0.75/1
-
Table size(L*W):
-
660x210mm
-
System:
-
GSK/SIEMENS/FANUC
-
Distance from spindle to table:
-
45~400
-
Spindle taper:
-
BT30
-
Table travel:
-
400x220x350
-
Max. load of table:
-
200kg
-
Spindle motor:
-
1.5kw
-
spindle speed:
-
6000rpm
Quick Details
-
Table Travel (X) (mm):
-
400 mm
-
Table Travel (Y) (mm):
-
220 mm
-
Table Travel (Z) (mm):
-
350 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 6000
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNI-TECH
-
Model Number:
-
XK7121
-
Table Travel (mm):
-
400X220350
-
Voltage:
-
220V/380V/440V/415V
-
Dimension(L*W*H):
-
820x780x1060
-
Weight (KG):
-
150
-
Max. Table Load(kg):
-
280 kg
-
Product name:
-
mini cnc milling machine
-
X/Y/Z axis servo motor:
-
0.75/0.75/1
-
Table size(L*W):
-
660x210mm
-
System:
-
GSK/SIEMENS/FANUC
-
Distance from spindle to table:
-
45~400
-
Spindle taper:
-
BT30
-
Table travel:
-
400x220x350
-
Max. load of table:
-
200kg
-
Spindle motor:
-
1.5kw
-
spindle speed:
-
6000rpm
China mini 3 axis 4 axis metal vertical cnc milling machine price for sale
|
MODEL |
Unit |
XK7121 |
|
Table travel (X,Y,Z) |
mm |
400x220x350 |
|
Table size |
mm |
660x210 |
|
T-slot (No./Width/Distance) |
mm |
3/14/63 |
|
Max. load of table |
kg |
200 |
|
Distance from spindle nose to table surface |
mm |
45~400 |
|
Distance from spindle axis to column guideway |
mm |
260 |
|
Rapid feed speed (X,Y,Z) |
m/min |
6 |
|
Feed speed |
mm/min |
2.5~2000 |
|
Taper of spindle |
|
BT30/R8 |
|
Spindle speed |
rpm |
6000 |
|
Spindle motor power |
KW |
1.5 |
|
X/Y/Z Feed motor |
kw |
0.75/0.75/1 |
|
Positioning accuracy |
mm |
0.02 |
|
Repeat positioning accuracy |
mm |
0.01 |
|
Overall dimension(LxWxH) |
mm |
820x780x1060/ 1300x1130x1750 |
|
Weight |
kg |
150/200 |

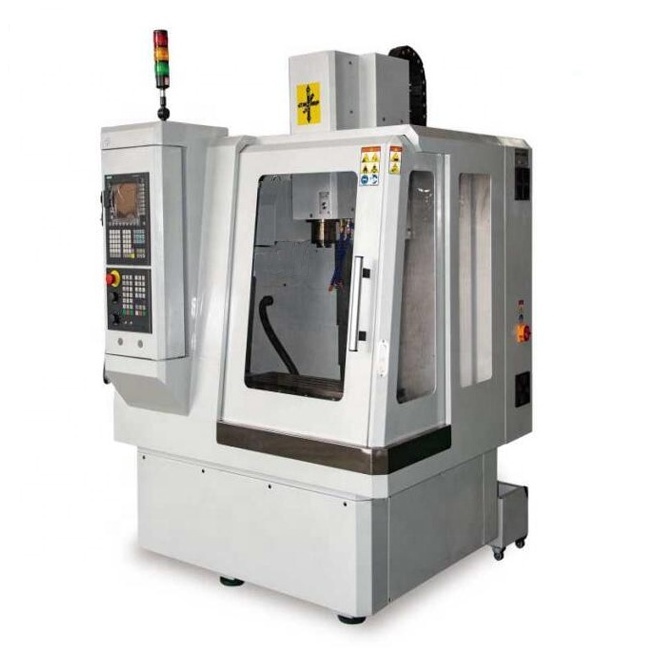

mini cnc milling machine more photos:
If you are interested in our mini cnc milling machine, pls contact me
whatsapp: +8615263282652
skype: haubiao.kitty
