Quick Details
-
Power Source:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
ID13-1050
-
Weight:
-
2.6Kg
-
Brand Name:
-
MAXTOL or OEM
-
Dimensions:
-
--
-
Rated Input Power:
-
1050W
-
Rated Voltage:
-
110-240V
-
Application:
-
steel/wood/concrete
-
Frequency:
-
50/60Hz
-
Rated Torque:
-
60N.m
-
No-Load Speed:
-
0-1100/0-2800r/min
-
Max. Drilling Diameter:
-
steel: 13mm /concrete:16mm/wood:40mm
-
COLOR:
-
Blue
-
Certification:
-
CE, EMC, ROHS
Quick Details
-
Warranty:
-
1 year
-
Voltage:
-
110-240V
-
Drill Type:
-
Impact Drill
-
Power Source:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
ID13-1050
-
Weight:
-
2.6Kg
-
Brand Name:
-
MAXTOL or OEM
-
Dimensions:
-
--
-
Rated Input Power:
-
1050W
-
Rated Voltage:
-
110-240V
-
Application:
-
steel/wood/concrete
-
Frequency:
-
50/60Hz
-
Rated Torque:
-
60N.m
-
No-Load Speed:
-
0-1100/0-2800r/min
-
Max. Drilling Diameter:
-
steel: 13mm /concrete:16mm/wood:40mm
-
COLOR:
-
Blue
-
Certification:
-
CE, EMC, ROHS
Product Description
Product Application

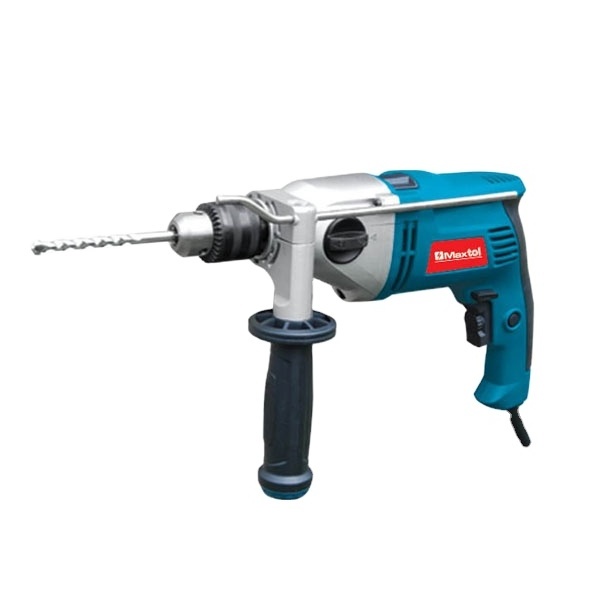

T he b est selling model in China & Asia market for light duty use.
|
TECHINICAL SPECIFICATION
|
|
|
|
|||
|
Product name
|
|
Impact drill
|
|
|||
|
Model no.
|
|
ID13-1050
|
|
|||
|
Rated Voltage
|
|
220-230V
|
|
|||
|
Rate Frequency
|
|
50/60Hz
|
|
|||
|
Input Power
|
|
1050W
|
|
|||
|
No-load speed
|
|
0-1100/0-2800rpm
|
|
|||
|
Chuck size
|
|
13mm
|
|
|||
|
N.weight
|
|
2.8Kg
|
|
|||
|
Packing
|
|
color box
|
|
|||
|
Accessories
|
|
Side handle 1pc
Chuck key 1pc
Extra carbon brushes 1 set
Manual 1pc
Warrant ee card 1pc
|
|
|||
Main Features
1-For industry purpose use. FFU very good.
2- Professional motor with 220celsz degree copper wire,Hr commutator&DW470/DW600 lamination steel.
3- 20CrMnTi Gears more than 500 hours life time.
4- Heavy duty gear box and housing body.
5- Peacock chuck
Detailed Images
Rotor
220 celzs degree copper wire
Lamination steel: DW470 BAO'STEEL
HR commutator
PAG66-GF30 heavy strong nylon fan
Dust-proof processed
Double insulated shaft 40Cr
High quality high temperature insulating lacqure
Stator
220 celzs degree copper wire
Lamination steel: DW470 BAO'STEEL
Dust-proof processed
Lamination steel: DW470 BAO'STEEL
Dust-proof processed
Gear
Pinion gear: 20CrMnTi
Main gear:40Cr
The gear seat &bearing seat r well designed
for professional use.
-High quality commutator
-Strong carbon brush holder for durable use
Bearings
-High quality Z2 group bearing for professional use
.
-With rubber bearing seat
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
33(L) * 8.1 (W) * 25.5 (D)
|
|
|
Weight
|
3.0kg
|
|
|
Packaging Details
|
Color box printed
|
|
|
Packaging
|
|
|
|
Size
|
51 (L) * 36(W) *27 (D)
|
|
|
Weight
|
15/16
|
|
|
Packaging Details
|
The normal package is carton box.
We can also use customers's designed carton box or Color print box. 20' GP: 3500PCS; 40'GP: 7000PCS; 40'HQ:7000PCS |
|
Certifications
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer and we are also doing trading &sourcing of power tools products
Q: Do you provide samples?
A: Yes, we provide paid samples.
Q: What is your terms of payment?
A: Payment<=3000USD, 100% T/T in advance.
Payment>=3000USD, 30%T/T in advance, 70%T/T before shipment.
If you have another questions, pleasefeel free to contact us.
Q:What is MOQ for purchasing?
A: we offer 20pcs of trial order under our brand. And we do OEM brand order MOQ 300pcs each model
.
Q:What is our warrantee term?
A: We usually offer 1 year warrantee for our professional &industry range of power tools for malfuntion
problem or parts quality problem. We supply F.O.C spare parts or call back defect tools.
