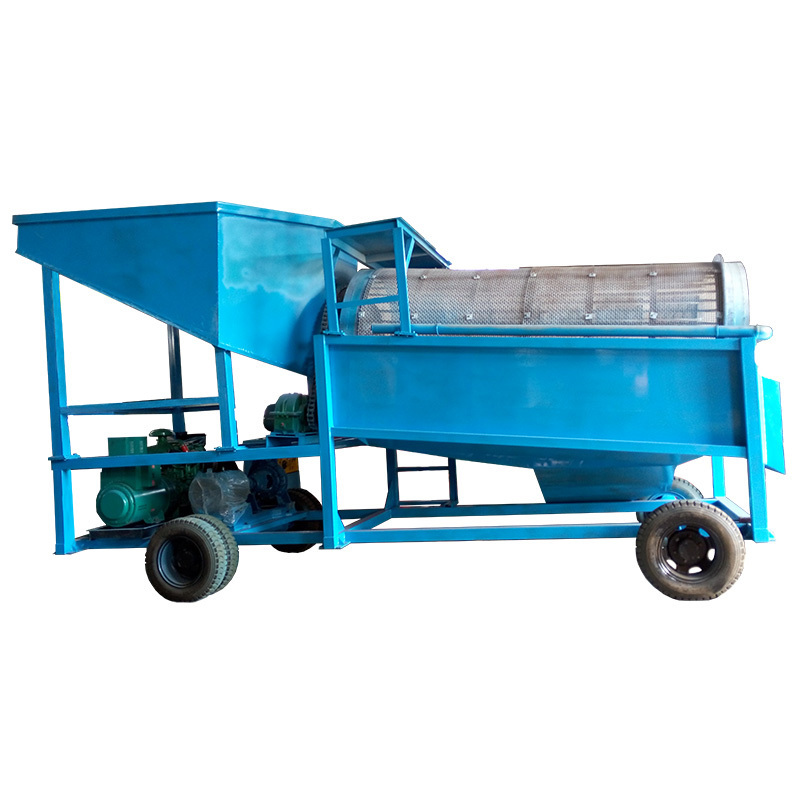

Small gold trommel drum wash/separate plant for diamond

Product Application

The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.Our trommel screens are constructed of high quality material,designed for high performance, high production rates, lower operating costs and lower maintenance.This material is then passed on to the downstream process equipment
which can be in various forms such as centrifugal concentrator, spirals, jigs etc.

Main Features

1. Configured for economical & efficient classification, Screening and grading
2. Heavy duty trommel drum with lifters at the front to facilitate material break up
3. Screen replaceable for different mesh sizes
4. Multiple screen size
5. Easily changed screen plates
6. Largest processing capacity in the industry
7. Unique screen design, result in higher capacities, longer screen life and no material clogging
8. Heavy duty feed hopper and extension
9. Discharge chute
10. Gear drive mechanism
11. Variable speed drive mechanism

When dressing placer gold, cleaning and sizing of wet, sticky and troublesome materials are very important in refining gold. Furthermore, as the mining site can not fix on one site, we must move from one site to another for finding a more profitable mining site. In this case, a mobile trommel screen will solve the transportation and make you mining effective.

Main Features

Our trommel screen is made of manganese steel which is excellent in abrasion resist and anti jam design. It can deal with kinds of alluvial ore include placer gold, coal, aluminum, zinc and so on. People also use it for sand, stone, vegetable and sugarcane washing.

Main parts

The trommel screen mainly consist of motor,reducer,drum units,racks,ring of clamp,black block gine,discharge hole,
feed port,polyproplyene board, screen body etc.inclination of drum equipment ,motor is connected by reducer&the
drum unit,the drive drum rotate around its axis.
