Quick Details
Quick Details
-
Weight (KG):
-
0.05, 0.5
-
Place of Origin:
-
Zhejiang, China
Products Description
|
Product Name:
|

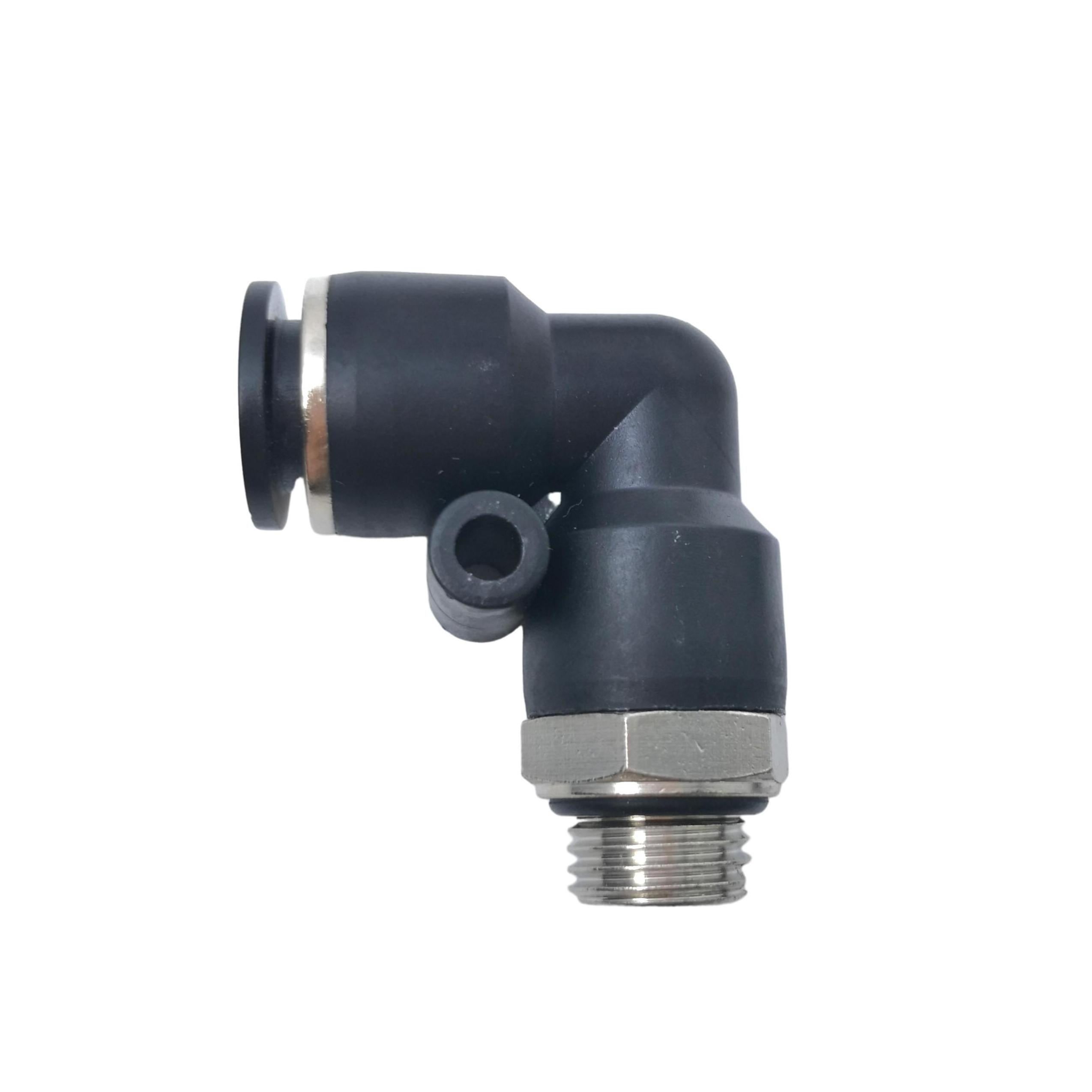

PL Pneumatic Quick Fittings
|
|
Material:
|
Nickel-plated brass, Polyamide (PA 66)
|
|
Working Pressure:
|
0 - 12 bar
|
|
Operating Temperature:
|
+1°C to +60°C water, -20°C to +75°C air
|
|
Fluid Admitted:
|
Air, Vaccum
|
|
Application:
|
Polyamide (PA), Polyurethane (PU), Polyethylene (PE) cables
|
|
Color:
|
Black
|
INSTRUCTIONS:
1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.
ADVANTAGES IN OUR COMPANY:
1. Varies Types And Varies Sizes
2. High Quality High Strength Plastic, High Pressure Resistance, Not Easy to Buckle.Fine Surface Treatment, Long Service Life.
Characteristics:
✔
Nickel plated highest quality Brass for maximum performance and protection.
✔
Specially designed for Polyamide (PA), Polyurethane (PU) and Polyethylene (PE) tube connection.
✔
Quick and easy installation and removal, fittings can be reused multiple times.
✔
Available in BSPT, BSPP, NPT, UNF, SAE and ISO thread types.
✔
BSPP thread standard equipped with an O-ring.
✔
NPT and BSPT threads are PTFE coated, no additional sealant is needed.
✔
Our threads are thicker and heavier than most of our competitors.
✔
Fittings are extensively tested under vibration for leaks at 10kg/cm2 (140 psi).
✔
Specially design inner seal is capable to perform at temperature of up to 75°C.
✔
Hardened Stainless Steel Lock Claw provides extended lifetime and performance.
✔
Customized release sleeve color: black, blue, red, grey, orange, green.
Plug-in connectors are used to connect pneumatic hoses in various types of pneumatic installations installed in workshop and industrial machines.
Automatic connection lock when the hose is inserted into the connector.
The release of the clamp occurs when the blue ring is pressed.
The fitting is easy and quick to use, can be assembled and disassembled repeatedly without losing tightness on the mechanical and pneumatic side.
OTHER PRODUCTS IN OUR COMPANY:
EXHIBITS IN OUR COMPANY
Why Choose Us
Customer Feedback
Packing & Delivery
Payment Options
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer.
2. Do you accept custom made orders?
OEM is acceptable. Any size and color can be customed depend on your requirement.
3. Can you print on the packaging?
We can print anything you want on the package.
4. What price terms do you offer?
Price terms depend on you, no matter EXW, FOB, CIF or C&F.
5. How is your aftersale service?
After receiving the goods, any problem such as quantity or quality, please contact us freely. Then we will return back the money or rework the goods for you.
If it is buyer reason make the goods have problem, we are free of the responsible.
If goods have problem, please contact us and take the pictures at the first time.
If it is buyer reason make the goods have problem, we are free of the responsible.
If goods have problem, please contact us and take the pictures at the first time.
6.
What is your delivery time?
Lead time:
15-20 days for bulk order.
Sample: 5-7 working days.
Sample: 5-7 working days.
Spot Goods:
3 working days.
