Quick Details
-
Dimension(L*W*H):
-
720*530*1300mm
-
Weight:
-
295
-
Power (kW):
-
3/4KW
-
Product name:
-
Portable Hydraulic Hose Crimping Machine Hydraulic Hose Crimper
-
Crimping range:
-
1/4"-2"(6-51mm)
-
Dies:
-
10 Die Sets
-
Max opening:
-
122mm
-
Scale accuracy:
-
0.02mm
-
After-sales Service Provided:
-
Online Support
-
Power(W):
-
3kw/4kw
-
System pressure:
-
32 Mpa
-
Certification:
-
CE ISO
-
Keywords:
-
portable hydraulic hose crimping machine
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HYT(HOYITE)
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
720*530*1300mm
-
Weight:
-
295
-
Power (kW):
-
3/4KW
-
Product name:
-
Portable Hydraulic Hose Crimping Machine Hydraulic Hose Crimper
-
Crimping range:
-
1/4"-2"(6-51mm)
-
Dies:
-
10 Die Sets
-
Max opening:
-
122mm
-
Scale accuracy:
-
0.02mm
-
After-sales Service Provided:
-
Online Support
-
Power(W):
-
3kw/4kw
-
System pressure:
-
32 Mpa
-
Certification:
-
CE ISO
-
Keywords:
-
portable hydraulic hose crimping machine
Product Details

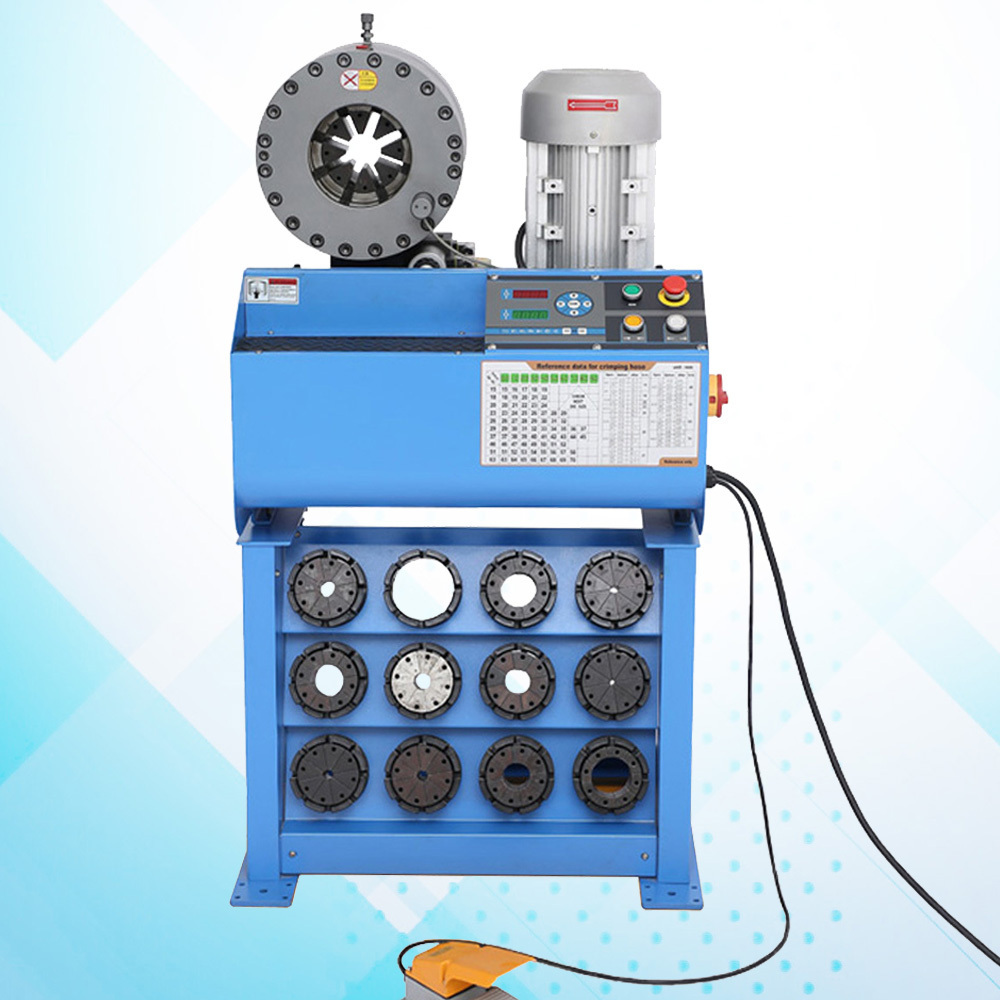

HYT-H91 Portable Hydraulic Hose Crimping Machine Hydraulic Hose Crimper
The CNC
high pressure
portable hydraulic hose crimping machine
comes with 10 sets dies, can crimp from hose dia. 1/4" to 2".
Powered by hydraulic pump driving, the
portable hydraulic hose crimping machine
working more stable.
The hoses can get better connecting quality, more quick swagging,higher speed, higher efficiency.
We provide OEM & ODM service:
Blue color is regular, you can customize color, dies, additional parts, or customize your brands.
The dies rack can be removed, you can customize your work style by separate the joint fittings.
The dies rack can be removed, you can customize your work style by separate the joint fittings.
Attention:
Please contact us to confirm the voltage and phase before your order.This will decide whether your machine can work or not.
Feature for high pressure hose crimping machine:
1. Using forge steel machine head, the material is durable than general steel head on the market;
2. Push-button control panel with pressure gauge can crimp the hose more accurately; 3. Humanized design, simple controls and
operation; 4. Equipped with a foot pedal, can free your hands when operate; 5. Can upgrade to quick change dies function,
convenient to remove and install dies.
2. Push-button control panel with pressure gauge can crimp the hose more accurately; 3. Humanized design, simple controls and
operation; 4. Equipped with a foot pedal, can free your hands when operate; 5. Can upgrade to quick change dies function,
convenient to remove and install dies.
|
Model
|
HYT-H91
|
|
Crimper range
|
1/4"-2" hose for up to 6 layer wire
|
|
Motor power
|
4KW/380V 3 phases, 3KW/220V 1phase or customize
|
|
Voltage
|
220V/380V/110V/450V or customize
|
|
Opening without dies
|
122mm
|
|
Sets of dies
|
10 sets
|
|
Dies Number
|
15, 19, 23, 26-length 60mm;
31, 36, 41, 47-length 70mm;
55, 63-length 80mm
|
|
Quick change dies tool
|
Optional
|
|
Dies rack
|
Yes, could install dies table regarding your requirement
|
|
System pressure
|
32MPa
|
|
Largest crimping pressure
|
500T
|
|
Optional accessories
|
Change tool/Metal handle
|
|
Volume
|
720(L)*530(W)*730(H)mm
|
|
Net weight
|
295KG(650lb)
|
|
Efficiency(reference)
|
400pcs/Hour
|
|
Package include
|
HYT-91H Machine, dies rack, 10 sets dies
|
