Quick Details
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Industrial Inspection, Measurement, 3D Scan, machine vision, AGV robot
-
Weight (KG):
-
0.05 KG
-
Wavelength:
-
405nm-980nm
-
Output Power:
-
≤25W
-
Laser Drive Modes:
-
Analog Modulation, Digital Modulation
-
Operating Temperature:
-
-10°C ~ 40℃
-
Storage Temperature:
-
-40°℃~80℃
-
Lens:
-
Optical Glass Lens
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Module
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Industrial Inspection, Measurement, 3D Scan, machine vision, AGV robot
-
Weight (KG):
-
0.05 KG
-
Wavelength:
-
405nm-980nm
-
Output Power:
-
≤25W
-
Laser Drive Modes:
-
Analog Modulation, Digital Modulation
-
Operating Temperature:
-
-10°C ~ 40℃
-
Storage Temperature:
-
-40°℃~80℃
-
Lens:
-
Optical Glass Lens
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept
|
Optical and Electrical Characteristics
|
|
|
||
|
Parameter
|
Specifications
|
Test Conditions
|
||
|
Wavelength
|
450nm-980nm (custom)
|
T
c
= 25°C
|
||
|
Output Power
|
1W-25W (custom)
|
Signal = 0-5.0V (Yellow wire)
|
||
|
Line Width (1/e2)
|
≤110μm (@380mm)
|
Factory fixed @ 380mm
|
||
|
|
≤130μm (@380±10mm)
|
|
||
|
|
≤150μm (@380±20mm)
|
|
||
|
Fan Angle
|
75° (uniform line)
|
/
|
||
|
Divergence
|
1.20mrad
|
T
c
= 25 ±3°C
|
||
|
Optics
|
Glass lens
|
/
|
||
|
Operating Current
|
<1800mA
|
T
c
= 25±3°C
|
||
|
Operating Voltage
|
12.0VDC
|
/
|
||
|
CDRH Class
|
Class II
|
/
|
||
|
MTBF
|
>8000 Hrs.
|
T
c
= 25±3°C
|
||

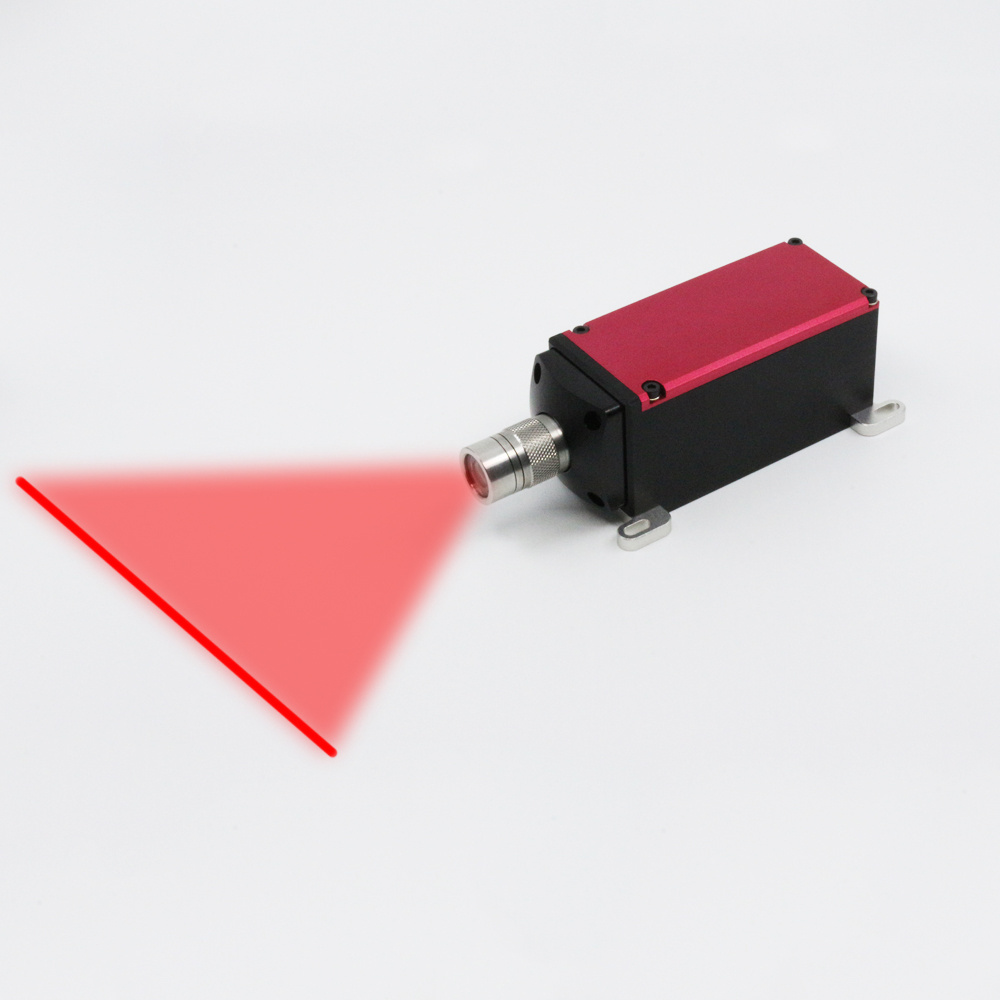

Large Power Uniform Line Laser, with focusable design, power up to 25W has the high power stability. This laser module can be widely used in high-precision industrial scanning and measurement fields. Working temperature range -10℃~+40℃, electrostatic and over heating protection, Large Power Uniform Line Laser is the best choice for harsh environmental applications.
Wavelength: 450nm, 520nm, 808nm, 940nm, 980nm (custom)
Output Power: 1W, 3W, 5W, 10W, 15W, 25W (custom)
