1) Model: BF-1904
2) Frequency range: 400-470MH
3) Battery capacity: 2000mAh
4) Battery voltage: 7.4V
5) Power: 10W
6) Operating temperature: -20℃~+60℃
7) Number of channels: 16CH
8) Working mode: same frequency simplex or different frequency simplex
9) Modulation: Frequency modulation (F3E)
10) Maximum frequency offset: ≤±5KHz
11) Afterwave radiation: <-60dB
12) Emission current: ≤2.6A
13) Frequency stability: ±2.5ppm
14) Receiving sensitivity: <0.15μV
15) Audio power: ≥400MW
16) Charging mode: base charging /USB charging
17) Standby current: 72mA (average current 36mA under power-saving condition)
- Product Details
- {{item.text}}
Quick Details
-
Walkie Talkie Type:
-
Handheld
-
Place of Origin:
-
Fujian,China
-
Model Number:
-
BF-1904
-
Dimensions:
-
241*60*38mm
-
Frequency Range:
-
UHF400-520MHz
-
Color:
-
Black
-
Warranty:
-
12 Months
-
Operating Voltage:
-
7.4V
-
Applications:
-
Outdoor
-
Feature:
-
Strong
-
Private Mold:
-
NO
Quick Details
-
Talk Range:
-
3-10KIM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16
-
Walkie Talkie Type:
-
Handheld
-
Place of Origin:
-
Fujian,China
-
Model Number:
-
BF-1904
-
Dimensions:
-
241*60*38mm
-
Frequency Range:
-
UHF400-520MHz
-
Color:
-
Black
-
Warranty:
-
12 Months
-
Operating Voltage:
-
7.4V
-
Applications:
-
Outdoor
-
Feature:
-
Strong
-
Private Mold:
-
NO
Products Description
|

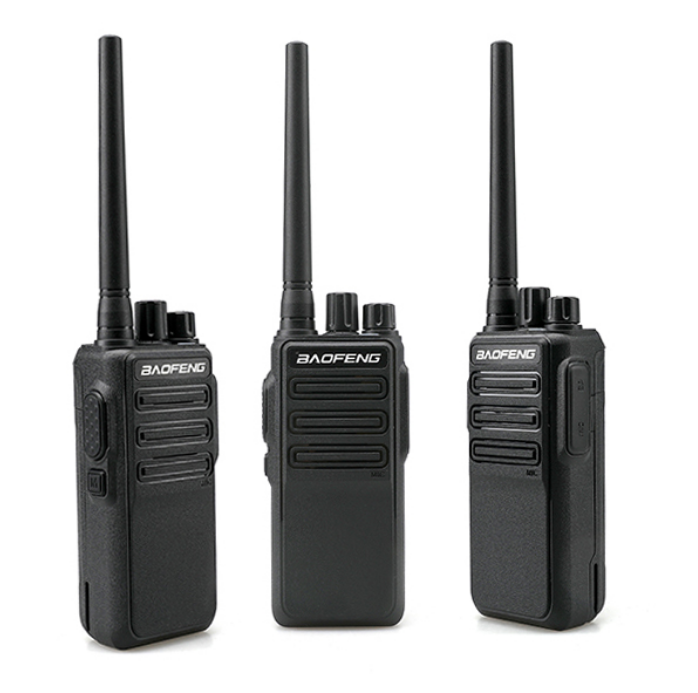

Model:BF-1904
|
|
|
|
|
||||
|
Frequency Range
|
UHF400-520MHz
|
|
|
|
||||
|
Storage Channel
|
16
|
|
|
|
||||
|
Rated Voltage
|
DC7.4V
|
|
|
|
||||
|
Step Frequency
|
12.5/25KHz
|
|
|
|
||||
|
Frequency Stability
|
±2.5ppm
|
|
|
|
||||
|
Modulation type
|
16KΦF3E/11KΦF3E
|
|
|
|
||||
|
Battery Capacity
|
3800mAh
|
|
|
|
||||
|
Maximum deviation(W/N)
|
≤5KHz/≤2.5KHz
|
|
|
|
||||
|
Antenna Impedance
|
50Ω
|
|
|
|
||||
|
Work temperature
|
-20℃~+50℃
|
|
|
|
||||
|
Work Mode
|
FM (F3E)
|
|
|
|
||||
|
Dimension
|
241*60*38mm
|
|
|
|
||||
|
Transmission current
|
≤1.7A
|
|
|
|
||||
characteristic
