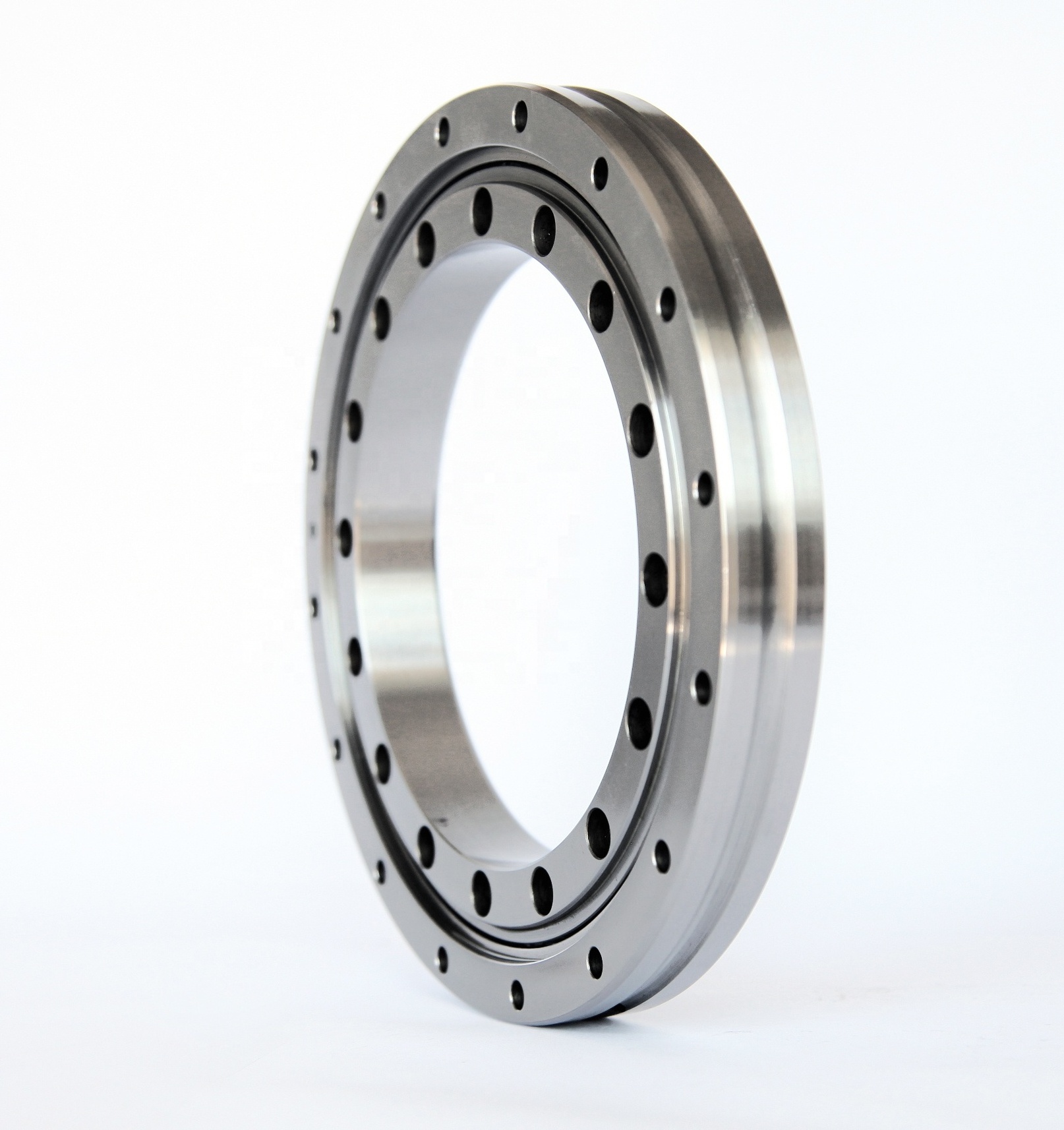

Small Slewing Ring None Geared Slewing Bearings 565x795x79mm VU 36 0680 China Manufacturer Wholes Sale Price Replacement Bearing

Small Slewing Ring None Geared Slewing Bearings 565x795x79mm VU 36 0680 China Manufacturer Wholes Sale Price Replacement Bearing

FOB Reference Price: Get Latest Price

≥100 Pieces

US $5666

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: AVE

Model Number:: VU 36 0680

Place of Origin:: Luoyang, China

Equivalent Model:: VU 36 0680, VU360680

Bore Diameter:: 565MM

Outer Diameter:: 795MM

Height:: 79MM

Customized Slew Bearing:: ODM & OEM & OBM Bearing

Bearing Structure:: Four Point Contact Bearing

Gearing:: None Gear

Mounting Hole:: with holes

Rotating Part:: inner ring and / or outer ring

Weight:: 120KG

Quick Details

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Robot Maker, Automation System Manufacturer, Robotic Device

Feature:: VU series small slewing bearing

Seals Type:: UU

Brand Name:: AVE

Model Number:: VU 36 0680

Place of Origin:: Luoyang, China

Equivalent Model:: VU 36 0680, VU360680

Bore Diameter:: 565MM

Outer Diameter:: 795MM

Height:: 79MM

Customized Slew Bearing:: ODM & OEM & OBM Bearing

Bearing Structure:: Four Point Contact Bearing

Gearing:: None Gear

Mounting Hole:: with holes

Rotating Part:: inner ring and / or outer ring

Weight:: 120KG

Four-point contact ball bearing is radial single row angular contact ball bearings with raceway that is designed to support axial loads in both directions. For a given axial load, a limited radial load can also be beared. Four-point contact bearings are single-row bearings, and therefore require significantly less space in an axial direction than double-row designs.The bearings comprise solid outer rings, split inner rings and ball and cage assemblies with brass or polyamide cages. The two-piece inner rings enable a large complement of balls to be accommodated. The inner ring halves are matched to the particular bearing and must not be interchanged with those of other bearings of the same size. The outer ring with the ball and cage assembly can be mounted separately from the two inner ring halves.

VA SERIES

External Gear Slewing Bearing

VI SERIES

Internal Gear Slewing Bearing

VU SERIES

None Gear Slewing Bearing

Remark: details structure drawing please contact supplier LISA LEE 008618137917388 or lyave@qq.com

Model No.	di (mm)	Da (mm)	H (mm)	Mass (kgs)
VA 140188 V	135	259.36	2 8	7 .5
VA 160235 N	171	318.6	41.5	1 3
VA 160302 N	238	384	5 2.5	1 4
VA 250309 N	2 35	408.4	6 6	29.5
VI 160288 N	216	340	39	1 2
VI 140326 V	250	382	59	18
VI 160420 N	332	486	39	2 3
VU 140179	124.5	234	35	7
VU 200220	138	302	46	16
VU 130225	200	290	24	5.4
VU 200260	191	329	46	15
VU 140325	270	380	35	12
VU 250380	275	485	55	44
VU 200405	336	474	46	25
VU 250433	344	522	55	41
VU 300574	468	680	68	82
VU 360680	565	795	79	120
