Quick Details
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10 ~+70
-
Max. Current:
-
10A
-
Certification:
-
CE CCC TUV
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TMAZTZ
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10 ~+70
-
Max. Current:
-
10A
-
Certification:
-
CE CCC TUV

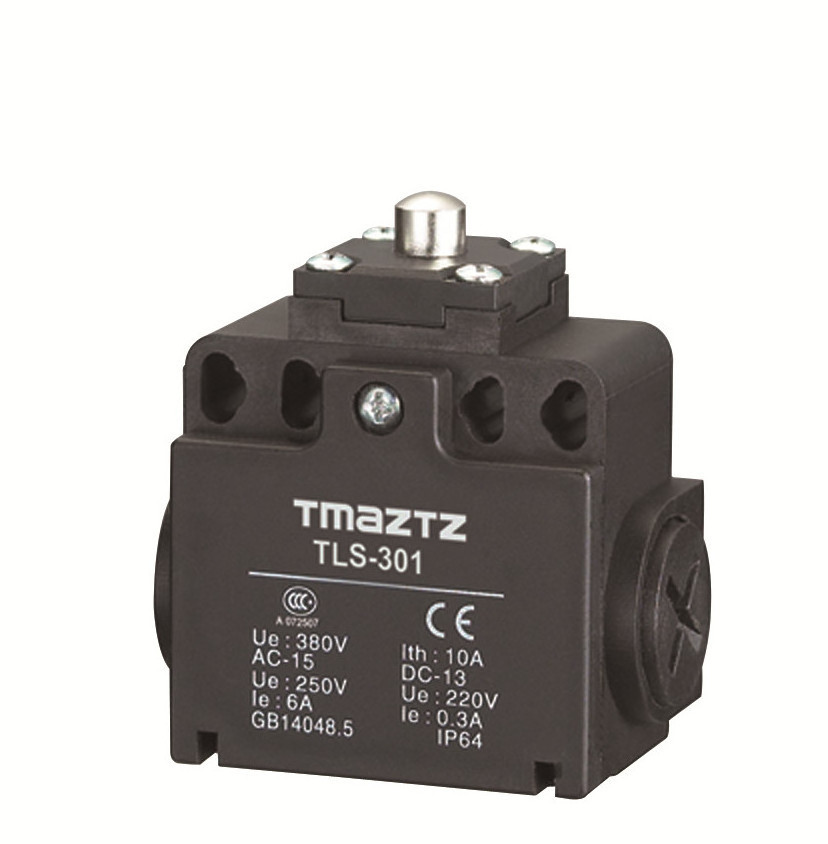

Product Show
Product Overviews
SWITCH FEATURES
| Model No. |
TLS-301 |
| Name | Limit switch |
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Electrical: 30 operations/minute |
| Contact resistance | 25mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
|
Dielectric strength |
1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts |
|
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable:1000m/Sec 2 ;Malfunction:300m/Sec 2 (about 30G'S) |
| Life |
Electrical: 500,000 operations above |
| Weight |
About 72-123g |
| Humidity | <95% RH |
| Degree of protection | IP65 |
