Quick Details
-
Model Number:
-
KCF14-85
-
Rated voltage:
-
1500VDC
-
Rated current:
-
32A
-
Applicable fuse link size:
-
10X85mm
-
Utilization category::
-
DC-20B
-
Wire range:
-
2.5-16mm2
-
Torque:
-
2...2.5Nm
-
Comply with:
-
IEC60269-6
-
Certificate:
-
CE,CB,TUV
Quick Details
-
Breaking Capacity:
-
Low
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONESTO
-
Model Number:
-
KCF14-85
-
Rated voltage:
-
1500VDC
-
Rated current:
-
32A
-
Applicable fuse link size:
-
10X85mm
-
Utilization category::
-
DC-20B
-
Wire range:
-
2.5-16mm2
-
Torque:
-
2...2.5Nm
-
Comply with:
-
IEC60269-6
-
Certificate:
-
CE,CB,TUV
1.【Stable performance】Use V0 level flame retardant material, Smooth surface and good insulation
2.【
Core replaceable
】
High frequency withstand voltage
3.【
Quality Assurance
】
Products have several international certifications
4.【Fast Installation】35mm Rail-mounted for easy installation and quick disassemb
ly

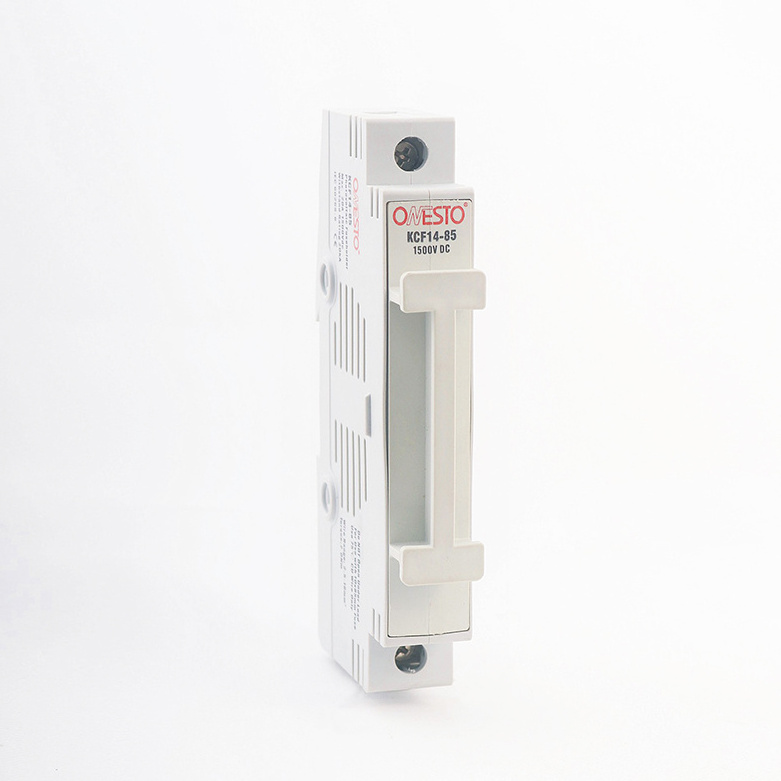

Mainly used in solar photovoltaic power generation DC sink box, the solar cell photovoltaic modules and inverter current feedback generated by the line overload and short circuit current to break, so as to protect the solar photovoltaic modules with, photovoltaic protection DC fuse block can also be used in any other DC circuit as an electrical component of the line overload and short circuit protection.
|
Rated voltage
|
1500V DC
|
|
Rated current
|
32A
|
|
Rated impulse withstand voltage
|
20kV
|
|
Utilization category
|
DC-20B or AC-20B
|
|
Wire range
|
2.5-16mm²
|
|
Torque
|
2...2.5Nm
|
|
Mounting
|
35mm symmntrical rail
|
|
Comply with
|
IEC60269-6
|
