Quick Details
-
Product Name:
-
Water Electromagnetic Flow Meter
-
Suitable tube caliber:
-
DN25~DN2600(below DN25 unstandard)
-
Suitable Medium:
-
Liquid with conductive ratio more than 5 μs/cm
-
Accuracy:
-
0.3%, 0.5%, 1.0%
-
Operation pressurer:
-
1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
-
Fluid temperature:
-
20C~80C, 80C~130C, 130C~180C according to liner material
-
Power supply:
-
220VAC± 10%, 50Hz± 1Hz, 24VDC± 10%
-
Power consumption:
-
≤8W
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Cowell
-
Model Number:
-
LD Series compact type
-
Product Name:
-
Water Electromagnetic Flow Meter
-
Suitable tube caliber:
-
DN25~DN2600(below DN25 unstandard)
-
Suitable Medium:
-
Liquid with conductive ratio more than 5 μs/cm
-
Accuracy:
-
0.3%, 0.5%, 1.0%
-
Operation pressurer:
-
1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
-
Fluid temperature:
-
20C~80C, 80C~130C, 130C~180C according to liner material
-
Power supply:
-
220VAC± 10%, 50Hz± 1Hz, 24VDC± 10%
-
Power consumption:
-
≤8W

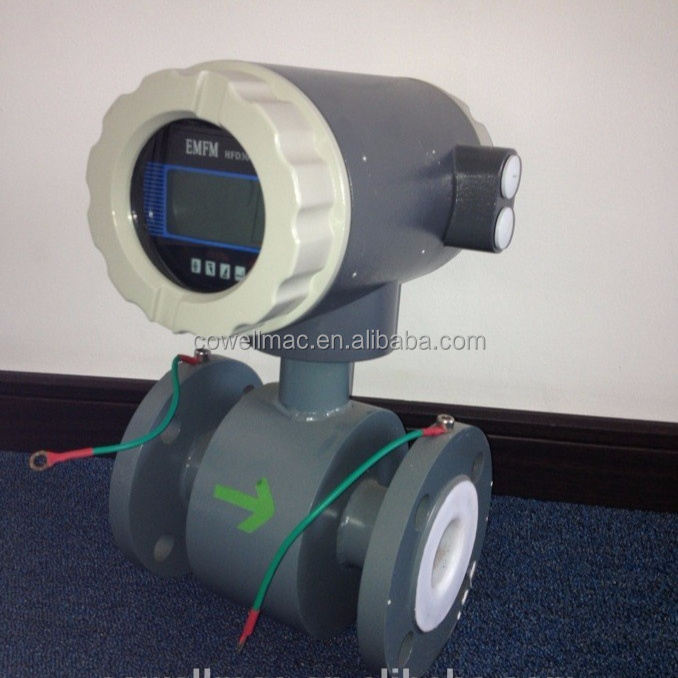

Water Electromagnetic Flow Meter
|
Characteristics
LD Series electromagnetic meter is a kind of electromagnetic induction type flow meter, which consists of sensor and intelligent signal conversion. it can measure the volume flow rate of all kinds of conducting liquids including acid, alkali, salt and strong corrosive liquids and pulp, mud, oars, sewage water and liquid with solid . It is mainly applicable to petrochemical, steel, electricity, metallurgy, textiles, food, paper and pharmaceutical industries and the environmental protection and water conservancy projects and other fields. |
Main Technical Parameter:
Electrode material: 316L(stainless steel), HC, HB, Ti, Ta
Suitable Medium: Liquid with conductive ratio more than 5 μs/cm
Measuring range: 0.1~10m/s (extendable to 15m/s)
Upper limit of span: 0.5~10m/s. 1~5m/s recommended
Accuracy class: 0.3, 0.5, 1.0
Output signal: 4~20mADC, load≤ 750Ω, 0~3kHz, 5V with source and changeable width.
Operation pressure: 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
Fluid temperature: 20C~80C, 80C~130C, 130C~180C according to liner material
Environmental temperature: sensor40~80º C. Transducer 15~50º C
Environmental humidity: ≤85%RH (at 20º C)
Cable outlet size: M20x1.5
Power supply: 220VAC± 10%, 50Hz± 1Hz, 24VDC± 10%
Power consumption: ≤8W
Protection ratings Combined type: IP65. Separate type: Sensor IP68, transducer IP65
Materials of liner: PTFE, soft rubber etc
Connection of flange: GB911988(DIN2051, BS4504)
Earthing material: 1Cr18Ni9Ti (stainless steel), HC, Ti, Ta, Cu
| Diameter(mm) | Flow Rate Measurement (m 3 /h) | Diameter(mm) | Flow Rate Measurement (m 3 /h) |
| φ15 | 0.06~6.36 | φ450 | 57.23~5722.65 |
| φ20 | 0.11~11.3 | φ500 | 70.65~7065.00 |
| φ25 | 0.18~17.66 | φ600 | 101.74~10173.6 |
| φ40 | 0.45~45.22 | φ700 | 138.47~13847.4 |
| φ50 | 0.71~70.65 | φ800 | 180.86~18086.4 |
| φ65 | 1.19~119.4 | φ900 | 228.91~22890.6 |
| φ80 | 1.81~180.86 | φ1000 | 406.94~40694.4 |
| φ100 | 2.83~282.60 | φ1200 | 553.90~55389.6 |
| φ150 | 6.36~635.85 | φ1600 | 723.46~72345.6 |
| φ200 | 11.3~1130.4 | φ1800 | 915.62~91562.4 |
| φ250 | 17.66~176.25. | φ2000 | 1130.4~113040.00 |
| φ300 | 25.43~2543.40 | φ2200 | 1367.78~136778.4 |
| φ350 | 34.62~3461.85 | φ2400 | 1627.78~162777.6 |
| φ400 | 45.22~4521.6 | φ2600 | 1910.38~191037.6 |
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
