Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QOTOM
-
Model Number:
-
Q790XL-S04
-
Video Memory:
-
none
-
Color:
-
Black
-
Type:
-
Barebone System
-
Graphics Card Type:
-
Integrated Card
-
Hard Disk:
-
SSD ( MSATA / SATA3.0)
-
Application:
-
Automation, Transportation, Surveillance, Digital signage, Healthcare
-
Intel Graphics:
-
Intel UHD Graphics
-
Dimension:
-
178 x 111 x 52mm
-
Product Name:
-
Mini Computer
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QOTOM
-
Model Number:
-
Q790XL-S04
-
Video Memory:
-
none
-
Color:
-
Black
-
Type:
-
Barebone System
-
Graphics Card Type:
-
Integrated Card
-
Hard Disk:
-
SSD ( MSATA / SATA3.0)
-
Application:
-
Automation, Transportation, Surveillance, Digital signage, Healthcare
-
Intel Graphics:
-
Intel UHD Graphics
-
Dimension:
-
178 x 111 x 52mm
-
Product Name:
-
Mini Computer
Product Description
|
Category
|
|
Descriptions
|
|
|
Model
|
No.
|

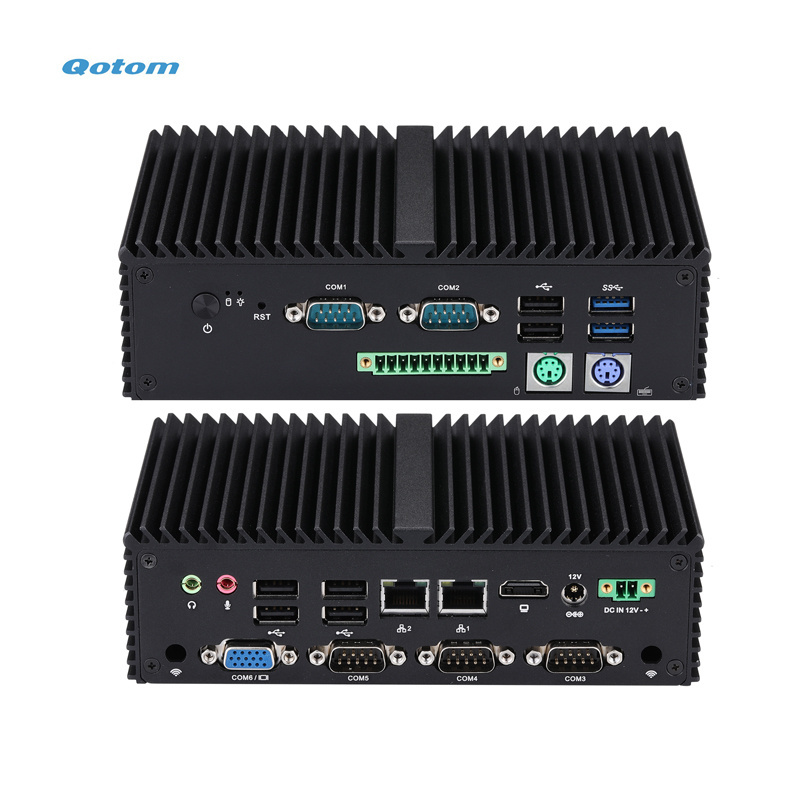

Q790XL-S04 Mini pc
|
|
|
Processor System |
CPU
|
Intel 12th Gen Core Elkhart Lake SOC Processor J6412 Quad Core 10W Processor
|
|
|
|
CPU TDP
|
10W
|
|
|
|
Memory
|
1 x DDR4 SO-DIMM Socket (Up to 16G)
|
|
|
|
Chipset
|
By CPU
|
|
|
|
Graphics
|
Intel UHD Graphics
|
|
|
|
Audio
|
Realtek HD Audio
|
|
|
|
Watch Dog
|
Yes
|
|
|
|
Power Button
|
1 x Power Button, 1 x Reset Button
|
|
|
|
GPIO
|
4 DIs/4DOs
|
|
|
|
PS/2
|
2
|
|
|
|
USB
|
2 x USB2.0, 2 x USB3.0
|
|
|
|
Serial
|
2 x RS232(COM1/2 can be set up as RS-485)
|
|
|
Rear I/O |
Power
|
1 x DC Jack
|
|
|
|
LAN
|
2 x Realtek Gigabit LAN
|
|
|
|
Display
|
1 x HD, 1 x VGA
|
|
|
|
Phoneix
|
1 x 2pin，4 x USB2.0
|
|
|
|
Serial
|
4 x RS232
|
|
|
|
Audio
|
1 x Mic-in, 1 x Line-out
|
|
|
Storage |
Type |
1 x mSATA
|
|
|
|
|
1 x SATA3.0
|
|
|
Expansion |
mSATA
|
1 x mSATA for SSD
|
|
|
|
M.2
|
1 x M.2 for 4G/5G (B key, Type: 3042/3052)
5G Defaults to PCIe Mode
USB 3.0 Mode Requires Customization
|
|
|
|
M.2
|
1 x M.2 for Wi-Fi (E key, 2230)
|
|
|
|
GPIO
|
1 x 2.0 Pitch Header
|
|
|
|
VGA
|
1 x 2.0 Pitch Header
|
|
|
|
COM
|
4 x 2.0 Pitch Header
|
|
|
|
SIM Card Slot
|
1
|
|
|
|
Clear COMS
|
1 x 2.54 Pitch Header
|
|
|
|
Automatically Boot
|
1 x 2.54 Pitch Header
|
|
|
|
Front Panel
|
1 x 2.0 Pitch Header
|
|
|
Power Requirement |
Power Adapter
|
12V3A
|
|
|
|
DC Jack
|
5.5mm, 2.5mm
|
|
|
Environmental |
Operating Temp
|
0°C~50°C
|
|
|
|
Non-Operating Temp
|
-20°C~80°C
|
|
|
|
Humidity
|
10%~90%
|
|
|
Mechanical |
Material
|
Aluminium Alloy
|
|
|
|
Dimension
|
178 x 111 x 53mm
|
|
|
|
Weight
|
0.85kg
|
|
|
|
Mounting
|
VESA Mounting Bracket
|
|
|
|
Packaging Dimension
|
261 x 218 x 75mm
|
|
|
|
Kensington Lock
|
No
|
|
|
|
Cooling Mode
|
Fanless Design
|
|
|
OS Support
|
Windows 10, Linux
|
|
|
Attention！！！
The price of this link does not include Wifi.
supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.
It will come with inactive Windows 10 Pro for test and you can reinstall OS by yourself. F11 key boot from USB Drive. Delete key enter BIOS.
If you prefer to other OS, or need Wifi, please leave a message.
Detailed Images
Fanless industrial mini PCs are compact computers designed for use in industrial settings that require a reliable, durable, and low-power computing solution. They offer a range of features that make them ideal for a variety of industrial applications, including:
Automation:
Fanless industrial mini PCs are often used in automation systems to control and monitor processes in factories and other manufacturing environments. They are designed to operate 24/7 and can withstand harsh environments, making them ideal for industrial automation.
Digital signage:
Fanless industrial mini PCs are also commonly used in digital signage applications. Their small size and low power consumption make them ideal for powering displays in public places, such as airports, malls, and train stations.
Transportation:
Fanless industrial mini PCs are often used in transportation applications, such as in-vehicle computing systems for trains, buses, and taxis. They are designed to operate in harsh environments, including extreme temperatures, vibrations, and shocks, making them ideal for use in transportation applications.
Surveillance:
Fanless industrial mini PCs are often used in surveillance applications, including video monitoring and analytics. They can be used to process large amounts of data in real-time, making them ideal for surveillance systems that require high processing power.
Healthcare:
Fanless industrial mini PCs are also used in healthcare applications, such as in hospitals and clinics. They are designed to be easy to clean and maintain, making them ideal for use in sterile environments.
Overall, fanless industrial mini PCs offer a reliable, durable, and low-power computing solution that can be used in a wide range of industrial applications.
