- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer
-
Dimension(L*W*H):
-
2000(L)*1000(W)*2100(H)mm
-
Weight:
-
500 KG
-
Product name:
-
4 heads liquid filling machine
-
Function:
-
Filling Capping Labeling
-
Keywords:
-
Automatic liquid filling machine
-
Filling speed:
-
16-24bottles/min
-
Filling range:
-
50-1000ml (Customized)
-
Filling nozzles number:
-
4 Heads
-
Gas consumption:
-
0.4-0.6Mpa
-
Working air pressure:
-
6-7kg/㎡
-
Machine weight:
-
500kg
-
Power:
-
220V, 50/60Hz, 1.5kw
Quick Details
-
Machinery Capacity:
-
16-24 bottles/min
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Beer, Other, Milk, Water, Juice, Beverage, Liquid
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer
-
Dimension(L*W*H):
-
2000(L)*1000(W)*2100(H)mm
-
Weight:
-
500 KG
-
Product name:
-
4 heads liquid filling machine
-
Function:
-
Filling Capping Labeling
-
Keywords:
-
Automatic liquid filling machine
-
Filling speed:
-
16-24bottles/min
-
Filling range:
-
50-1000ml (Customized)
-
Filling nozzles number:
-
4 Heads
-
Gas consumption:
-
0.4-0.6Mpa
-
Working air pressure:
-
6-7kg/㎡
-
Machine weight:
-
500kg
-
Power:
-
220V, 50/60Hz, 1.5kw

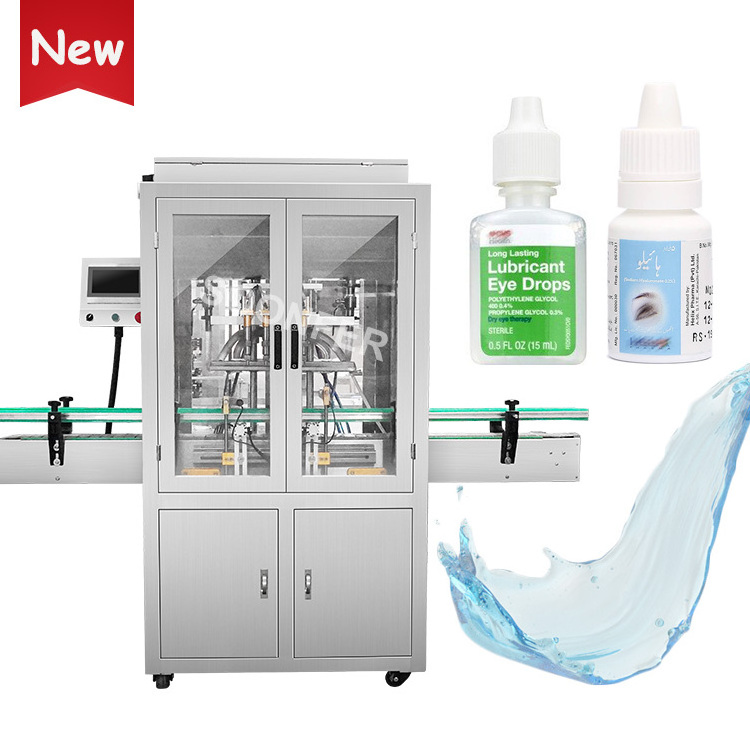

Fully automatic 10ml 15ml 30ml liquid eye drop small plastic bottle filling machine
This machine is suitable for filling liquid products such as food, daily necessities, agriculture, etc., such as soy sauce, edible oil, vinegar, fish sauce, honey, wine, coffee, milk tea, juice, shower gel, etc.
Main Features
1. It is suitable for filling containers of different specifications, and the filling specifications can be switched within a few minutes, the filling cycle is short, and the production capacity is high.
2. Users can choose the number of filling heads to determine the number of filling heads according to their own production capacity.
3. The electrical components of international brands are adopted, with low failure rate and reliable performance.
4. Setting parameters through the touch screen can display the production status, operation procedures, filling methods, etc., with simple operation and convenient maintenance.
5. The material contact part is made of 304# stainless steel, which has the advantages of strong wear resistance, good insulation and strong corrosion resistance, and meets GMP standards.
|
Model
|
SF-GSF4
|
SF-GSF8
|
SF-GSF12
|
|
Filling Range
|
50-1000ml
|
50-1000ml
|
50-1000ml
|
|
Filling Speed
|
16-24bottles/min
|
20-40bottles/min
|
40-60bottles/min
|
|
Meassurement Accuracy
|
±1%
|
±1%
|
±1%
|
|
Power
|
220V, 50/60Hz, 1.5kw
|
220V, 50/60Hz, 1.2kw
|
220V, 50/60Hz, 1.5kw
|
|
Working Air Pressure
|
6-7kg/㎡
|
6-7kg/㎡
|
6-7kg/㎡
|
|
Gas Consumption
|
0.4-0.6Mpa
|
0.5-0.8mpa
|
0.8-1mpa
|
|
Machine Weight
|
500kg
|
500kg
|
600kg
|
Bottle Sensor automatically detects bottles, no bottle will not be filled.
The parts in contact with materials are made of 304 stainless steel to ensure hygiene and safety.
The conveyor belt is adjusted by the hand wheel to accommodate bottles of different sizes.
The electrical components are selected from brand accessories suppliers, and the machine runs stably and reliably.
Foshan Soonfer Intelligent Equipment Co., Ltd. is located in the Machinery Industry Base of Foshan City, Guangdong Province, China. Its products sell well in domestic and foreign markets. The company integrates production and research and development, and is committed to providing customers with automated packaging solutions.
FAQ
Q1. How to find a machine suitable for my product?
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Before delivery, we will send you some pictures and videos to you for confirmation, and also you could arrange for quality
checking by yourself or third party inspection organization.
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
