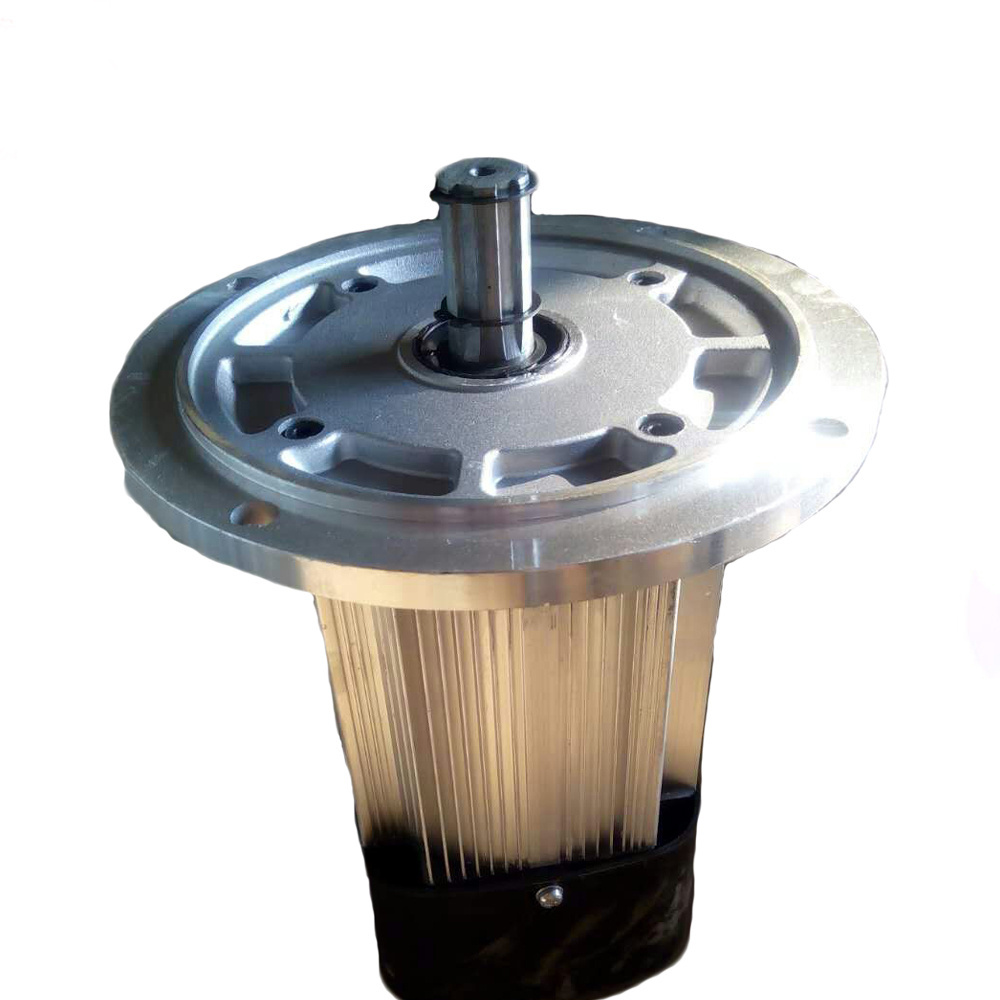

YSE 100L1-4 AC electric motor speed reducer

YSE 100L1-4 AC electric motor speed reducer

FOB Reference Price: Get Latest Price

≥1 Sets

US $110

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YSE100L1-4

Frequency:: 1500r/min

color:: customizable

Current:: 10A

Insulation class:: B/F/H

StallTorque:: 24N.m

Braking torque:: 3-20N.m

weight:: 42kg

protection class:: IP44

Scope of application:: Speed reducer

Rotor structure:: Solid rotor

Quick Details

AC Voltage:: 460 / 480 V

Place of Origin:: Henan, China

Brand Name:: Anlian

Model Number:: YSE100L1-4

Frequency:: 1500r/min

color:: customizable

Current:: 10A

Insulation class:: B/F/H

StallTorque:: 24N.m

Braking torque:: 3-20N.m

weight:: 42kg

protection class:: IP44

Scope of application:: Speed reducer

Rotor structure:: Solid rotor

Product description

Feature

Type ： YSE series soft-start motors

Usage ： Drywall panel hoist

Voltage ：220v/380v

Warranty ：12 month

Power Source ： Electric

Color ： Customised

Sling Type ： cable Application ： Hotels, Garment Shops, Building Material Shops, Machine and so on

Click on me for more information

technical parameter

type	power(kw)	torque(n.m)	current(A）	speed(r/min)	weight(kg)
YSE80-4	0.2	2	1.5	1200	12
YSE801-4	0.4	4	2.8	1200	15
YSE802-4	0.8	8	3.6	1200	18
YSE90S-4	1.1	12	6.2	1200	28
YSE90L-4	1.5	16	7.5	1200	30
YSE100L1-4	2.2	24	10	1200	42
YSE100L2-4	3.0	30	12	1200	45
YSE112M-4	4.0	40	17	1200	55
YSE132S-4	5.5	52	24	1200	80
YSE90S-6	0.5	8	4	800	18
YSE90L-6	0.8	12	5	800	28
YSE100L-6	1.5	23	8	800	42
YSE112M-6	2.2	33	11.5	800	51
YSE132S-6	3.0	46	16	800	81
YSE132M1-6	4.0	60	19	800	90

Product detail

Product application

Main product

Certification

Product packaging

Click on the image above for more information

FAQ

Q1: What is our factory product range? A:We are specialize in crane, electric motors, wire rope hoists, electric winches and concrete vibrators, etc. for many years. Q2:How about sample policy? A:Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don’t have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders. Q3: How to order? A: Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order: 1)About product: Quantity, Specification (span, lifting height, material, color and packing requirement and so on). 2) Delivery time required. 3) Shipping information: Company name, Address, Phone number, Destination seaport/airport. 4) Forwarder's contact details if there is any in China.
