Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher
-
Model Number:
-
RT16-M
-
Torque:
-
Rated 3.5Nm, Max 7Nm
-
Application:
-
AGV,intelligent robot,Logistics vehicle service robot
-
Tire Material:
-
Polyurethane
-
Wheel Diameter:
-
6.5 inch
-
Voltage:
-
24-48V DC
-
Output Power:
-
50-180W
-
Rated Torque:
-
3.5Nm
-
Max Torque:
-
7Nm
-
Rated Speed:
-
220 rpm
-
Max Speed:
-
400 rpm
-
Encoder:
-
1024 wires
Quick Details
-
Speed(RPM):
-
220rpm
-
Continuous Current(A):
-
2-8A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Reacher
-
Model Number:
-
RT16-M
-
Torque:
-
Rated 3.5Nm, Max 7Nm
-
Application:
-
AGV,intelligent robot,Logistics vehicle service robot
-
Tire Material:
-
Polyurethane
-
Wheel Diameter:
-
6.5 inch
-
Voltage:
-
24-48V DC
-
Output Power:
-
50-180W
-
Rated Torque:
-
3.5Nm
-
Max Torque:
-
7Nm
-
Rated Speed:
-
220 rpm
-
Max Speed:
-
400 rpm
-
Encoder:
-
1024 wires
Manufacturing Technique

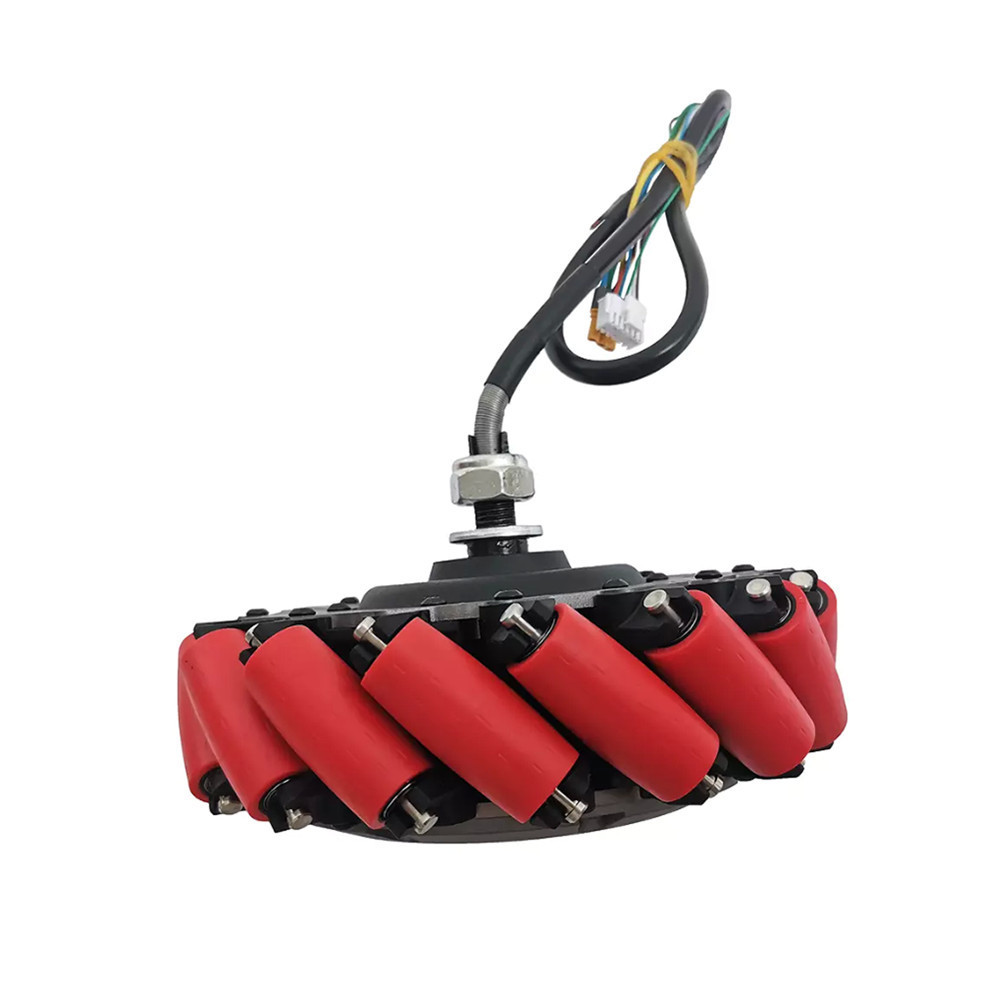

Mecanum Wheels! Astonishing Engineering Of Wheels
The Mecanum wheel is a conventional wheel with a series of rollers attached to its circumference. These rollers typically each have an axis of rotation at 45° to the plane of the wheel and at 45° to a line through the centre of the roller parallel to the axis of rotation of the wheel. By alternating wheels with left and right-handed rollers, in such a way that each wheel applies force roughly at right angles to the wheelbase diagonal the wheel is on, the vehicle is stable and can be made to move in any direction and turn by varying the speed and direction of rotation of each wheel.
The Mecanum wheel is a conventional wheel with a series of rollers attached to its circumference. These rollers typically each have an axis of rotation at 45° to the plane of the wheel and at 45° to a line through the centre of the roller parallel to the axis of rotation of the wheel. By alternating wheels with left and right-handed rollers, in such a way that each wheel applies force roughly at right angles to the wheelbase diagonal the wheel is on, the vehicle is stable and can be made to move in any direction and turn by varying the speed and direction of rotation of each wheel.
In-wheel motor Mecanum series products are specially designed for omnidirectional wheel train vehicles. They have the advantages of high load, various diameters, low maintenance cost and small overall size. Users can better choose wheel hubs with different diameters for development.
Product Description
Specification
|
Model No
|
RT16-M
|
|
Voltage (V DC)
|
DC24-48V
|
|
Output Power(w)
|
50-180W
|
|
Rated Torque (N.m)
|
3.5Nm
|
|
Max Torque (N.m)
|
7Nm
|
|
Rated Speed (RPM)
|
220RPM
|
|
Max Speed (RPM)
|
400RPM
|
|
Rated Phase Current
|
2-8A
|
|
Max Phase Current
|
16A
|
|
Encoder
|
1024wires
|
|
Shaft
|
Single
|
|
Wheel Diameter (mm)
|
154
|
|
Working Width (mm)
|
41
|
|
Whole Width (mm)
|
86
|
|
Suggest Load per motor
|
30kg
|
|
Protection Level
|
IP65
|
|
Brake Type
|
Electric Brake
|
|
Poles Pairs
|
10
|
|
Adatped Driver
|
Two in One Servo Driver
|
|
Gross Weight (KG)
|
3.5kg
|
Packing & Delivery
FAQ
Q:Do you have other electric hub motor?
Q:Could you provide the motor drawing since I need it ?
A:Yes,there is professional engineer do the design,research and we can supply the drawing no problem.
Q:How long can I get the goods after payment?
A:For standard product,within 5 working days after your payment.
Customize product, depending on the change.
Q:What is your after-sales services?
A:1.Free maintenance within 12 months guarantee, lifetime consultant
2. Professional solutions in installation and
maintaince
.
Q:How much is the freight and what is the mode of transportation?
A:The freight Charge is based on the weight of order and your local city post code.
For single order,the goods will be delivered by DHL,UPS,FedEx and so on. Please inform us advance if you have special packing and shipment requirement.
Q:Do you have other electric hub motor?
A:1.Many kinds of wheel motors could be supplied,such as brushless gearless hub motor,geared hub motor,spoke motor, ATV motor,and so on.
2.The hub motor sizes are various, such as 4",5",6", 8",9",10", 12",13",14.5", 15" etc.
3. Customize motors as customers' special requirements is our special service.
