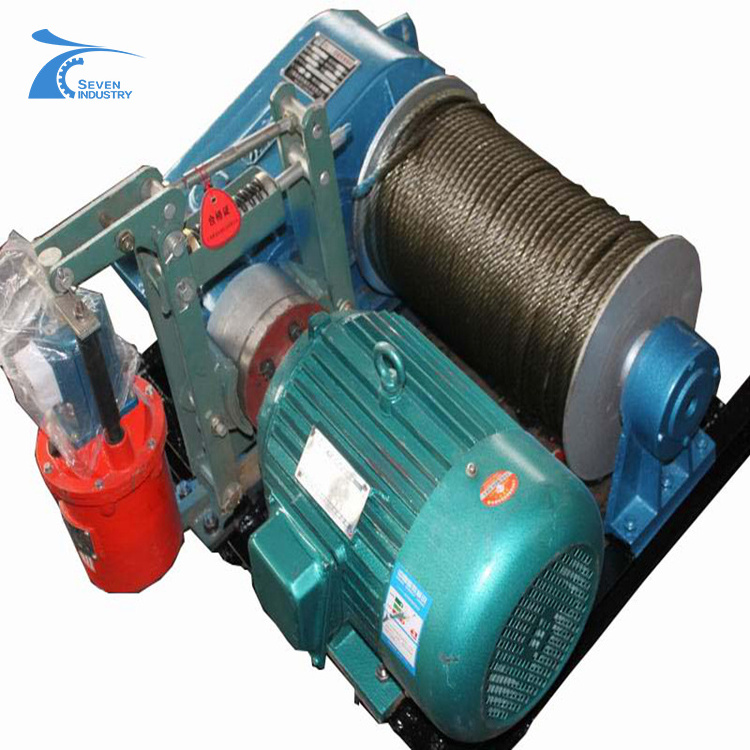

1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch
1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch

1t 2t 3t 5t 7t 10t Longline Fishing Electric Reel Winch

FOB Reference Price: Get Latest Price
≥1 Sets
US $499
≥2 Sets
US $450
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 years
Place of Origin:
Henan, China
Brand Name:
SEVENCRANE
Model Number:
W-017
Capacity:
1t 2t 3t 5t 7t 10t
Product name:
Construction Winch
Color:
Customer Requirement
Usage:
Cable Pulling Machine
Brake:
Electricomagnetic
Motor:
China Top Brand Motor
Control Method:
Pendent Control
Package:
Wooden Box
Certification:
CE,ISO

Quick Details

Power:
710W, 1400W, 1200W
Application:
BOAT
Voltage:
3 phase, Three Phase AC 230/380/415/440/480v 50/60Hz
Warranty:
1 years
Place of Origin:
Henan, China
Brand Name:
SEVENCRANE
Model Number:
W-017
Capacity:
1t 2t 3t 5t 7t 10t
Product name:
Construction Winch
Color:
Customer Requirement
Usage:
Cable Pulling Machine
Brake:
Electricomagnetic
Motor:
China Top Brand Motor
Control Method:
Pendent Control
Package:
Wooden Box
Certification:
CE,ISO
A Electric Winch is a light and small lifting device that uses a reel to wind a steel wire rope or chain to lift or haul heavy
objects. The electric winch can lift materials vertically, and can also pull heavy objects horizontally or tilted. There are two
types of winches: manual winches and electric winches, and now most of them are electric winches.
Model
pull capacity（KN）
speed of rope
(m/min)
rope of capacity
(m)
rope
diameter
(mm)
motor
pow(kw)
dimension(mm)
wight
(kg)
JM1
10
15
80
ø9
Y112M-6
2.2
740*690*490
270
JM1.6
16
16
115
ø12.5
Y113M-6
5.5
940*900*570
500
JM2
20
16
100
ø13
Y160M-6
7.5
940*900*570
550
JM3.2
32
9.5
150
ø15.5
YZR160M-6
7.5
1420*1160*910
1100
JM5
50
9.5
190
ø21.5
YZR160L-6
11
1620*1260*948
1800
JM8
80
8
250
ø26
YZR180L-5
15
2180*1460*850
2900
JM10
100
8
200
ø30
YZR200L-6
22
2280*1500*950
3800
JM12.5
125
10
300
ø34
YZR225M-6
30
2280*2200*1550
5000
JM16
160
10
500
ø37
YZR250M-8
37
3750*2400*1850
8800
JM20
200
10
600
ø43
YZR280M-8
45
3950*2560*1950
9900
JM25
250
9
700
ø48
YZR280M-8
55
4350*2800*2030
13500
JM32
320
9
700
ø52
YZR315S-8
75
4500*2850*2100
20000
JM50
500
8
800
ø60
YZR315S-8
90
4930*3050*2250
38000
We can design and manufacture all kinds of non-standard product according to your requirement
Electric winch
1. Rated Traction Force: 0.5~100t.
2. Working Speed: 10m/min to 30m/min.
3. Capacity of Drum(rope length): up to 2000m 4. Power:2.2kw-160kw

1. The winch is a kind of mechanical equipment that is driven by a motor to drive a drum with a steel wire rope through a
transmission device to realize load movement.
2. The structure of the electric winch is composed of a motor, a coupling, a brake, a gear box and a hoist drum, and is installed
on the frame together.
Working Principle
The working principle of the winches is to convert electrical energy into mechanical energy through a motor, that is, the motor's
rotor rotates and outputs, and then drives the hoist drum to rotate after being decelerated by the V-belt, shaft, and gear. The
drum winds the wire rope and passes through the pulley block to make the crane hook lift or drop the load, convert the mechanical
energy into mechanical work, and complete the vertical transportation, loading and unloading of heavy objects.
The winch can lift materials vertically, and can also pull heavy objects tilted or horizontally. There are two types of winches: manual winches and electric winches, and now most of them are electric winches.
The winch is a kind of mechanical equipment that is driven by a motor to drive a drum with a steel wire rope through a transmission device to realize load movement. It is mainly used in construction and installation engineering.
Winch is a relatively simple hoisting or traction machine composed of a motor, a transmission mechanism and a drum or sprocket. The motor drives the wire rope drum through the reducer, retracts and unwind the wire rope, and changes the direction through different pulleys.

JM Type Electric Winch

Loading capacity：0.5-200T
Wire rope capacity：20-3600m
Working speed：5-20m/min
Single speed or dual speed

JK Type Electric Winch

Loading capacity：0.5-60T
Wire rope capacity：20-500m
Working speed：20-35m/min
Single speed or dual speed
Power supply：220-690V, 50-60Hz, 3phase

L Type Electric Winch

Loading capacity：1-10T
Wire rope capacity：20-500m
Working speed：20-36m/min
Power supply：220-690V, 50-60Hz, 3phase

Straight Line Electric Winch

Loading capacity：0.75-2T
Wire rope capacity：20-500m
Working speed：20-35m/min
Power supply：220-690V, 50-60Hz, 3phase .
Double Beam Overhead Crane
Double Beam Gantry Crane
Boat
The electrical winch can be used alone or as a component in cranes, road construction and mine hoisting machinery. It is widely used because of its simple operation, large rope winding volume and convenient displacement. It is mainly used for material lifting or flat towing in construction, water conservancy projects, forestry, mines, docks, etc.
