(1) Stainless steel conveyor belt;
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
sure
-
Dimension(L*W*H):
-
6600mm*4000mm*2900mm
-
Weight:
-
3000 KG
-
Product name:
-

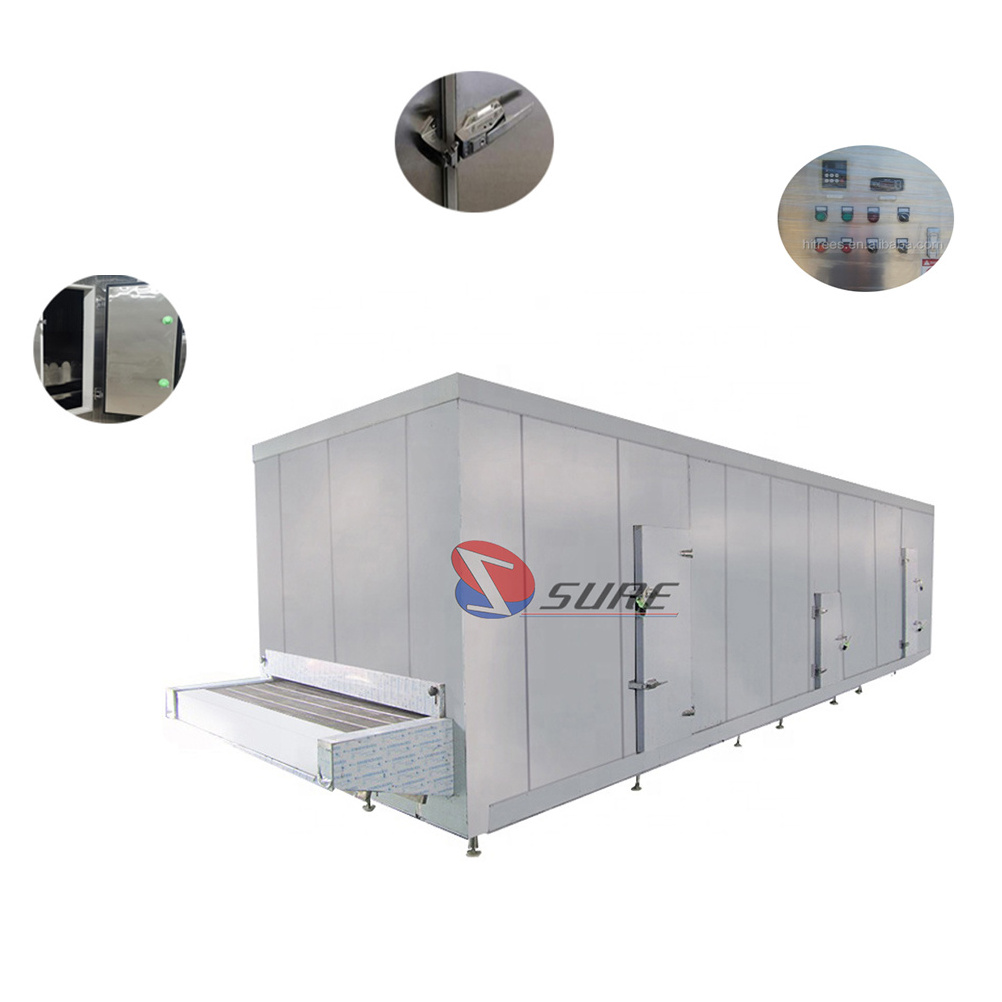

IQF Tunnel Quick Freezer
-
Application:
-
Food Quick Frozen Machine
-
Capacity:
-
500kg/h
-
Products:
-
Fruits and vegetables
-
Inner Air Temperature:
-
-40±2 degree Celsius
-
Belt Width:
-
1100mm
-
Refrigerant:
-
R22
-
Condensing Type:
-
Evaporative cooled
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
Quick Details
-
Voltage:
-
220 380v
-
Power:
-
85 KW
-
Cooling Capacity:
-
100-2000 kg per hour
-
Place of Origin:
-
China
-
Brand Name:
-
sure
-
Dimension(L*W*H):
-
6600mm*4000mm*2900mm
-
Weight:
-
3000 KG
-
Product name:
-
IQF Tunnel Quick Freezer
-
Application:
-
Food Quick Frozen Machine
-
Capacity:
-
500kg/h
-
Products:
-
Fruits and vegetables
-
Inner Air Temperature:
-
-40±2 degree Celsius
-
Belt Width:
-
1100mm
-
Refrigerant:
-
R22
-
Condensing Type:
-
Evaporative cooled
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ce
Product Description
Flash Freezer Machine Shock Freezing Tunnel
Product Application
Tunnel freezers : Low cost, suitable for freezing fish and meat, thick and heavy foods. The way of blowing is the from the top
Spiral freezers
:Lower energy consumption,small floor occupying,retention time is much flexible,the adjusted range is large.The way of blowing is from the edgeways
Fluidized IFQ Tunnel Freezers
: Suitable for freezing small and light materials, such as shrimp, strawberries, beans and granular materials. The way of blowing is from the bottom.
|
Model:TF Series
|
Output
|
Installed Power
|
Refrigeration Consumption
|
Dimension L*W*H
|
Belt Width
|
|
TF100
|
100kg/h
|
2.25kw
|
15kw
|
7.4*1.5*2.2m
|
1000m
|
|
TF150
|
150kg/h
|
2.95kw
|
21kw
|
8.0*1.8*2.3m
|
1300mm
|
|
TF200
|
200kg/h
|
4.5kw
|
30kw
|
10.2*1.8*2.3m
|
1300mm
|
|
TF300
|
300kg/h
|
6.5kw
|
43.5kw
|
11.2*2.3*2.3m
|
1800mm
|
|
TF500
|
500kg/h
|
10.3kw
|
75kw
|
13.5*3.0*2.5m
|
2500mm
|
|
TF1000
|
1000kg/h
|
19.8kw
|
142kw
|
22.9*3.0*2.5m
|
2500mm
|
|
TF1500
|
1500kg/h
|
28.6kw
|
225kw
|
26.4*3.5*2.5m
|
3000mm
|
Main Features
1.Single belt for crust hardening applications
2.Fast and efficient cooling with multiple level conveyor belts
3.Belts can operate independently at various speeds or on a cascade principle
4.Low maintenance with a fully accessible stainless steel design
5.Design provides rapid freezing with lowest power consumption
6.Adjustable air speed for controlled processing of light and delicate products
7.Full freezing up to 1500 kg/hr
8.Cost effective alternative to running a cryogenic nitrogen tunnel freezer
Detailed Images
Main Features
Main Features
(4) Aluminum evaporators, different fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
Machine Parts
(7) The inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10)SEW speed reducer.
Benefits:
1. High production capacity in a smaller footprint than conventional spiral freezers.
2. Low operating cost through maximized cryogen efficiency.
3. Higher frozen product quality from a quicker freeze.
4. Reduced labor for cleaning and improved food safety through hygienic design.
5. Less product dehydration through reduced freezing time resulting in higher product yield.
Processing Foods
Packing & Delivery
Related Products
Our Service
FAQ
Q: Minimum order quantity?
A: Any order quantity is welcomed. Bulk order quantity will enjoy a more favorable price.
Q: Delivery time?
A: Within 15 days after received payment. If there is stock, could ship out within 2 days after received payment. Check with us before place an order.
Q: How to pay?
A: You could pay by credit card or T/T via Alibaba Trade Assurance system.
Q: Machine has warranty?
A: Yes. Sure machine covers one year parts warranty.
Q: Could we show our logo and company information on our machine?
A: Yes. It is ok.
Q: Could you provide us machine photo, specification, catalogue, ads material for promotion use in our local market?
A: Yes. Sure is willing to do this.
