Quick Details
-
Brand Name:
-
Sunet
-
Use:
-
ftth
-
Warranty Time:
-
2 years
-
Attenuation:
-
0-25dB
-
Polarization Dependent Loss:
-
<0.2dB
-
Operating Temp Range:
-
-40~80 Degree
-
Material:
-
PC+ABS
-
Connector:
-
SC,LC,FC,ST
-
Transmission Medium:
-
Single-Mode
-
Return Loss:
-
>55dB
-
Storage Temp Range:
-
-40~85 Degree
-
Application:
-
Networking, CATV
-
Multi-Mode Fiber:
-
multy mode
Quick Details
-
Type:
-
SNT-ALC
-
Model Number:
-
SNT-ALC
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sunet
-
Use:
-
ftth
-
Warranty Time:
-
2 years
-
Attenuation:
-
0-25dB
-
Polarization Dependent Loss:
-
<0.2dB
-
Operating Temp Range:
-
-40~80 Degree
-
Material:
-
PC+ABS
-
Connector:
-
SC,LC,FC,ST
-
Transmission Medium:
-
Single-Mode
-
Return Loss:
-
>55dB
-
Storage Temp Range:
-
-40~85 Degree
-
Application:
-
Networking, CATV
-
Multi-Mode Fiber:
-
multy mode

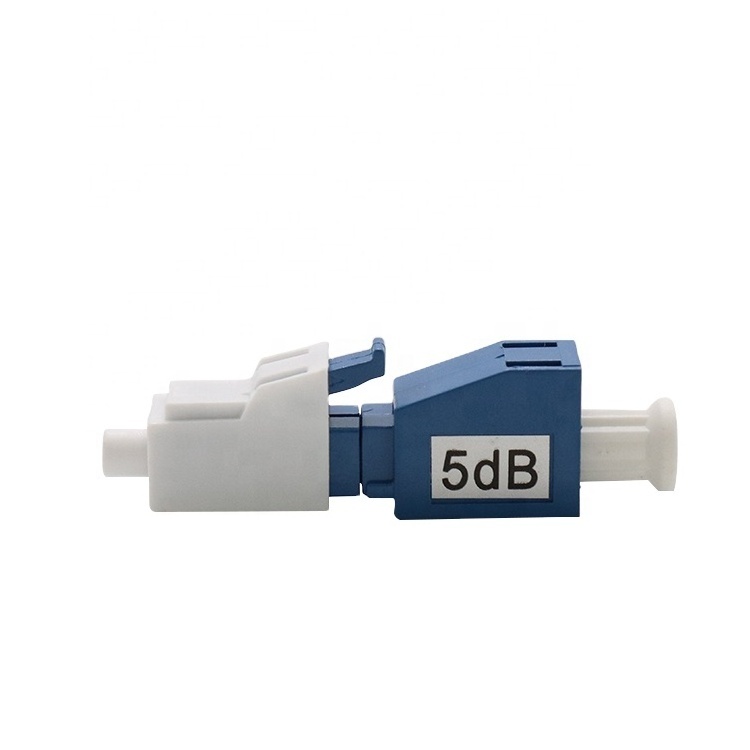

High Quality Fixed Fiber Optical Attenuator Male to Female LC UPC Attenuator with 2dB 3dB 5dB 10dB
Description
Optical fiber attenuator is an electronic device that reduces the amplitude of an electronic signal.
Features
Low insertion loss and back reflection
Definable attenuation from 1dB to 30dB
PC, UPC and APC polish types
Available with FC, SC, ST and LC terminations
Applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Fiber Optic Sensors
Test & measurement
DWDM applications
Parameter:
|
Optical Performance |
M-F Plug Type |
F-F Adaptor Type |
|
Testing Wavelength(nm) |
SM: 1310nm/1550nm |
1310nm |
|
MM: 850nm/1300nm |
||
|
Attenuation Accuracy(dB) |
1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value |
|
|
Return Loss(dB) |
≥50dB (PC) |
≥50dB (PC) |
|
≥60dB (APC) |
≥60dB (APC) |
|
|
Input Power (Max.) (mW) |
300 |
|
|
Durability(dB) |
<0.2dB Typical, 1000 Matings |
|
|
Operating Temperature(°C) |
-40~+80 |
|
|
Storage Temperature(°C) |
-40~+85 |
|
