Quick Details
-
Model Number:
-
LA2-DR
-
Certifications:
-
CE
-
delay timer:
-
0.1-30s,,10~180s
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO
-
Model Number:
-
LA2-DR
-
Certifications:
-
CE
-
delay timer:
-
0.1-30s,,10~180s

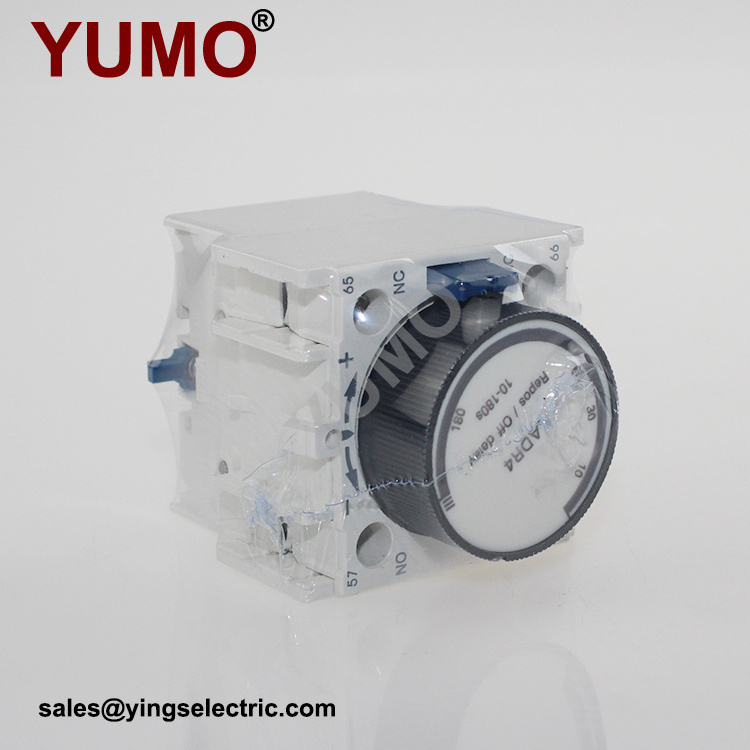

LA2-DT LA3-DR time delay relay use for CJX2-D LC1-D ac contactor
Application
LA1-D series Auxiliary contact blocks are installed at the top of GCA2-D control relay or LC1-D AC contactor for expanding the couples of auxiliary contacts points.owing to adopting the contacting functions of sliding friction,the item can be selfcleaning & ensure the electric circuit to be reliable.
Technical Parameters
|
Product Features:
*
Model:
LA2-DT LA3-DR
*Delay range:
0.1S to 180S
*Voltage:
AC 110V/220V/380V/660V/1000V
*Frequency: 50/60HZ
*Use for:
CJX2-D LC1-D AC contactor
|
*Material:
silver copper
*Circumstance Temp.:
-25 to 40 degress
*Production Degree: IP20 *Body Color: Black, grey
*Open/close:
1NO+1NC
|
|
Packaging Details: Carton Dimensions: 49*28*28cm Quantity/Carton: 12pcs/piece
G.W.:
25KGS
, N.W.:
24KGS
|
|
|
Certificates:
ISO9001/EMC/RoHS/LVD/EAC
|
Logistics Ability: Delivery by courier, by Air and By Sea.
Accept EXW, FOB, CNF, CIF term
|
|
Delivery Time: Material Preparation Time 10 days Assembly & Packaging Time: 10 days
Test time:
5
days
Total Delivery Time
25
days for the first order.
The faster delivery could be negotiable |
Factory Scale:
Total Area of
5000
square meters (538193
Production Staff 100 QC Staff: 10 R&D Staff: 8 |
Model:
| Type | Delay range | Number of the delay contacts |
| LA2-DT0 | 0.1-3s | NO+NC |
| LA2-DT2 | 0.1-30s | |
| LA2-DT4 | 10-180s | |
| LA2-DR0 | 0.1-3s | |
| LA2-DR2 | 0.1-30s | |
| LA2-DR4 | 10-180s |
