Name: Rotor box
Most complicated and important part of Jonco Chipper, solidly welded and coated from corrosion. all bolts are of 8.8 grade, with Zinc coated.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1350*800*1550mm
-
Weight:
-
175 KG
-
Key Selling Points:
-
Brand/Quality/Service/Safety
-
Marketing Type:
-
New Product 2022
-
Horse power:
-
15hp 420cc
-
Starting System:
-
Recoil / Electric optional
-
Hopper Length:
-
920mm
-
Operator height:
-
920mm
-
Chip capacity:
-
100mm
-
Hopper mouth:
-
470*375mm
-
Output conveyor:
-
1550mm / Verticle side discharge
-
Local Service Location:
-
France, Australia, South Korea, South Africa
-
After-sales Service Provided::
-
Free spare parts, Video technical support, Online support
Quick Details
-
Use:
-
Wood Chipping
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JONCO
-
Dimension(L*W*H):
-
1350*800*1550mm
-
Weight:
-
175 KG
-
Key Selling Points:
-
Brand/Quality/Service/Safety
-
Marketing Type:
-
New Product 2022
-
Horse power:
-
15hp 420cc
-
Starting System:
-
Recoil / Electric optional
-
Hopper Length:
-
920mm
-
Operator height:
-
920mm
-
Chip capacity:
-
100mm
-
Hopper mouth:
-
470*375mm
-
Output conveyor:
-
1550mm / Verticle side discharge
-
Local Service Location:
-
France, Australia, South Korea, South Africa
-
After-sales Service Provided::
-
Free spare parts, Video technical support, Online support
Product Description
|
modelo de motor
|
Jonco 420cc
|
B&S XR2100
|
Kohler CH440
|
|
No. of cylinders
|
1 cylinder 4 stroke
|
1 cylinder 4 stroke
|
1 cylinder 4 stroke
|
|
potencia
|
8.3kw
|
9kw
|
9kw
|
|
eficacia
|
8cbm/h
|
8cbm/h
|
8cbm/h
|
|
Velocidad de trabajo(max. & min.)
|
2200rpm
|
2200rpm
|
220rpm
|
|
Max. medida de chip
|
100mm
|
100mm
|
100mm
|
|
Longitud y anchura
|
1330*800mm
|
1330*800mm
|
1330*800mm
|
|
altura
|
1550mm
|
1550mm
|
1550mm
|
|
Peso
|
175kg
|
175kg
|
175kg
|
Main Features

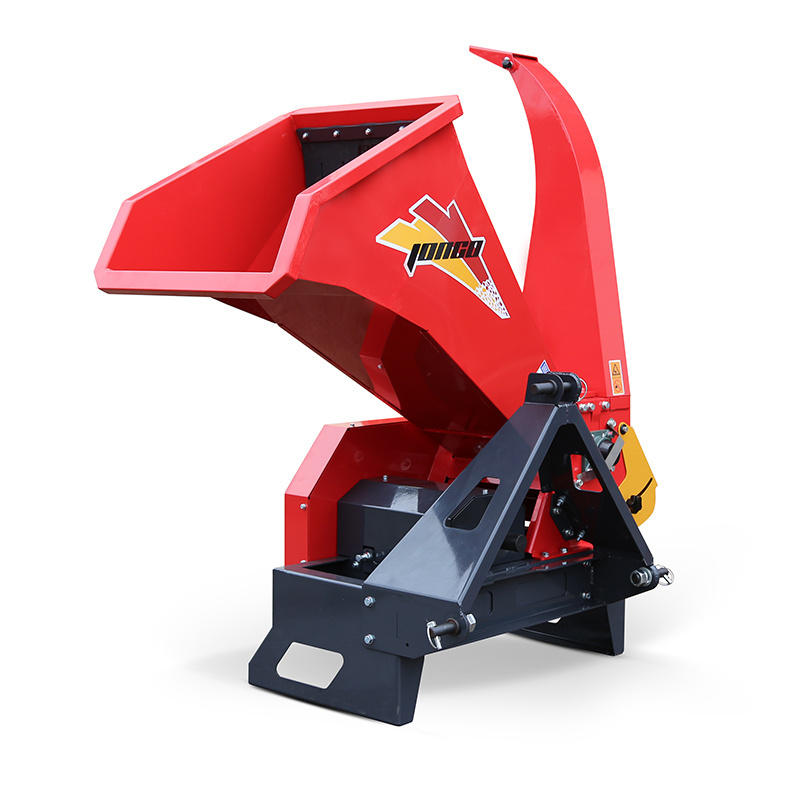

We call this series classical models, as it was designed in the right size and firstly recognized in the market. Its drum chip system design is the base for Jonco model development. With two cutting blades mounted, its efficiency of chipping is high among chippers with similar power. Plus the very fine wood chips, will make end users very satisfied with its performance.
Two wheels and a handle in a compact design, makes this machine very maneuverable, you can easily move these models through your gate or Hedge aisle less than 1m wide.
High output conveyor, you can make you chips thrown to the place you want, even over tailgate of truck.
We choose brand engine with worldwide after-sale service.
Blade on this model, you can have A series for professional cutting.
Detailed Images
Parts
Parts
Name:
Safety rubber curtain
Rubber curtain, moulded with Jonco logo, which can protect operater from hurt by debris flying out for a long term period.
Parts
Name:
Engine
Famous engine brand, strong driving force, low fuel consumption, high economic, very steady power conveying.
Parts
Name:
Blade
Blade, A series and G series, both are made of premium grade alloy steel, machined and ground to precise tolerances and heat treated to exacting specifications.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1140 (L) * 780 (W) * 1080 (H)
|
|
|
Weight
|
175KG
|
|
|
Packaging Details
|
The normal package is Plywood crates.
For 20 FCL, we can load 30 units in.
|
|
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
