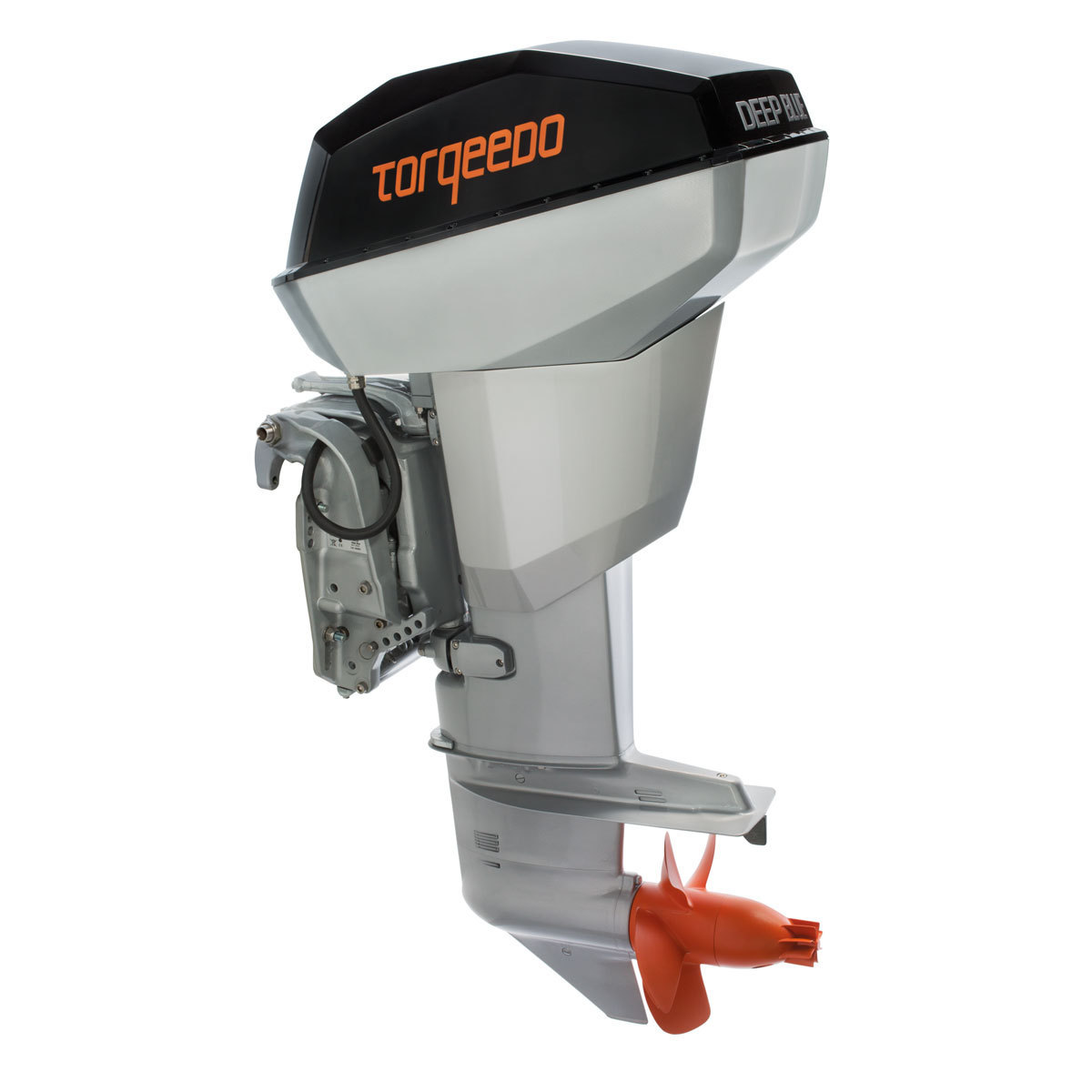

2023 Torqeedo Electric outboard Deep Blue 25 RL System Comparable petrol outboards shaft power 40 HP

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2100

Free Inquiry

Customized Request

Quick Details

Product Description

Deep Blue System	Deep Blue 50 RL / RXL
Input power continuous (peak)	54.5 kW (61.8 kW)
Mech. Output power at shaft continuous (peak)	48.5 kW (55 kW)
Nominal voltage	350 V
Min. voltage for full performance	330 V
Contiuous torque / max. torque	190 Nm / 215 Nm
Max. shaft rpm	2440 1/min
Maximum efficiency el. input to mech. output	89%
Comparable petrol outboards (shaft power)	80 CV
Maximum overall efficiency	54 %
Motor weight including electronics and cabling	L: 139 kg XL: 146 kg
Dimension L/W/H	868 x 394 x 1,535 mm
Shaft length	L: 20” / 51 cm XL: 25“ / 63.5 cm
Standard propeller	Standard high speed propeller: Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting	Gearcase: 4 ¼ “ Shaft: 13 teeth
Max. allowed ambient temperature	45°C
Max. drive temperature controller / motor	90°C / 130°C
Cooling	Direct water cooling
Max. inlet temperature	35°C
Protection Category	IP 67
Conformity	IEC 60034-1 IEC 60349-2 IEC 60146-1-1
Tilting and trim device	Electric tilt and trim
Scope of supply	Outboard motor Cabling Standard high speed propeller Electric tilt and trim
