In order to choose suitable booster pump or systems for you, please kindly reply us the following questions:
1.What is your present gas pressure?( )bar
2.What is your gas?oxygen gas,nitrogen gas or other gases?
3.What outlet gas pressure do you want?( )bar
4.What driven air pressure (of your air compressor) can you offer?( )bar,
because our booster is completely air operated and no need any electricity
5.What outlet gas flow rate do you need?( )L/min
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
13 months
-
Brand Name:
-
Suncenter
-
Model Number:
-
DGS-DGT100
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
none
-
Cable Length:
-
none
-
Outlet Size:
-
none
-
Power:
-
none, Pneumatic
-
motor:
-
none
-
Product name:
-
Gas Booster System
-
Usage:
-
Booster
-
Air driven pressure:
-
2-8bar
-
Material:
-
304 Stainless Steel
-
Keywords:
-
High Pressure Air Driven Gas Booster Pump System
-
Feature:
-
High Efficiency
-
MOQ:
-
1 Set
-
Certification:
-
CE
-
Boost Medium:
-
Ar/He/H2/N2/O2/CO2/NO2/CH4/LNG/LPG/CNG/FM200
Quick Details
-
Application:
-
Automotive Industry, Industrial Utilities
-
Pressure:
-
High Pressure
-
Voltage:
-
none
-
Warranty:
-
13 months
-
Brand Name:
-
Suncenter
-
Model Number:
-
DGS-DGT100
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
none
-
Cable Length:
-
none
-
Outlet Size:
-
none
-
Power:
-
none, Pneumatic
-
motor:
-
none
-
Product name:
-
Gas Booster System
-
Usage:
-
Booster
-
Air driven pressure:
-
2-8bar
-
Material:
-
304 Stainless Steel
-
Keywords:
-
High Pressure Air Driven Gas Booster Pump System
-
Feature:
-
High Efficiency
-
MOQ:
-
1 Set
-
Certification:
-
CE
-
Boost Medium:
-
Ar/He/H2/N2/O2/CO2/NO2/CH4/LNG/LPG/CNG/FM200
Product Description
Applications
Gas transfer and filling
(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO22/CH4/LNG/LPG/CNG/FM200 etc.)
Charging of gas cylinder and accumulator with nitrogen
Supply for isolating gas systems
Gas assisted injection molding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components
Safety valve adjusting

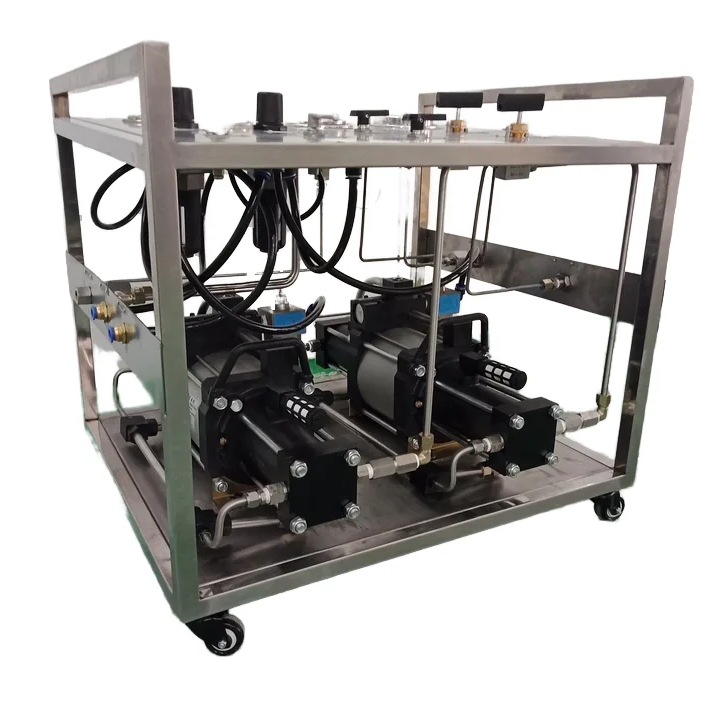

The standard gas booster system including following parts:
Air –driven gas booster pump (DGA/DGD/DGT three series for choosing)
Air –driven gas booster pump (DGA/DGD/DGT three series for choosing)
Stainless steel (carbon steel) material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
Technical specification for DGS-DGA Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
|
Model
|
Pressure boost ratio |
Min. gas
Inlet pressure PA (bar) |
Max.gas
Inlet pressure PA (bar) |
Max. gas
outlet pressure PB (bar) |
Driven air pressure PL
|
Formula to
calculate gas outlet pressure PB |
Connection:
Gas Inlet / Gas outlet (NPT thread) |
Max. flow at driven air pressure of 6bar (L/min)
|
|
DGS-DGT15
|
15:1
|
0.1
|
56
|
120
|
2-8 bar
|
15XPL
|
3/8/ 1/4
|
230(at PA of 8 bar )
|
|
DGS-DGT25
|
25:1
|
0.1
|
10
|
200
|
2-8 bar
|
25XPL
|
3/8/ 1/4
|
156(at PA of 8 bar )
|
|
DGS-DGT7/25
|
25:1
|
5
|
56
|
200
|
2-8 bar
|
25XPL
|
3/8/ 1/4
|
156(at PA of 8 bar )
|
|
DGS-DGT40
|
40:1
|
0.1
|
10
|
320
|
2-8 bar
|
40XPL
|
3/8/ 1/4
|
124(at PA of 8 bar )
|
|
DGS-DGT15/40
|
40:1
|
5
|
120
|
320
|
2-8 bar
|
40XPL
|
3/8/ 1/4
|
124(at PA of 8 bar )
|
|
DGS-DGT60
|
60:1
|
0.1
|
10
|
480
|
2-8 bar
|
60XPL
|
3/8/ 1/4
|
80(at PA of 15 bar )
|
|
DGS-DGT15/60
|
60:1
|
6
|
120
|
480
|
2-8 bar
|
60XPL
|
3/8/ 1/4
|
80(at PA of 15 bar )
|
|
DGS-DGT100
|
100:1
|
0.1
|
10
|
800
|
2-8 bar
|
100XPL
|
3/8/ 1/4
|
63(at PA of 8 bar )
|
How to Select Suncenter Air Driven Gas Boosters/Systems?
