Quick Details
-
Model Number:
-
FST800-211A
-
Pressure Type:
-
gauge pressure absolute pressure sealed pressure
-
Pressure Range(bar):
-
5 10 16 25 40 60 100 160 200 250 300 400 500 600 bar
-
Signal output:
-
4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC
-
Accuracy:
-
±0.5%FS ±1%FS
-
Working Temperature:
-
-40~+85°C
-
Overload Pressure:
-
300% FS
-
Burst Pressure:
-
500% FS
-
Compensated Temperature:
-
-20~+85°C
-
Material:
-
17-4PH
-
Product name:
-
Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST800-211A
-
Pressure Type:
-
gauge pressure absolute pressure sealed pressure
-
Pressure Range(bar):
-
5 10 16 25 40 60 100 160 200 250 300 400 500 600 bar
-
Signal output:
-
4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC
-
Accuracy:
-
±0.5%FS ±1%FS
-
Working Temperature:
-
-40~+85°C
-
Overload Pressure:
-
300% FS
-
Burst Pressure:
-
500% FS
-
Compensated Temperature:
-
-20~+85°C
-
Material:
-
17-4PH
-
Product name:
-
Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor

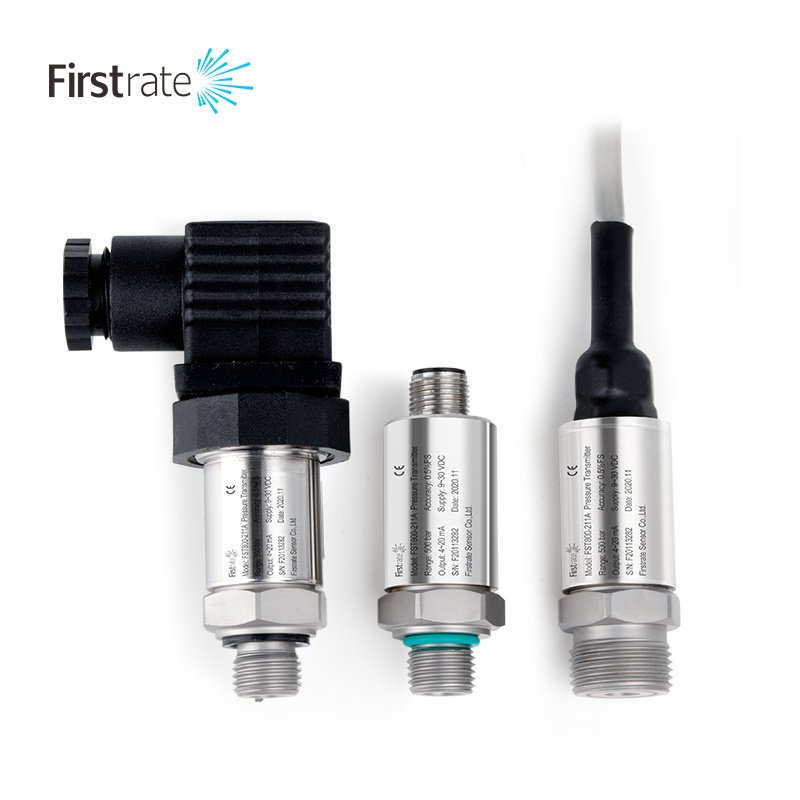

FST800-211A Low Cost Price Industrial Water Air Gas Liquid Pressure Sensor with CE/RoHS
Product parameters
| Product Model | FST800-211A |
| Pressure Type | gauge pressure absolute pressure sealed pressure |
| Pressure Range(bar) | 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 |
| Pressure Range (psi) | 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K |
| Signal output | 4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC |
| Signal line specification | 2wire 3wire 3wire 3wire |
| Power supply | 9~30VDC 5VDC 9~30VDC 15~30VDC |
| Accuracy | ±0.5%FS ±1%FS |
| Longterm Stability (1 Year) | ±0.5%FS |
| Compensated Temperature | -20~+85°C |
| Working Temperature | -40~+85°C |
| Storage Temperature | -40~+105°C |
| Overload Pressure | 300% FS |
| Burst Pressure | 500% FS |
| Environmental Protection | IP65 |
| Wetted Parts | 17-4PH |
| Electrical connection |
Packard Hirschmann(Mini) Hirschmann(DIN43650) M12Waterproof cable (Direct lead) |
| Pressure connection | M20×1.5 M12×1.5 G1/4 NPT1/4 R1/4 7/16-20UNF |
Product Description
