402540 40 means the thickness is 4mm; 25 means the width is 25mm; 40 means the height is 40mm;
501012 50 means the thickness is 5mm; 10 means the width is 10mm; 12 means the height is 12mm;
852530 85 means the thickness is 25mm; 25 means the width is 25mm; 30 means the height is 30mm.
- Product Details
- {{item.text}}
Quick Details
-
Battery Size:
-
10*30*35mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
21g
-
Capacity:
-
1050mAh
-
Rated Voltage:
-
3.7V
-
Size:
-
Accepted customized
-
OEM/ODM:
-
Accepted customized
-
Cycle life:
-
500 Times
-
Keywords:
-
3.7v Lithium Ion Battery
-
Warranty:
-
12 Months, 3months-1year
-
sample:
-
free samples
-
Certification:
-
KC CE ROHS UN38.3
Quick Details
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Medical beauty
-
Brand Name:
-
KRL
-

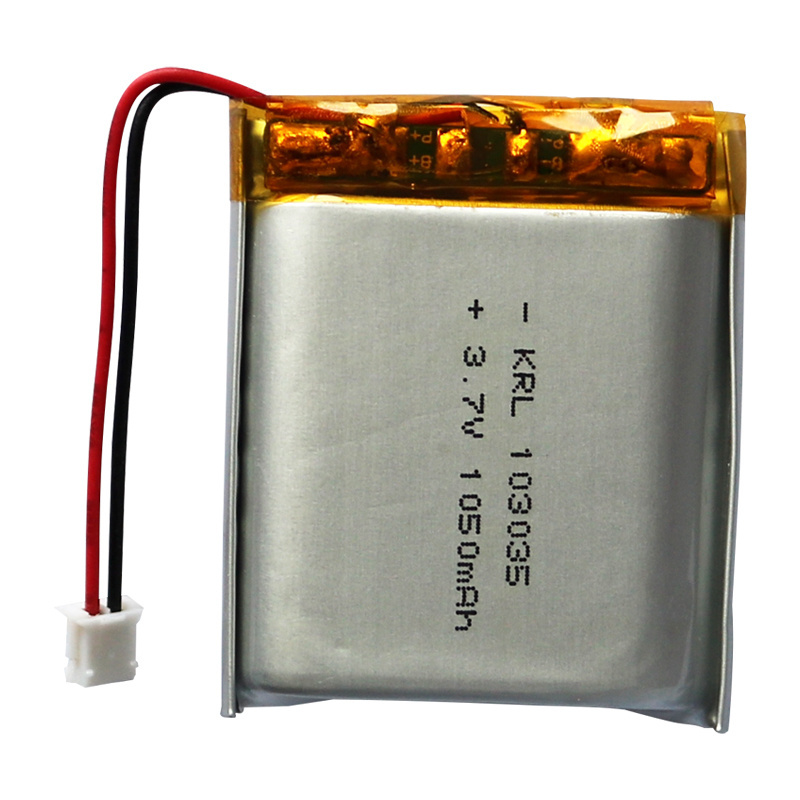

Model Number:
-
103035
-
Battery Size:
-
10*30*35mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
21g
-
Capacity:
-
1050mAh
-
Rated Voltage:
-
3.7V
-
Size:
-
Accepted customized
-
OEM/ODM:
-
Accepted customized
-
Cycle life:
-
500 Times
-
Keywords:
-
3.7v Lithium Ion Battery
-
Warranty:
-
12 Months, 3months-1year
-
sample:
-
free samples
-
Certification:
-
KC CE ROHS UN38.3
Specification
|
ITEM
|
SPECIFICATION
|
REMARK
|
|
Nominal Voltage
|
3.7V
|
|
|
Nominal Capacity
|
1050mAh
|
Standard discharge at 0.2c
|
|
Standard discharge Current
|
0.2C (100mA)
|
|
|
Max discharge Current
|
1C (500mA)
|
|
|
Charge Voltage
|
4.2V
|
|
|
Standard Charge Current
|
0.2C (250mA)
|
charge time Approx 5.0h
|
|
Ref.Discharge Cut off Voltage
|
2.45V
|
|
|
Operating temperature
|
Charging : 0℃ ~ 55℃
|
|
|
Inner resistance
|
Discharging : -20℃ ~ 65℃
|
|
|
Configuration
|
1S1P
|
|
|
|
KRL103035
|
|
|
Size
|
T*W*L=10*30*35mm
|
With PCM
|
|
Connector /Terminal
|
Customized
|
|
|
Battery PCM function
|
Over charge/discharge,over urrent,short circuit protection
|
|
|
Reference Certification
|
CB, IEC62133, KC, CE, UN38.3, MSDS.
|
|
Specifications such as below:
