Quick Details
-
Model Number:
-
ADO102
-
Mode:
-
auto
-
Size:
-
115*180*35mm
-
Battery:
-
7
-
Bandwidth:
-
10MHz
-
Product Name:
-
Phosphor Oscilloscope
-
Channels:
-
4
-
size:
-
115*180*35
-
Model:
-
2ch oscilloscope
Quick Details
-
Type:
-
Digital
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jinhan
-
Model Number:
-
ADO102
-
Mode:
-
auto
-
Size:
-
115*180*35mm
-
Battery:
-
7
-
Bandwidth:
-
10MHz
-
Product Name:
-
Phosphor Oscilloscope
-
Channels:
-
4
-
size:
-
115*180*35
-
Model:
-
2ch oscilloscope

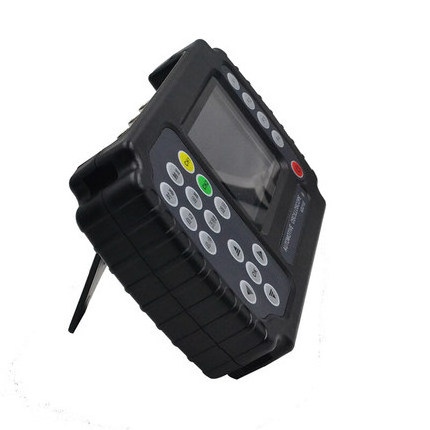

Jinhan ADO102 car diagnostics engine dedicated handheld digital oscilloscope dual channel 2ch oscilloscope
automotive oscilloscope: ADO102
|
model |
ADO102 2 channels |
|
enter |
|
|
Input coupling |
AC, DC (AC, DC) |
|
input resistance |
1MΩ 25pF |
|
Maximum input voltage |
40V (probe X1); 400V (probe X10) can measure 220V voltage; |
|
Probe attenuation |
1X, 10X, 100X |
|
Probe attenuation coefficient setting |
1X, 10X, 100X |
|
signal acquisition system |
|
|
Sampling method |
Real-time sampling, random sampling |
|
Storage depth |
4K |
|
vertical system |
|
|
vertical sensitivity |
10mV-5V (probe 1X) 100mV-50V (probe 10X) (1, 2.5, 5 steps) |
|
vertical accuracy |
+/-3% |
|
vertical resolution |
8bit |
|
bandwidth |
10MHz |
|
horizontal system |
|
|
real-time sampling rate |
100MSa/s |
|
Horizontal scan range |
25nS/div-5S/div |
|
trigger system |
|
|
model |
Auto, normal and single |
|
type |
rising edge, falling edge |
|
automatic detection |
Support (20Hz-10MHz) |
|
measuring system |
|
|
Cursor measurement |
Supports time and voltage cursors |
|
measurement method |
Manual |
|
Measurement |
Amplitude, frequency, period, duty cycle |
