Quick Details
-
Brand Name:
-
BL
-
Model Number:
-
BL-Y-G3-1, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
Industrial Ethernet Switch
-
Dimension:
-
115x85x30(mm)
-
Frame Filtering and Forward Rate:
-
3*10/100/ 1000Mbps
-
External power supply:
-
DC 12V-52V
-
Transmission distance:
-
20KM
-
Operating Temperature:
-
-40°C~85°C
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
Standard
-
Brand Name:
-
BL
-
Model Number:
-
BL-Y-G3-1, ODM OEM
-
Place of Origin:
-
China
-
Product name:
-
Industrial Ethernet Switch
-
Dimension:
-
115x85x30(mm)
-
Frame Filtering and Forward Rate:
-
3*10/100/ 1000Mbps
-
External power supply:
-
DC 12V-52V
-
Transmission distance:
-
20KM
-
Operating Temperature:
-
-40°C~85°C
PRODUCT INFORMATION
|
Product Name:
|
Industrial Gigabit Switch
|
|
PCBA size:
|
115×85×30（mm）
|
|
Interface:
|
10/100/1000Mbps
|
|
External power supply:
|
12-52V
|
|
OEM&ODM:
|
yes
|
|
Applicable:
|
regional networks, security monitoring, fiber to the home, television broadcasting, intelligent networks, intelligent production.
|
Industrial Switch Hundred Gigabit Gigabit 5-port Ethernet Switch for Security Surveillance Camera POE Switch
DC12V ~ 52V wide DC power supply to support the industry's commonly used voltage standard lightning surge protection (power supply) 4000V can be simultaneously connected to two sets of power supply where one end of the power supply failure will not affect the normal operation of the equipment
Reverse connection protection: support for positive and negative reverse connection protection.
Reverse connection can work normally, to prevent damage to equipment misuse
Short-circuit protection: When the equipment is short-circuited, it can quickly cut off the power supply to avoid other accidents.
Can quickly cut off the power supply to avoid other accidents
Surge protection: through the common mode 4KV, differential mode 2KV surge test to enhance the power supply resistance to lightning strikes.
6000V lightning protection for the entire port
Port lightning safety, built-in lightning protection circuit, multi-level lightning protection, effective absorption of electrostatic charge to reduce the damage caused by lightning induction, more secure equipment
Standard industrial-grade design
Meet a variety of harsh industrial applications, with strong dust, lightning, corrosion, anti-power interference, excellent characteristics, up to IP40 protection level, strong heat dissipation, to protect the entire industrial network more secure and stable.
High and low temperature resistant working environment
Rugged aluminum alloy shell, suitable for high temperature +85℃, cold -40℃ harsh environments.
High temperature 85℃
-40℃ low temperature
DIN-rail mounting Industrial-grade structural design
Step 1: Check the grounding and stability of the DIN-rail; snap the DIN-rail slot of the switch into the DIN-rail.
Step 2:Slightly tighten the locating screws of the DIN rail in sequence from the center to both sides to make the DIN rail fit the vertical mounting surface.
Step 3:Use screws to fix the mounting rail slot on the fixed guide grooves at both ends of the rail to ensure that the rail and the switch are fixed vertically and stably on the rail.

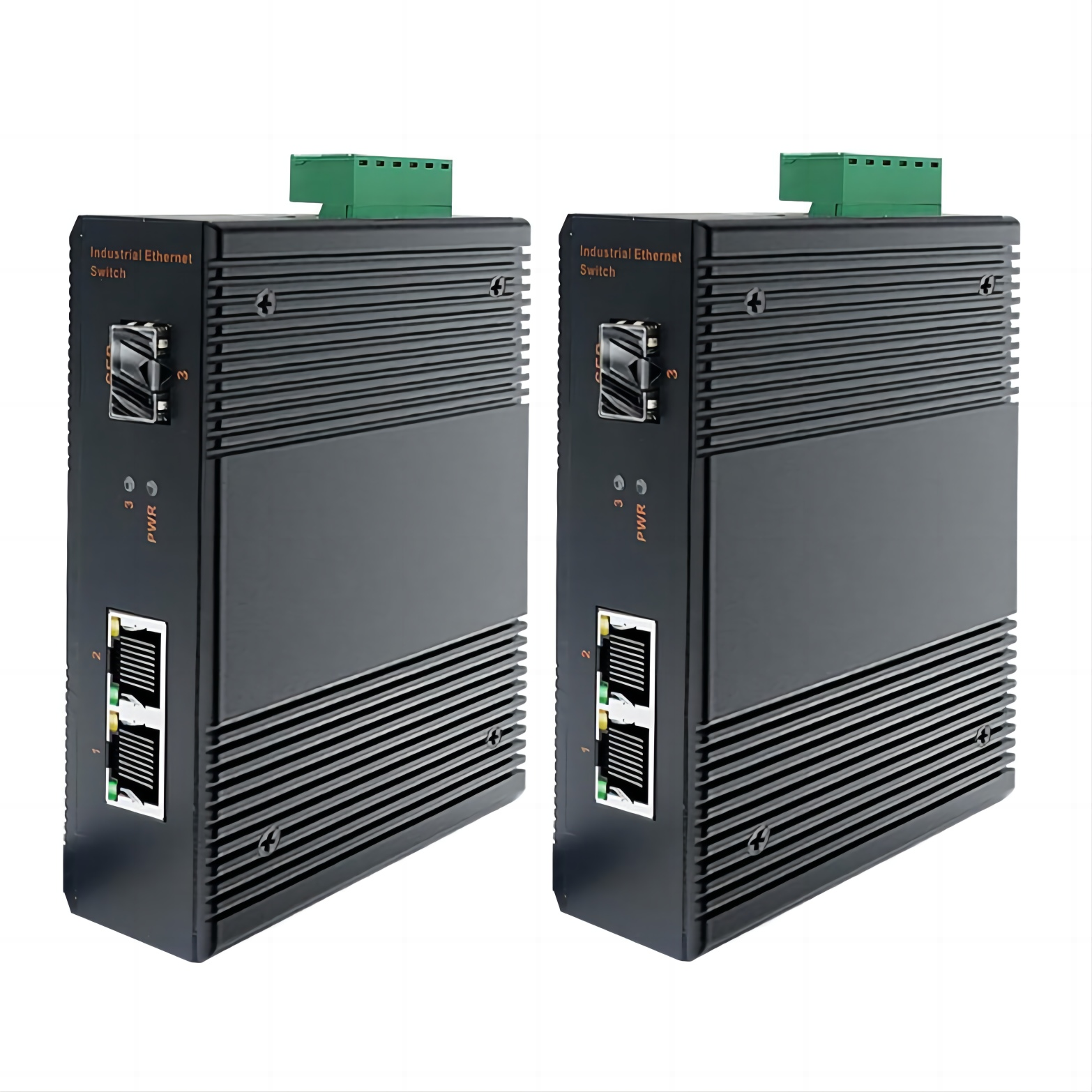

Industrial Switch
Interface Type:10/100/1000Mbps
Backplane bandwidth:10(GB)
Number of Ports:3
Overall Dimension: 115×85×30(mm)
Operating Temperature:-40C~85C
Installation:DIN rail mounting
Protection:IP40
Shell:High quality aluminum alloy
Weight:0.4kg(default without power supply)
