Quick Details
-
Brand Name:
-
DONG YU
-
Model Number:
-
7.938mm
-
Name:
-
Low Carbon steel ball
-
Size:
-
1.588mm-50.8mm
-
Grade:
-
G10-G2000
-
Hardness:
-
HRC58~62
-
Surface:
-
High Polished
-
Application:
-
Bearing Accessories
-
Package:
-
Carton
-
Standard:
-
ISO3290:2001
-
Certifications:
-
ISO9001:2008/TS-16949:2009
-
MOQ:
-
500kg
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Material:
-
AISI 1010/1015
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DONG YU
-
Model Number:
-
7.938mm
-
Name:
-
Low Carbon steel ball
-
Size:
-
1.588mm-50.8mm
-
Grade:
-
G10-G2000
-
Hardness:
-
HRC58~62
-
Surface:
-
High Polished
-
Application:
-
Bearing Accessories
-
Package:
-
Carton
-
Standard:
-
ISO3290:2001
-
Certifications:
-
ISO9001:2008/TS-16949:2009
-
MOQ:
-
500kg
Products Description
|

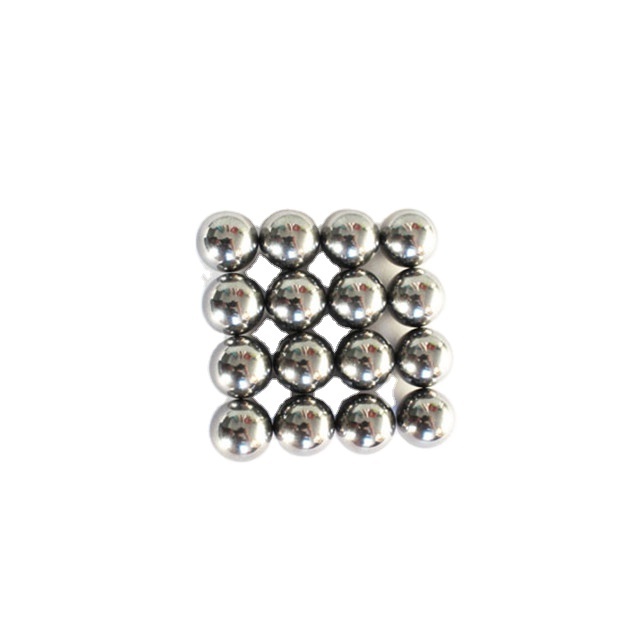

0.5mm to 40mm AISI1010/AISI1015 G40 to G2000 Carbon steel ball
|
|
|
|
|
|
|||||
|
Size:
|
0.5mm to 40mm
|
Grade:
|
G40 to G2000
|
Certificate:
|
Verified/ISO/TS16949
|
|||||
|
Material:
|
AISI1010/AISI1015
|
Hardness:
|
HRC 58~62
|
Place of Origin:
|
Made in china
|
|||||
|
sample:
|
offer free
|
Surface:
|
Mirror Polished
|
Brand Name:
|
dong yu steel ball
|
|||||
|
Package:
|
Plastic Bag + Cardboard Box + Wooden
|
Feature:
|
Corrosion Resistance,Anti-wear
|
Standard:
|
AiSi/DIN/GB/EN/JIS/ ASTM
|
|||||
Application areas:
The 1010/1015 carbon steel ball is a very common steel ball, which has the characteristics of low price and high hardness, and has a wide range of uses. Usually used for bicycles, bearings, pulleys, sliding rails, handicrafts, shelves, universal balls,
luggage, small hardware, and also for grinding other media.
luggage, small hardware, and also for grinding other media.
Characteristic:
Magnetic, metallographic structure is ferrite, often oily packaging, usually electroplated when exposed, can be galvanized,
gold-plated, nickel-plated, chrome-plated, etc.; wear resistance is relatively strong, HRC50-55.
gold-plated, nickel-plated, chrome-plated, etc.; wear resistance is relatively strong, HRC50-55.
Compare:
Compared with bearing steel balls, wear resistance and hardness are not as good as the former (the hardness of GCR15 steel balls
is HRC60-66): so the service life of carbon steel balls is relatively short.
is HRC60-66): so the service life of carbon steel balls is relatively short.
|
Chemical composition of 1010 carbon steel ball (C10)
|
|
Chemical composition of 1015 carbon steel ball (C15)
|
|
||
|
C
|
0.08--0.10
|
C
|
0.13-0.18
|
||
|
Si
|
-------
|
Si
|
-------
|
||
|
Mn
|
0.30--0.6
|
Mn
|
0.30--0.6
|
||
|
P
|
0.040 max.
|
P
|
0.040 max.
|
||
|
S
|
0.050 max.
|
S
|
0.050 max.
|
||
Product packaging
1. 5kg or 10 kg steel ball + box, 4 or 2 boxes + carton, 50 cartons + wooden box.
2. 20kg or 25 kg steel ball +Plastic bag + carton, 40 or 50 cartons + wooden box.
3. 20kg or 25kg steel ball + plastic bag, 50 or 40 bags + wooden box.
4. 250kg steel ball + plastic bag + iron drum, 4 iron drums + tray.
1. Express delivery (DHL, Federal, Dedicated Express, UPS, EMS, TNT)
2.
Air, sea and rail transportation
Process and Advanced Testing Equipment
PROCESS >>>
G10~G80:
Raw material >> Heading process >> Flashing process >> Heating treatment process >> Grinding process >> Initial grinding process >> lapping process >> Photometric sorter
G100~500:
Raw material >> Heading process >> Flashing process >> Heating treatment process >> Grinding process >> Polishing
G1000~G2000
:Raw material >> Heading process >> Flashing process >> Heating treatment process >> Polishing
Advanced Testing Equipment>>>
Perfect testing equipment and methods to ensure the quality of my products.
