Quick Details
-
Dimension(L*W*H):
-
1230*910*390
-
Weight (KG):
-
98 kg
-
Load capacity:
-
400/600/800/1000/1200kg
-
Rotation:
-
360°Manual rotate
-
Single cup size:
-
300 MM
-
Vacuum source:
-
Oil-free Vacuum Pump
-
Transport:
-
Home Delivery
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Dimension(L*W*H):
-
1230*910*390
-
Weight (KG):
-
98 kg
-
Load capacity:
-
400/600/800/1000/1200kg
-
Rotation:
-
360°Manual rotate
-
Single cup size:
-
300 MM
-
Vacuum source:
-
Oil-free Vacuum Pump
-
Transport:
-
Home Delivery
Welcome to our factory store~
Order process:
√ Before placing an order, please contact me first to let me know your needs
√ Such as load capacity, lifting height, platform size
√ I will recommend the most suitable machine for your working environment
√ PLK Machinery is willing to provide you with the most suitable solution for you
Ce Load 400kgs Electric Vacuum Lifter For Glass/Marble/Wood Sheet
State-of-the-art vacuum lift:
The original intention of the design: equipment (glass, metal, plastic, stone) for easy installation and transportation. It uses dual vacuum pump suction to form a bond between the machine and the object, ensuring absolute safety while providing strong adsorption capacity.
Scope of application: adaptable to various working environments, indoor and outdoor, construction industry, production workshop, manufacturing and installation,

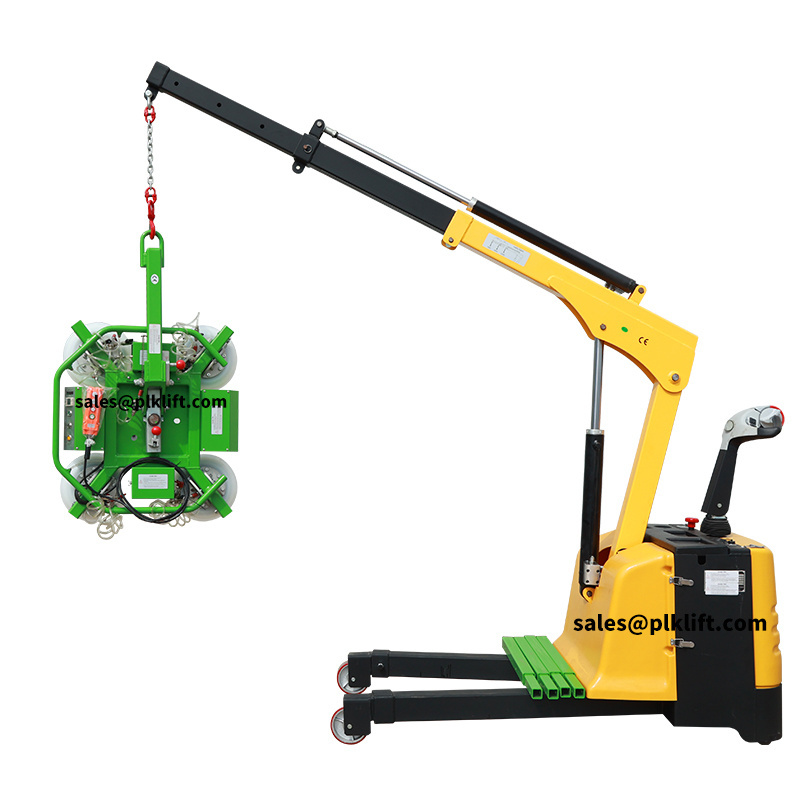

Combination machine: It can be easily connected to lifting equipment such as a crane, forklift or aerial work platform, so that it can be seamlessly integrated into existing workflows.
Our Factory: Committed to providing high-quality, reliable products that exceed customer expectations
Specification Table
| Model | GL-SC-400X | GL-SC-600X | GL-SC-800X | GL-SC-1000X | GL-SC-1200X | |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Cup Qty | pcs | 4 | 6 | 8 | 10 | 12 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
| Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 | 100 |
| Rotation & Tilting | / | 360°manual rotation & 90° manual tilting | ||||
| Battery & Charger | / | 12AH DC 12V battery, smart charger with power indicator | ||||
| Control System | / | 5m long wire control(optional remote control: +USD50) | ||||
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
| Extension Bar Length | mm | 500 | ||||
| Package Size | mm | 1300*870*370 | ||||
| Net Weight | kg | 70 | 90 | 100 | 110 | 120 |
| Gross Weight (with Wooden Box) | kg | 97 | 110 | 123 | 150 | 163 |
Features & Advantages
:
1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
