Quick Details
-
Brand Name:
-
GOOLER
-
Dimension(L*W*H):
-
4500x1600x2300mm
-
Weight:
-
550 KG
-
Features:
-

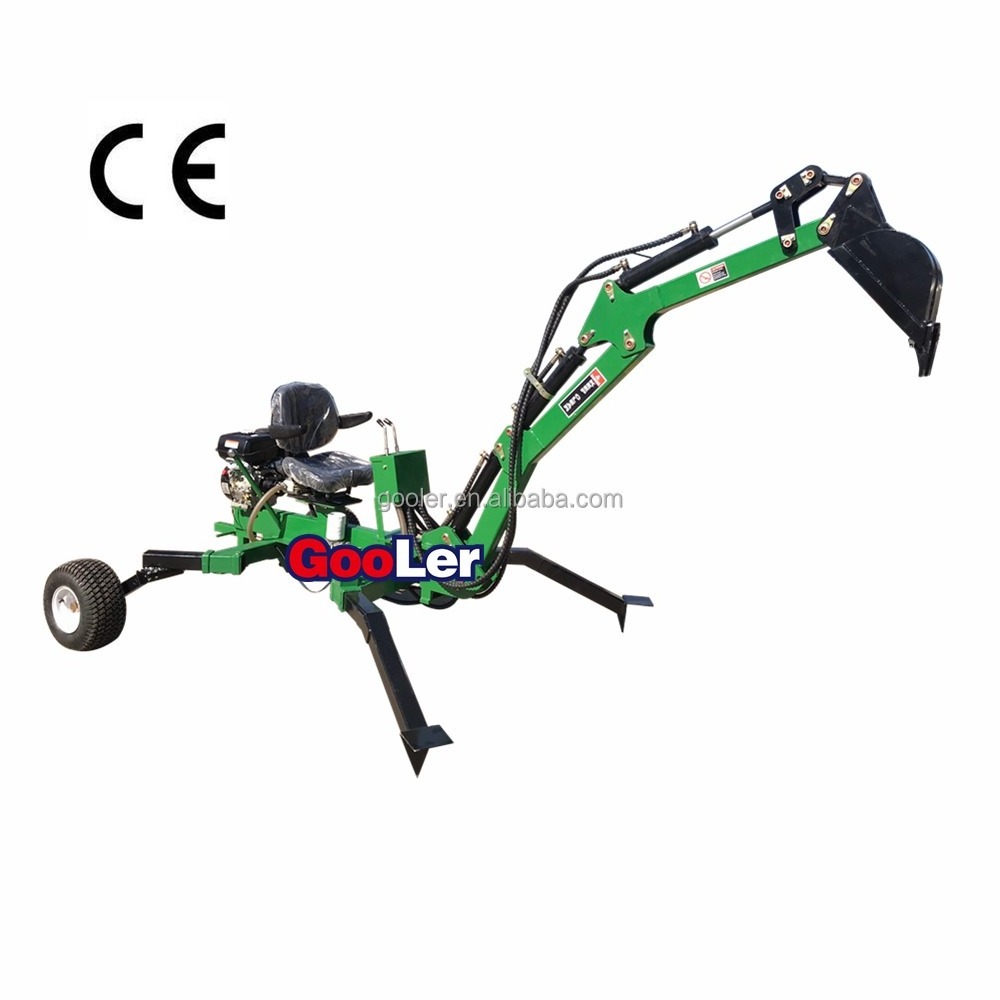

ATV/UTV Towable Backhoe
-
Key Selling Points:
-
high efficiency
-
Moving Type:
-
Wheel
-
Engine:
-
13hp Gasoline Engine
-
Color:
-
Red/Blue/Black/Green/Orange/As your request
-
Max Digging depth:
-
2400mm
-
Stabilizer width:
-
1800mm
-
Bucket size:
-
12 inch
-
Working depth:
-
8inch
-
Swing angle:
-
140°
-
Bucket swing angle:
-
160°
-
Bucket width:
-
220mm/300mm/400mm/500mm/600mm
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Digging,assistant excavating
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOOLER
-
Dimension(L*W*H):
-
4500x1600x2300mm
-
Weight:
-
550 KG
-
Features:
-
ATV/UTV Towable Backhoe
-
Key Selling Points:
-
high efficiency
-
Moving Type:
-
Wheel
-
Engine:
-
13hp Gasoline Engine
-
Color:
-
Red/Blue/Black/Green/Orange/As your request
-
Max Digging depth:
-
2400mm
-
Stabilizer width:
-
1800mm
-
Bucket size:
-
12 inch
-
Working depth:
-
8inch
-
Swing angle:
-
140°
-
Bucket swing angle:
-
160°
-
Bucket width:
-
220mm/300mm/400mm/500mm/600mm
Features:
1) 9hp self powered backhoe
2) matched any trailer
3) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as
well as assistant excavating work in construction and building roads.
4) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting
Options for Additional Configuration:
1) 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets
2) 9HP Gasoline engine brand like Kohler, Honda, B&S etc.
3) Gasoline engine bigger power like 15HP.
4. Tyre can be changed as your request
|
MODEL |
ATV-9 |
|
Power |
9HP Gasoline engine |
|
STRUCTURE WEIGHT |
550kgs |
|
MAX DIGGING DEEP |
2400mm |
|
MAX DIGGING RADIUS |
2800mm |
|
MAX DIGGING HEIGHT |
2500mm |
|
MAX UNLOADING HEIGHT |
1200mm |
|
STABILIZER WIDTH |
1800mm |
|
SWING ANGLE FOR BOOM |
140 degree |
|
BUCKET TURNNING ANGLE |
160 degree |
|
BUCKET CUBAGE |
0.036m³ |
|
BUCKET WIDTH |
Optional: 220mm/300mm/400mm/500mm,600mm |
|
PUMP |
DOUBLE SPEED GEAR PUMP |
|
COUPLER SIZE |
2" BALL FOR EASY TOWING |
|
DIMENSIONS (L x W x H) |
1800mmx1100mmx900mm |
