Quick Details
-
Product Name:
-
low price insulated gypsum plasterboard
Quick Details
-
After-sale Service:
-
Online technical support, Free spare parts, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE
-
Feature:
-
COMMON
-
Product Name:
-
low price insulated gypsum plasterboard
We use to load the powder compound and steel profiles to fill up the empty space
in container to make the freight cost more effective

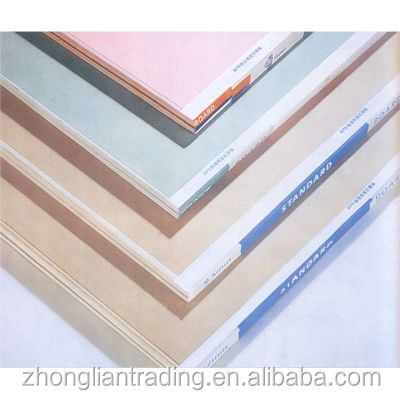

Gypsum board for ceiling and wall
Normal,Moistureproof,Fireproof
Match with steel profiles:stud,track,channel,angle
low price insulated 18mm ceiling gypsum plasterboard
Features:
1. Light weight: in favor of anti-shake and save building cost.
2. Keep warm and heat insulation: special lacunaris structure.
3. Fireproof: gypsum core is noncombustible,absorb heat to postpone rise of temperature around when meet fire.
4. Sound insulation: special cavum structure, improve sound absorption performance at large degree.
Variety:
1.Standard Type(ivory protective paper),
2.Fire Resistant type (red protective paper),
3.Moisture Resistant type (green protective paper);
Specification:
| WIDTH | 1200mm | 1220mm | ||||||
| LENGTH | 1800mm | 1830mm | 2000mm | 2400mm | 2440mm | 2500mm | 3000mm | |
| THICKNESS | 7.5mm | 9mm | 9.5mm | 10mm | 12mm | 12.5mm | 15mm | 15.9mm |
Technical Performance
| Item | Standard value | Actual value | ||||
| Weight per unit (kg/m2) | --- | Thickness(mm) | Normal | Fire proof | Water proof | |
| >9.5 | 9.5 | 7.7 | 8.3 | 8.2 | ||
| >12.0 | 12 | 9.4 | 9 | 10.3 | ||
| >15.0 | 15 | 11.6 | 11.8 | --- | ||
| Rupture load(N) | Vertical | Horizontal | Thickness (mm) | Vertical | Horizontal | |
| <360 | <140 | 9.5 | 513 | 171 | ||
| <500 | <180 | 12 | 684 | 213 | ||
| <650 | <220 | 15 | 781 | 281 | ||
| Protect paper joint with core material | Not naked | Not naked | ||||
| Stability of meeting fire(for fire proof board) | <20 | >20 | ||||
| Soap up ratio(%)(for fire proof board) | >10 | Thickness (mm) | Soap up ratio | |||
| 9.5 | 7.2 | |||||
| 12(12.7) | 8.5 | |||||
| Inner irradiation ratio | type direction materials | |||||
| Outer irradiation ratio | type direction materials | |||||
| Remark: According to China standard of GB/T 9775-1999, GB 6566-2001 | ||||||
