Quick Details
-
Engine Brand:
-
Famous brand
-
Travel Speed:
-
0-10km/h
-
Grade Ability:
-
50%
-
Place of Origin:
-
SHN
-
Dimension(L*W*H):
-
6320*2300*3200mm
-
Exciting Force:
-
340KN
-
Marketing Type:
-
Other
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO9001
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
132 kW
-
Weight:
-
18 TON
-
Engine Brand:
-
Famous brand
-
Travel Speed:
-
0-10km/h
-
Grade Ability:
-
50%
-
Place of Origin:
-
SHN
-
Dimension(L*W*H):
-
6320*2300*3200mm
-
Exciting Force:
-
340KN
-
Marketing Type:
-
Other
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO9001
-
After-sales Service Provided:
-
Free spare parts
Products Description

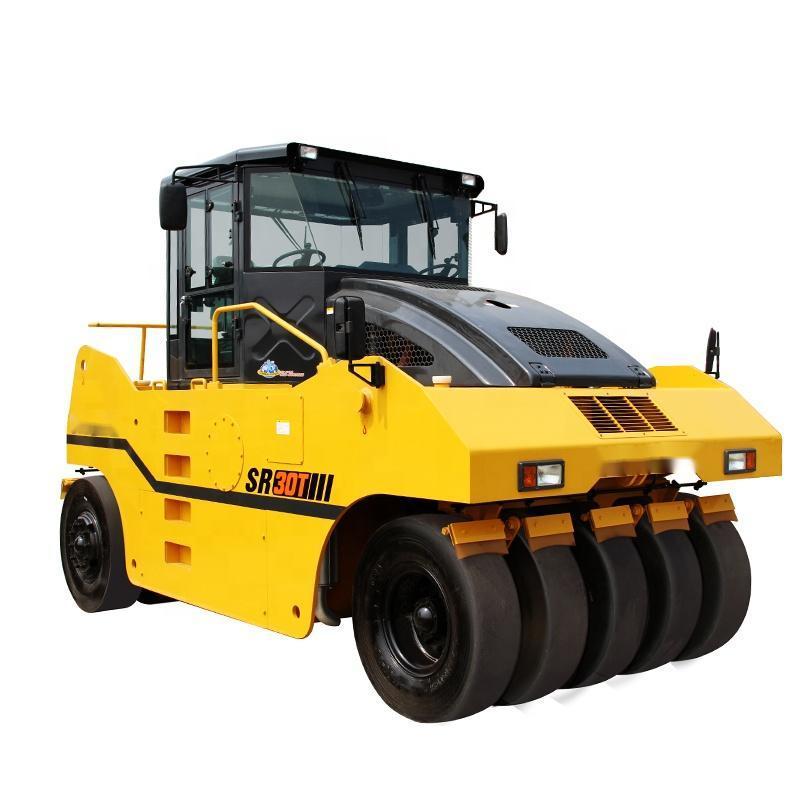

SR30T 30ton rubber tyre roller compactor road roller for Asphalt Road Construction
SR26T/SR30T tire rollers could compact the laying with the special inflation wheels that are good for the laying. In addition, the compaction could be improved by changing the inflatable wheel load and the pressure.They are suitable for compaction of base layer, second base layer and asphalt layer and thus preferred for construction of high way, harbor, airport and industries.
Technical parameters
|
MODEL
|
UNIT
|
|
SR26T
|
SR30T
|
|
|
Operating weight
|
kg
|
|
15950
|
30000
|
|
|
Metal ballast
|
kg
|
|
7350
|
11350
|
|
|
Water ballast
|
kg
|
|
2700
|
2700
|
|
|
Max. working weight
|
kg
|
|
26000
|
30000
|
|
|
Min. turning radius
|
mm
|
|
9000
|
9000
|
|
|
Working width
|
mm
|
|
2750
|
2750
|
|
|
Tire distance
|
mm
|
|
490
|
510
|
|
|
Ground pressure
|
kPa
|
|
250-425
|
200-465
|
|
|
Wheel base
|
mm
|
|
3840
|
3840
|
|
|
Front/rear tire overlap
|
mm
|
|
50
|
70
|
|
|
Front tire oscillation
|
mm
|
|
±50
|
±50
|
|
|
Max. climbing ability
|
%
|
|
20
|
20
|
|
|
Min ground clearance
|
mm
|
|
303
|
303
|
|
|
Forward speed
|
1/2/3
|
km/h
|
0-8/0-20
|
0-8/0-20
|
|
|
Reverse speed
|
1/2/3
|
km/h
|
0-8/0-20
|
0-8/0-20
|
|
|
Engine model
|
|
|
Shangchai SC7H160.2G3
|
Shangchai SC7H180.2G3
|
|
|
Rated power
|
kW
|
|
118
|
132
|
|
|
Rated speed
|
rpm
|
|
800
|
1800
|
|
|
Number of tires, front/rear
|
|
|
5/6
|
5/6
|
|
|
Tire size
|
|
|
11.00-20-16pr
|
11.00-20-16pr
|
|
|
Overall length
|
mm
|
|
5060
|
5060
|
|
|
Overall width
|
mm
|
|
2892
|
2892
|
|
|
Overall height
|
mm
|
|
3338
|
3338
|
|
Details Images
Sales Service
About Us
Packaging & Shipping
FAQ
1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
