2. Jacketed cooker can dissolve sugar and maltose rapidly, to reach full uniform effects of dissolving. 3. Storage tank is used for storage liquid and decrease the temperature of liquid. 4. All syrup transportation adopt high-precision lobe pumps. 5. The whole part of the cooking is controlled by an independent control cabinet. It can help better control the sugar boiling process.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220/380V
-
Power:
-
0.75 KW
-
Dimension(L*W*H):
-
1900*1100*1700 mm
-
Weight:
-
500 KG
-
Application fields:
-
Candy factory
-
Machinery Capacity:
-
50kg/h, 30-80 kg/h
-
Machinery Function:
-
Candy Forming Machine
-
Raw material:
-
sugar
-
Marketing Type:
-
Fully Automatic Sweet Candy Machine, Ordinary Product
-
Keywords:
-
Gummy Candy Making Machine
-
Item:
-
Sweet Machine
-
Function:
-
Pouring Machine
-
Key words:
-
Gummy Candy Depositing Line
-
Use:
-
GUM CANDY PROCESSING
Quick Details
-
Model Number:
-
NONE
-
Brand Name:
-
hanbeter, hanbeter
-
Place of Origin:
-
China, Henan
-
Voltage:
-
220/380V
-
Power:
-
0.75 KW
-
Dimension(L*W*H):
-
1900*1100*1700 mm
-
Weight:
-
500 KG
-
Application fields:
-
Candy factory
-
Machinery Capacity:
-
50kg/h, 30-80 kg/h
-
Machinery Function:
-
Candy Forming Machine
-
Raw material:
-
sugar
-
Marketing Type:
-
Fully Automatic Sweet Candy Machine, Ordinary Product
-
Keywords:
-
Gummy Candy Making Machine
-
Item:
-
Sweet Machine
-
Function:
-
Pouring Machine
-
Key words:
-
Gummy Candy Depositing Line
-
Use:
-
GUM CANDY PROCESSING

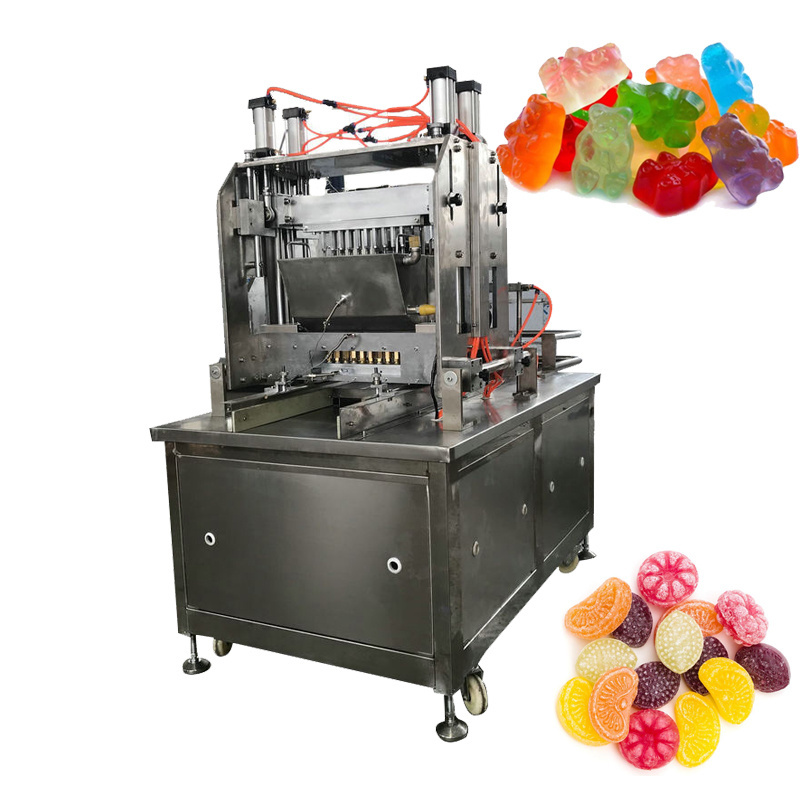

This candy production line is a multifunctional candy production line controlled by PLC,used to make 3D sandwich gummies, fruit gummies, vegetable gummies, and ordinary flat gummies. It is an ideal machine to produce superior quality gummy candy of single color and double color; By change-over molds or depositors, different color and different shape of gummy can be also produced. High degree of automation can produce super quality of gummy, at the same time it saves the manpower and the space occupation.
|
Production capacity
|
25-50kg/h
|
|
Pouring speed
|
15-25 n/min for soft sugar
|
|
Hard candy weight
|
2-6g
|
|
Voltage
|
380 V/50Hz
|
|
Total power
|
70 kw
|
|
Air consumption
|
0.5m ³/h
|
|
Compressed air pressure
|
0.4-0.6mpa
|
|
Cooling system operating environment
|
Room temperature< 25℃, Humidity < 55%
|
|
Compressed air consumption
|
0.3m³ / min
|
1. Cooking system consists of jacket cooker and storage tank.
1.Multi-language touch screen is easy to operate.
2.Reasonable waste water discharge system.
3.All electric components are marked and traceable.
4.Flavor and color mixer can effectively mix flavor color and other ingredients.
2.Reasonable waste water discharge system.
3.All electric components are marked and traceable.
4.Flavor and color mixer can effectively mix flavor color and other ingredients.
5.The an oil-spraying machine makes the candy easier to demold.
6.High accuracy fabrication technology for deposit piston and copper makes the same candy weight.
6.High accuracy fabrication technology for deposit piston and copper makes the same candy weight.
1.Muti-layers refrigeration 100% Demoulding 2.Polyurethane Cooling Belt (Food Grade) 3.Dual Brush Removal System 4.All Stainless Steel Side Panels 5.Cooling Tunnel With 5-20hp Chilling System and Desiccant Fans to Maintain 0-20°C Controls
