Quick Details
-
Working width(m):
-
2.5
-
Tractor Power:
-
60hp
-
Mounted cat:
-
Three-point mounted Cat II
Quick Details
-
Weight (KG):
-
320
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
tiande
-
Working width(m):
-
2.5
-
Tractor Power:
-
60hp
-
Mounted cat:
-
Three-point mounted Cat II
Products Description
Title goes here.

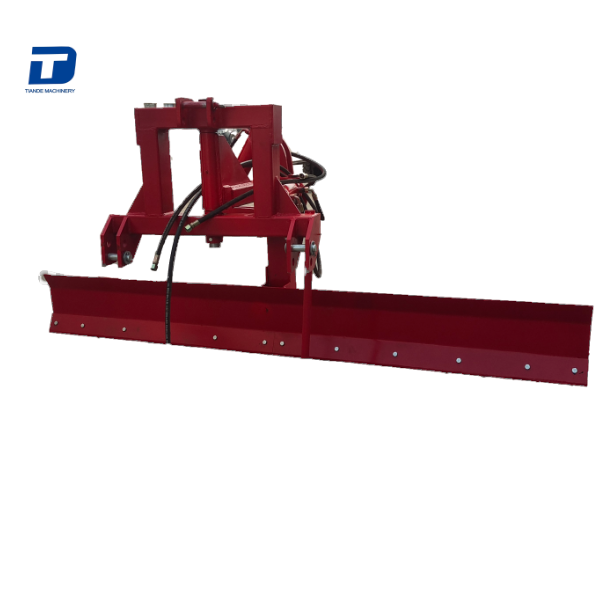

This tractor hydraulic scraper grader uses a hydraulic cylinder to control the up and down and front and rear angles of the scraper. It can lift, tilt, rotate and extend between the front and rear axles of the machine. The movements are flexible and accurate, the operation is convenient, and the flat site has high accuracy.
Mainly suitable for leveling farmland, it can also be used to construct roadbeds and pavements, build slopes, and excavate side ditches. It can also be used to mix pavement mixtures, clear snow on roads, push granular materials, and maintain dirt and gravel roads. Waiting for work.
Product Features
1.The machine's tie rod is adjustable, with 7 adjustment holes at the front and rear, a total of 14 holes. The angle of the machine can be adjusted according to customer needs to achieve horizontal adjustment of the machine to achieve the effects required by customers. Using the adjustment holes, rotate the machine's tie rod 180", and the machine can be converted from a rear three-point suspension to a tractor pushing forward.
2.There are 3 vertical adjustment holes at the rear of the machine, which can realize the vertical adjustment of the machine. The machine is more flexible to use.
3.The blade of this machine is made of 65mm steel, which has higher hardness and durability after heat treatment.
Product Paramenters
|
Model
|
LCP-2.5
|
|
Working width(m)
|
2.5
|
|
Weight (kg)
|
300
|
|
Tractor Power
|
60HP
|
|
Mounted cat
|
Three-point mounted Cat II
|
