Quick Details
-
Brand Name:
-
VANSHUI
-
Model Number:
-
T9/ID
-
LCD Display:
-
2.8-inch TFT Screen
-
Speaker:
-
Voice prompt (language can be selected)
-
Language:
-
English, French, Spanish, Arabic, etc.
-
Fingerprint Capacity:
-
3,000(SSR:1,000fps)
-
ID Card Capacity:
-
3,000(SSR:1,000cards)
-
Transaction:
-
100,000(SSR:50,000logs)
-
Power Supply:
-
110/220VAC-5VDC/1A
-
Communication:
-
TCP/IP, USB Host
-
Unit packing:
-
300*230*100mm
-
Package Volume Weight:
-
2.5KG
Quick Details
-
Type:
-
Biometric Time Recording
-
Biometric Measurement:
-
Fingerprint+ID Card Reader
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VANSHUI
-
Model Number:
-
T9/ID
-
LCD Display:
-
2.8-inch TFT Screen
-
Speaker:
-
Voice prompt (language can be selected)
-
Language:
-
English, French, Spanish, Arabic, etc.
-
Fingerprint Capacity:
-
3,000(SSR:1,000fps)
-
ID Card Capacity:
-
3,000(SSR:1,000cards)
-
Transaction:
-
100,000(SSR:50,000logs)
-
Power Supply:
-
110/220VAC-5VDC/1A
-
Communication:
-
TCP/IP, USB Host
-
Unit packing:
-
300*230*100mm
-
Package Volume Weight:
-
2.5KG
Products Description
Detailed Product Description:

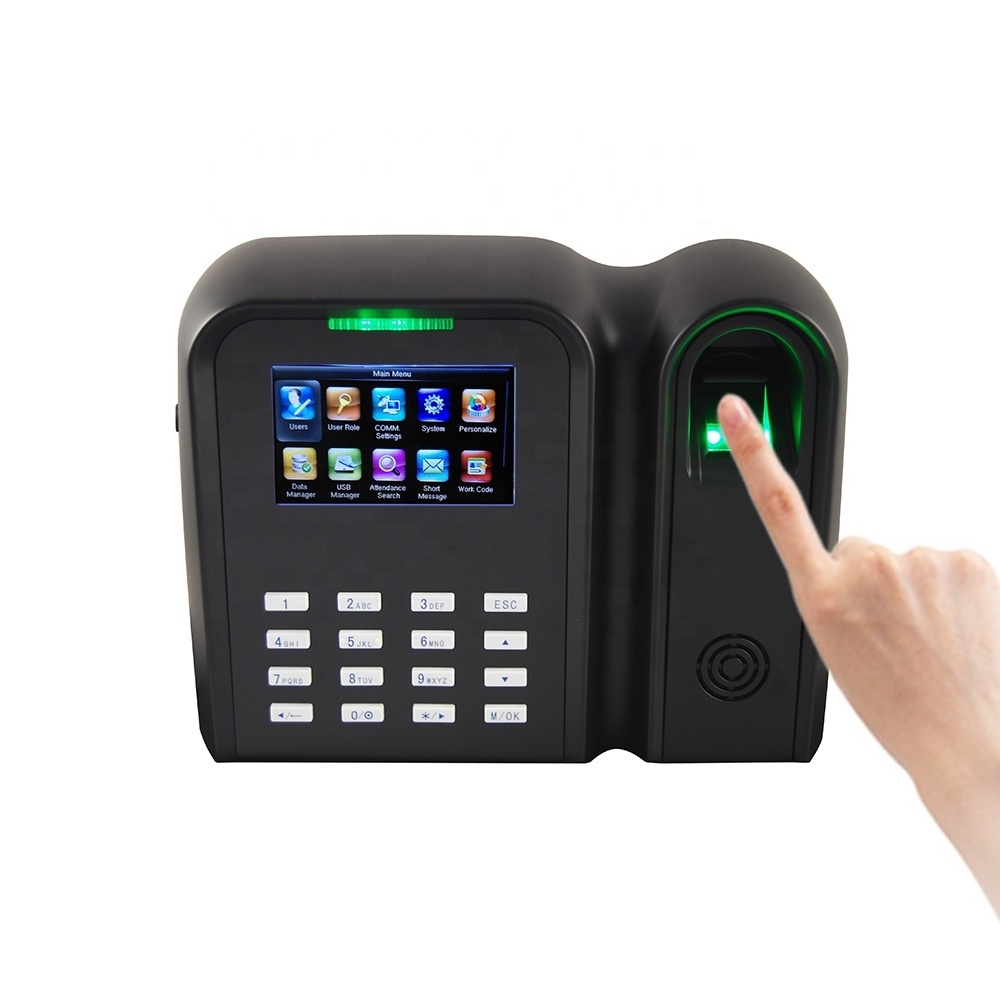

T9 is an innovation fingerprint time clock terminal, offering unparalleled performance, advanced fingerprint algorithm for reliability, precision and fast speed. With SSR(Self-Service-Recorder) stored in the time clock. It supports both network and standalone, USB flash drive for offline data management. With simple and easy operation, it is the best choice for small office, banks, warehouse, school, etc.
Features
Features
2.8-inch TFT color display screen
TCP/IP for network environments
Self-Service Report, no software required
Voice prompt for fingerprint acceptance and rejection
Support USB flash drive for offline data management
Support both fingerprint and ID card
TCP/IP for network environments
Self-Service Report, no software required
Voice prompt for fingerprint acceptance and rejection
Support USB flash drive for offline data management
Support both fingerprint and ID card
Specification
|
Model
|
T9/ID
|
|
Item Name
|
Fingerprint & ID card Time Attendance System with SSR function
|
|
LCD Display
|
2.8-inch TFT Screen
|
|
Speaker
|
Voice prompt (language can be selected)
|
|
Language
|
English, French, Spanish, Arabic, etc.
|
|
Capacity
|
Fingerprint:3,000FPS(SSR:1,000FPS);
ID Card Capacity:3,000(SSR:1,000CARDS);
Transaction:100,000(SSR:50,000LOGS) |
|
Verification
|
Verification speed (1:1)<=0.5s
Identification speed(1:1)<=1s |
|
Identification
|
FRR<=0.01% FAR<=0.0001%
|
|
Communication
|
TCP/IP, USB Host
|
|
Power Supply
|
110/220VAC-5VDC/1A
|
|
Environment
|
Operation humidity：20%-80%
Operation temperature:0℃-45 ℃ |
|
Package info.
|
Machine size:194*145*49mm
Unit packing: 280*230*100mm Real weight:1.2kg Volume Weight:1.5KG |
|
Standard Function
|
ID card reader, Query, Automatic Status Switch, 9 PIN User ID, T9 Input, Work Code, DST
|
Details Images
Software
UTIME Master Web-Base Software
