Quick Details
-
Product name:
-
Wind sensor
-
Measuring Range:
-
0~60m/s
-
Item:
-
Wind speed and direction
-
Usage:
-
Our door
-
MOQ:
-
1
-
Output signal:
-
RS485/RS232
-
Name:
-
Wind monitor
-
Keywords:
-
Wind sensor
-
Certificate:
-
CE RoHS
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Hebei, China
-
Color:
-
White
-
Product name:
-
Wind sensor
-
Measuring Range:
-
0~60m/s
-
Item:
-
Wind speed and direction
-
Usage:
-
Our door
-
MOQ:
-
1
-
Output signal:
-
RS485/RS232
-
Name:
-
Wind monitor
-
Keywords:
-
Wind sensor
-
Certificate:
-
CE RoHS

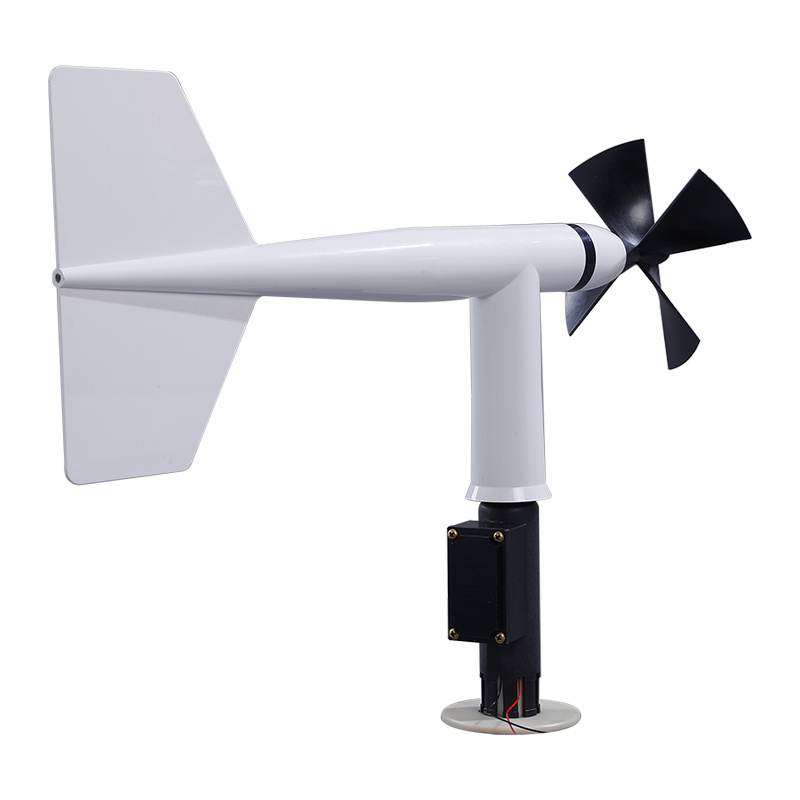

XFC2-2 Industry Intelligent Digital Anemometer for Wind Speed and Direction Anemometer Marine Weather Station
Application Scenario
Product Description
PRINCIPLE
The rotation of the propeller generates a sine wave, and the frequency of the sine wave is linear with the wind speed. The sinusoidal alternating current wave is induced by the speed measuring coil fixed on the wind speed axis and the six-level magnetic steel. Each rotation of the propeller will inevitably produce three complete sine waves, neither more nor less, so the wind speed data is stable and accurate through the frequency of the sine wave.
The position of the tail can reflect the wind direction data. The tail wing drives the axis of the angle sensor to rotate to accurately obtain the accurate output voltage. The angle sensor inputs a stable power supply voltage, and the analog voltage generated by the tail rotation accurately reflects the wind direction data.
FEATURES
※ Wind resistance, high accuracy of wind speed and direction;
※ Low power consumption, more suitable for offshore, mountain and other environments without external power supply;
※ With strong compatibility, it can seamlessly connect similar foreign products;
※ High degree of serialization, rich product and output protocol options, and more application scenarios;
Detailed Images
|
No.
|
Item
|
Technical data
|
|
|
|
|||
|
|
|
XFC2-2M
|
XFC2-2L
|
XFC2-2H
|
XFC2-2S
|
|||
|
1
|
Wind speed measuring range
|
0-60m/s
|
|
0-100m/s
|
|
|||
|
2
|
Wind direction measuring range
|
0-360°
|
|
|
|
|||
|
3
|
Corresponding wind Angle
|
＜±10°
|
|
|
|
|||
|
4
|
Wind speed accuracy
|
±（0.5+0.05×V）m/s
|
|
±（0.5+0.025×V）m/s
|
±（0.5+0.05×V）m/s
|
|||
|
5
|
Wind speed starting value
|
0.5m/s
|
1.1m/s
|
1.0m/s
|
|
|||
|
6
|
Wind speed resolution
|
0.1m/s
|
0.2m/s
|
0.1m/s
|
|
|||
|
7
|
Wind direction accuracy
|
±3°
|
|
±5°
|
|
|||
|
8
|
Wind direction resolution
|
1°
|
|
0.1°
|
|
|||
|
9
|
Bearings
|
Carbon Fiber
|
|
stainless steel
|
|
|||
|
10
|
Material
|
AAS
|
|
|
PC
|
|||
|
11
|
Operating temperature range
|
-55℃ to 55℃
|
|
-70℃ to 70℃
|
|
|||
|
12
|
Output
|
analog signal, 0-5V, 4-20mA, Serial port (485.422.232 can be customized)
|
|
|
|
|||
|
13
|
Authentication certificate
|
CMA Report, Low temperature storage, Low temperature operation, High temperature operation, alternating wet and heat, constant wet
and heat, temperature change, salt spray, water test, shock, vibration
|
|
|
|
|||
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Packing&Shipping
Company Introduction
Handan Yantai Import and Export Co., Ltd. (Yantai Imp. & Exp.)
http://www.yantaisensor.com, established in March 2023, is a company focusing on Solar radiation, Air, Water, Soil, Weather monitoring products and solutions Import and Export Company.
The products currently on sale include: Ultra-wind wave anemometer, Solar radiation, Water quality, Hydrology, Sensors and Compact
weather stations, etc. The products are widely used in smart agriculture, A.I. environmental protection, A.I. transportation, A.I.power, Green energy, Hydrology and Water quality, etc. industry.
Adhering to the corporate philosophy of "bringing in and going out", Yantai Imp. & Exp. has continuously optimized and expanded
its product series, improved the company's product diversity, and expanded the scale of the international market. The company is committed to providing high-quality products and services to global customers.
Feel free to contact us if you have any enquiries ! My staffs and I are ready to serve you with Honour.
http://www.yantaisensor.com, established in March 2023, is a company focusing on Solar radiation, Air, Water, Soil, Weather monitoring products and solutions Import and Export Company.
The products currently on sale include: Ultra-wind wave anemometer, Solar radiation, Water quality, Hydrology, Sensors and Compact
weather stations, etc. The products are widely used in smart agriculture, A.I. environmental protection, A.I. transportation, A.I.power, Green energy, Hydrology and Water quality, etc. industry.
Adhering to the corporate philosophy of "bringing in and going out", Yantai Imp. & Exp. has continuously optimized and expanded
its product series, improved the company's product diversity, and expanded the scale of the international market. The company is committed to providing high-quality products and services to global customers.
Feel free to contact us if you have any enquiries ! My staffs and I are ready to serve you with Honour.
FAQ
Q: What is the application of the Wind Monitor? ?
Q:Are your products CE approved?
A:Yes, CE labeling is located on the product and the certificate of conformity is available upon request.
Q:What type of anemometer is best for high wind speeds?
A:The Wind Monitor is especially suited to high speed measurement. A Wind Monitor sensor can measure speeds 40% higher than sonic type anemometers.
Q: What payment ways do you accept of Wind Monitor?
A: The application scenarios of Wind Monitor are extremely wide, including
scientific research, meteorological observation and forecasting, disaster prevention and mitigation, etc. Specifically, it can be applied to marine buoys, wind power, meteorological stations, various ships and ships, highways, ports and bridges, etc.
scientific research, meteorological observation and forecasting, disaster prevention and mitigation, etc. Specifically, it can be applied to marine buoys, wind power, meteorological stations, various ships and ships, highways, ports and bridges, etc.
Q:Are your products CE approved?
A:Yes, CE labeling is located on the product and the certificate of conformity is available upon request.
Q:What type of anemometer is best for high wind speeds?
A:The Wind Monitor is especially suited to high speed measurement. A Wind Monitor sensor can measure speeds 40% higher than sonic type anemometers.
Q: What payment ways do you accept of Wind Monitor?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time of Wind Monitor?
A: Wind Monitor is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, Wind Monitor need extra 3-5 working days .
Q: What is your normal delivery way of Wind Monitor?
A: Wind Monitor will be sent DHL /FEDEX / UPS / EMS / TNT / or other proposed forwarders.Also can do as your requirement.
Q: How is your quality assurance service of Wind Monitor?
A: Our service is free exchange within one month and 12 months`quality guarantee.
Q: Could we make a visit to your factory ?
A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
