Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1200x1600x2900mm
-
Weight (T):
-
4.7 T
-
Model Number:
-
Y41-100
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
Hot sale 2023
-
Oil Pump:
-
Jiangsu Hengyuan
-
Solenoid Directional Valve:
-
Shandong Taifeng
-
PLC:
-
Zhongda Youkong
-
Touch Screen:
-
Zhongda Youkong
-
Main Motor:
-
Nanjing Chaoli
Quick Details
-

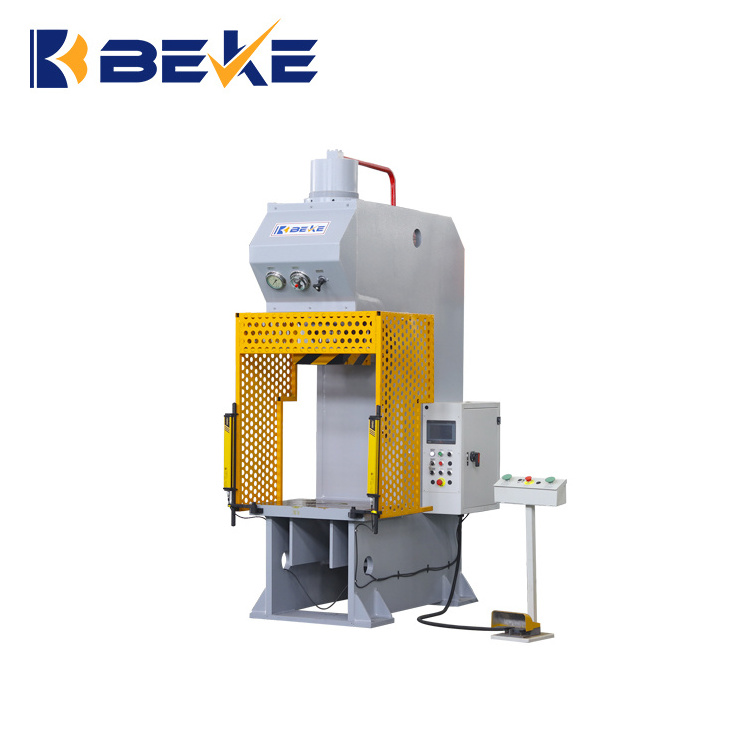

Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
1000
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
China
-
Brand Name:
-
BEKE
-
Year:
-
2023
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1200x1600x2900mm
-
Weight (T):
-
4.7 T
-
Model Number:
-
Y41-100
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
Hot sale 2023
-
Oil Pump:
-
Jiangsu Hengyuan
-
Solenoid Directional Valve:
-
Shandong Taifeng
-
PLC:
-
Zhongda Youkong
-
Touch Screen:
-
Zhongda Youkong
-
Main Motor:
-
Nanjing Chaoli
Product Description
Technical Details
|
ITEM
|
|
UNIT
|
Y41-100
|
|
|
Nominal pressure
|
|
KN
|
1000
|
|
|
Liquid working pressure
|
|
Mpa
|
25
|
|
|
Maximum opening height
|
|
mm
|
900
|
|
|
Slide stroke
|
|
mm
|
500
|
|
|
Throat depth
|
|
mm
|
340
|
|
|
Slider down speed
|
Going down speed
|
mm/s
|
38
|
|
|
|
Pressing speed
|
mm/s
|
10
|
|
|
|
Going up speed
|
mm/s
|
118
|
|
|
Effective size of worktable
|
Left to Right
|
mm
|
750
|
|
|
|
Front to Back
|
mm
|
630
|
|
|
The height of the workbench from the ground
|
|
mm
|
700
|
|
|
Motor power
|
|
kw
|
11
|
|
