Quick Details
-
Voltage:
-
220V 50Hz
-
Power:
-
2100W
-
Dimension(L*W*H):
-
720*525*535mm
-
Weight (KG):
-
90
-
Marketing Type:
-
Hot Product
-
Temperature Range:
-
RT+10~250℃
-
Vacuum Degree:
-
133Pa
-
Ambient Temperature:
-
+5~40℃
-
Shelf:
-
2(pcs)
-
Chamber Material:
-
Stainless
-
Weight:
-
80KG
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lith
-
Voltage:
-
220V 50Hz
-
Power:
-
2100W
-
Dimension(L*W*H):
-
720*525*535mm
-
Weight (KG):
-
90
-
Marketing Type:
-
Hot Product
-
Temperature Range:
-
RT+10~250℃
-
Vacuum Degree:
-
133Pa
-
Ambient Temperature:
-
+5~40℃
-
Shelf:
-
2(pcs)
-
Chamber Material:
-
Stainless
-
Weight:
-
80KG

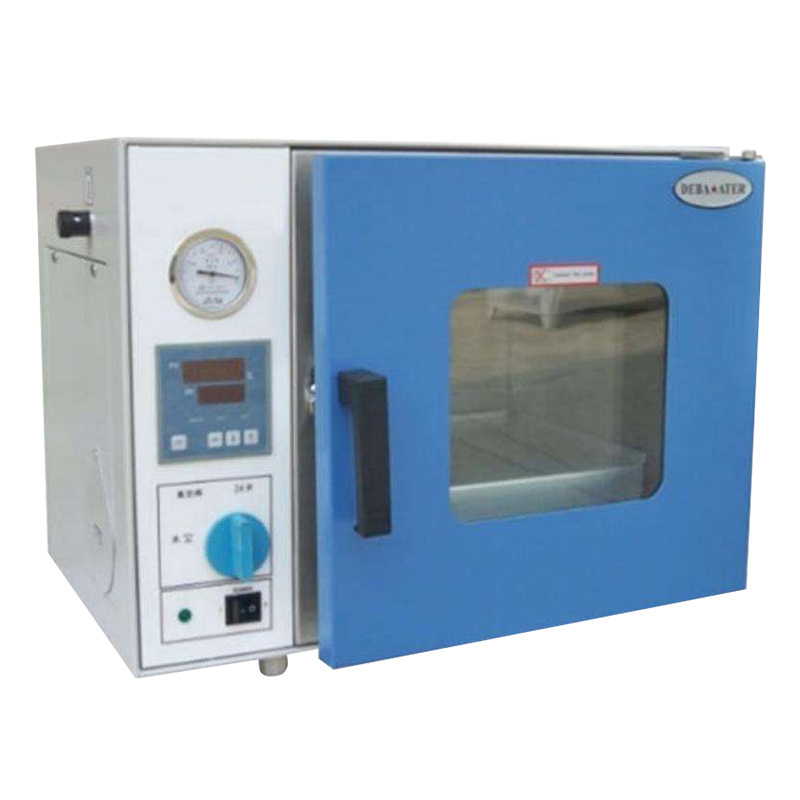

200-400C 25L/50L Heating Sterilizing Vacuum Drying Oven with 304 Stainless Steel Chamber
Features
Vacuum drying oven is specially designed for drying thermal sensitivity, easy decomposition and oxidizable substances. When working, it can keep a certain vacuum in the working room, and can fill inert gas into the interior. Especially some articles with complex components can also be dried quickly. Intelligent digital temperature regulator is used to set the temperature. Display and control.
Application
Vacuum drying oven is widely used in biochemistry, agricultural scientific research, environmental protection and other research and application fields. It is used for powder drying, baking and disinfection and sterilization of various glass containers. Especially suitable for drying heat-sensitive, decomposible, oxidizable and complex components of articles with fast and efficient drying treatment.
Advantage
1. Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
2. 52 L Middle size vacuum chamber.
3. 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
4. Silicone door gasket and positive latch door maintain seal at all vacuum levels.
5. Exclusive polycarbonate safety shield protects door glass.
6. Vacuum fittings require .25" (6.35 mm) I.D. tubing.
7. Easy-to-clean #304 stainless steel chamber interior.
8. Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
9. Two removable stacking aluminum shelves included.
10. CE certificated.
Specifications
|
Model |
6052 |
6210 |
6090 |
6250 |
6050 |
6051 |
6021 |
6020 |
6030A Special for chemistriy |
6030B/6050B Special for chemistriy |
|
|
Electrical Requirements |
|
220V 50Hz |
380V 50Hz |
220V 50Hz |
|||||||
|
Input Power |
|
2100W |
1400W |
3000W |
1400W |
1400W |
500W |
500W |
500W |
400W/700W |
|
|
Temperature Range |
RT |
RT+10~250℃ |
RT+10~200℃ |
RT+10~250℃ |
RT+10~65℃ |
||||||
|
Temperature Control/Stability |
|
0.1℃/±0.5℃ |
|||||||||
|
Vacuum Degree |
133Pa |
||||||||||
|
Ambient Temperature |
+5~40℃ |
||||||||||
|
Interior Dimension (mm)W*D*H |
415*370 *345 |
560*640 *600 |
450*450 *450 |
700*600 *600 |
415*370 *345 |
300*300 *275 |
320*320 *300 |
320*320*300 415*370*345 |
|||
|
Overall Dimension |
720*525 *535 |
720*820 *1750 |
615*590 *1470 |
1050*760 *910 |
720*525 *535 |
580*450 *450 |
630*510 *460 |
610*510*490 710*560*550 |
|||
|
shelves |
2(pcs) |
3(pcs) |
2(pcs) |
3(pcs) |
2(pcs) |
1(pcs) |
1(pcs) |
1/2 (pcs) |
|||
|
Chamber Material |
Stainless |
Rolled sheet |
Stainless |
||||||||
|
Chamber and Door |
1. The chamber is structured with stainless steel and welded to bracing pieces.
|
|
Vacuum Pump
|
Ultimate Vacuum Level: 1000 millitorrs. |
|
Working Voltage |
AC 110 - 240 V 50/60 Hz |
|
Input Power |
500W |
|
Working Temperature |
RT+10 ~ 200°C for the continuous use |
|
Temperature Controller |
1. Single point temperature setting
|
|
Fittings |
This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump. |
|
Compliance |
CE Certified |
|
Warranty |
One years limited warranty with lifetime technical support |
|
Attention |
1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
|
