Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
6210*2410*3763mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0 cbm
-
Warranty of core components:
-
1 years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MAX. PULLING FORCE:
-
39KN
-
FRONT BUCKET CAPACITY:
-
1.0m³
-
FRONT BUCKET RATED LOAD:
-
2500KG
-
BACKHOE BUCKET CAPACITY:
-
0.3m³
-
BREAKOUT FORCE:
-
38KN
-
LENGTH:
-
6210mm
-
WIDTH:
-
2410mm
-
HEIGHT:
-
3763mm
-
MIN. GROUND CLEARANCE:
-
300mm
Quick Details
-
Engine Brand:
-
Chinese brand
-
Power:
-
75 KW
-
Brand Name:
-
DGM
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
6210*2410*3763mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0 cbm
-
Warranty of core components:
-
1 years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
MAX. PULLING FORCE:
-
39KN
-
FRONT BUCKET CAPACITY:
-
1.0m³
-
FRONT BUCKET RATED LOAD:
-
2500KG
-
BACKHOE BUCKET CAPACITY:
-
0.3m³
-
BREAKOUT FORCE:
-
38KN
-
LENGTH:
-
6210mm
-
WIDTH:
-
2410mm
-
HEIGHT:
-
3763mm
-
MIN. GROUND CLEARANCE:
-
300mm
Product Description
--
388

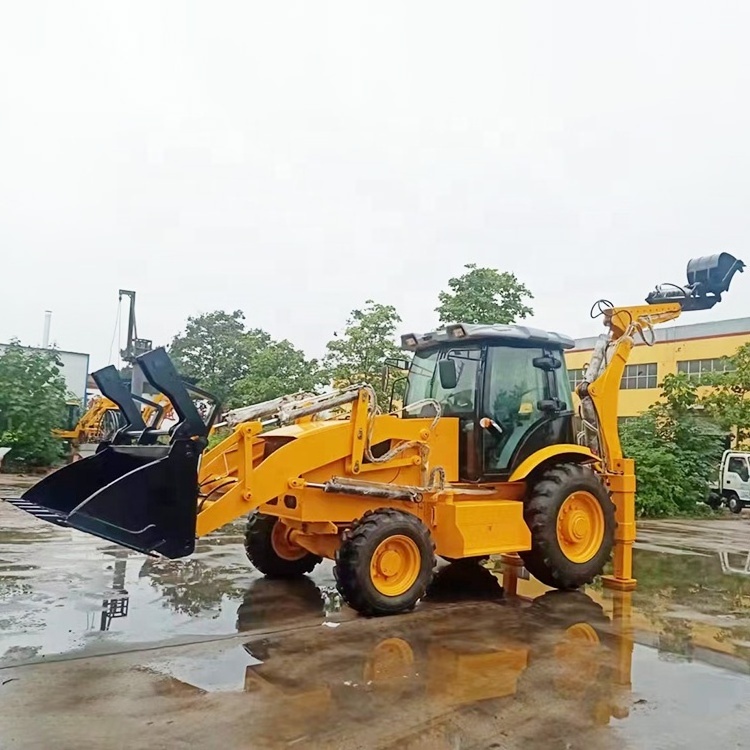

4 wheel drive new backhoe and loader chinese backhome loaders tractor front loader and backhoe
-- Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site.
-- Loading device features refer to the world's advanced level of the British JCB 3 cx type structure, mining device features refer to John Deere 310 se type structure, beautiful shape, cab USES large area glass, good day lighting sex and vision, the driver operation more comfortable.
-- With the gas cap oil pliers disc type foot brake system and external beam hand drum brakes, brake safe and reliable.
-- Adopts hydraulic transmission structure, improve the reliability of the transmission system.
-- Adopts full hydraulic steering, power shift, working device hydraulic control. The operation of portable flexible, smooth and reliable action.
-- Based on low voltage wide base off-road tires, driving axle swinging, good cross-country performance and through the performance.
-- To the excavation of lateral sliding device and the excavation scope is bigger, a wider range of application.
-- Adopted 360 damping suspension type rotating seats, with the armrest and seat belt, improves the comfort and safety of the driver.
-- Machine/diesel tank refueling location convenient and easy to observe the oil level.
Specification
|
IDENTIFICATION
|
BRAND
|
AOLITE
|
MODEL
|
388
|
|||
|
|
TOTAL WEIGHT
|
8200KG
|
FUEL TYPE
|
DIESEL
|
|||
|
|
FRONT BUCKET CAPACITY
|
1.0m³
|
FRONT BUCKET RATED LOAD
|
2500KG
|
|||
|
|
BACKHOE BUCKET CAPACITY
|
0.3m³
|
BREAKOUT FORCE
|
38KN
|
|||
|
DIMENSION
|
LENGTH
|
6210mm
|
WIDTH
|
2410mm
|
|||
|
|
HEIGHT
|
3763mm
|
MIN. GROUND CLEARANCE
|
300mm
|
|||
|
|
DUMPING HEIGHT
|
2700mm
|
DUMPING DISTANCE
|
925mm
|
|||
|
|
MAX. DIGGING DEPTH
|
4082mm
|
SWING ANGLE OF EXCAVATOR GRAB
|
190°
|
|||
|
|
MAX. PULLING FORCE
|
39KN
|
MAX. EFFICIENCY
|
84.4%
|
|||
|
ENGINE
|
MODEL
|
CYD YC4A105Z-T20
|
BRAND
|
YUCHAI
|
|||
|
|
RATED OUTPUT
|
75KW
|
RATED SPEED
|
2200 r/min
|
|||
|
TRANSMISSION SYSTEM
|
CONVERTER MODEL
|
280
|
GEARBOX PATTERN
|
HYDRAULIC
|
|||
|
|
DRIVE MODEL
|
AUTO,4WD
|
MAX. SPEED
|
28kw/h
|
|||
|
|
GEAR SHIFTS
|
2 FORWARD, 2REVERSE
|
|
|
|||
|
TYRE
|
QUANTITY
|
2/2(F/R)
|
TYRE SIZE
|
14-17.5/19.5L-24
|
|||
|
|
AXLE TYPE
|
DECELERATING TYPE
|
|
|
|||
|
BRAKE SYSTEM
|
SERVICE BRAKE
|
PNEUMATIC DISC BRAKE
|
PARK BRAKE
|
HAND OPERATED CALIPER DISC
|
|||
|
STANDARD
|
standard bucket、mechanical joystick、cab heater、 rear camera、warning lights、Radio
|
|
|
|
|||
|
PACKAGE
|
2 sets in 1*40HQ container
|
|
|
|
|||
