Quick Details
Quick Details
-
Application:
-
Machining, Mining industry
-
Pressure:
-
High Pressure
-
Place of Origin:
-
chian
Products Description

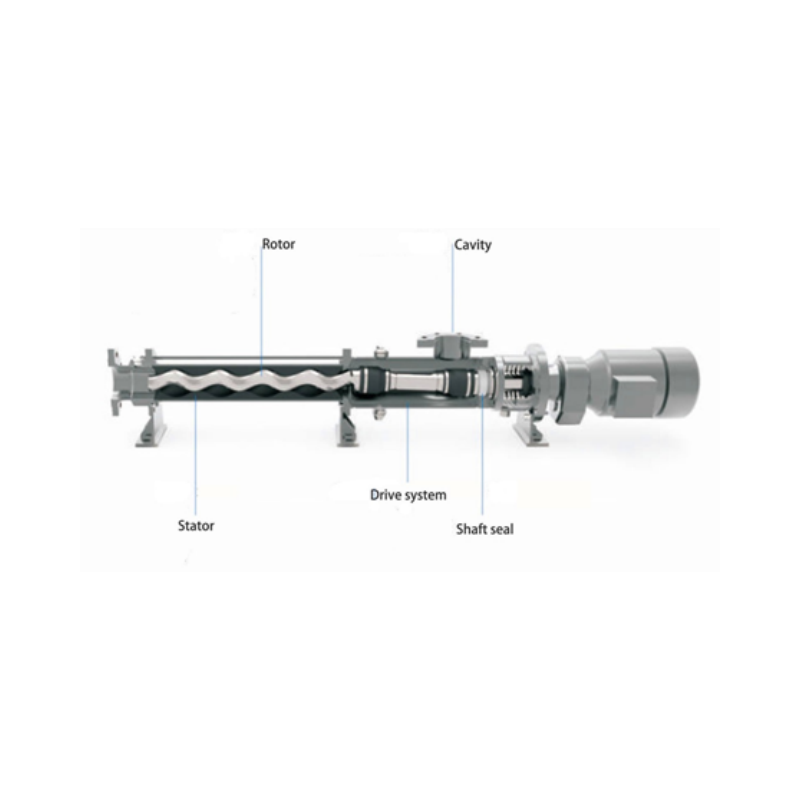

The surface multiphase PCP is a positive displacement pump mainly composed of a stator and a rotor. The rotor adopts multi-lobe involute design to offer wide range of rotating speed with minimum pressure pulsation, stable rotation and high suction capacity. The pump is simple in structure, easy for maintenance, reliable in operation and with longer working life. It can deliver various mediums such as high viscous crude oil or fluids in different phases and is widely used in petroleum, coal, chemicals or food industry.
Specification
|
Model
|
Flow rate, m3/h
|
Rated pressure,
MPa |
|
|
Rated speed,
r/min |
Suction pressure,
MPa |
Motor power,
kW |
|
|||
|
HX22-20-2.4/1.8
|
20
|
2.4
|
1.8
|
|
167
|
>0.08
|
22
|
15
|
|||
|
HX22-17-2.4/1.8
|
17
|
2.4
|
1.8
|
|
136
|
>0.08
|
18
|
15
|
|||
|
HX22-15-2.4/1.8
|
15
|
2.4
|
1.8
|
|
120
|
>0.08
|
15
|
11
|
|||
|
HX22-13-2.4/1.8
|
13
|
2.4
|
1.8
|
|
107
|
>0.08
|
15
|
11
|
|||
|
HX22-10-2.4/1.8
|
10
|
2.4
|
1.8
|
|
96
|
>0.08
|
11
|
11
|
|||
|
HX22-8-2.4/1.8
|
8
|
2.4
|
1.8
|
|
77
|
>0.08
|
10
|
10
|
|||
|
HX44-33-2/1.6/1.2
|
33
|
2
|
1.6
|
1.2
|
136
|
>0.08
|
30
|
22
|
|||
|
HX44-29-2/1.6/1.2
|
29
|
2
|
1.6
|
1.2
|
120
|
>0.08
|
22
|
18
|
|||
|
HX44-25-2/1.6/1.2
|
25
|
2
|
1.6
|
1.2
|
107
|
>0.08
|
22
|
18
|
|||
|
HX55-52-2
|
52
|
2
|
1.6
|
|
167
|
>0.08
|
37
|
37
|
|||
|
HX55-42-2
|
42
|
2
|
1.6
|
|
136
|
>0.08
|
37
|
30
|
|||
|
HX55-31-2
|
31
|
2
|
1.6
|
|
107
|
>0.08
|
30
|
22
|
|||
|
HX66-62-1.5
|
62
|
1.5
|
1.2
|
|
167
|
>0.08
|
37
|
30
|
|||
|
HX66-50-1.5
|
50
|
1.5
|
1.2
|
|
136
|
>0.08
|
30
|
30
|
|||
|
HX66-42-1.5
|
42
|
1.5
|
1.2
|
|
120
|
>0.08
|
30
|
22
|
|||
|
HX66-31-1.5
|
31
|
1.5
|
1.2
|
|
96
|
>0.08
|
22
|
18
|
|||
|
HX66-29-1.5
|
29
|
1.5
|
1.2
|
|
85
|
>0.08
|
18
|
15
|
|||
|
HX127-83-2
|
83
|
2
|
1.6
|
1.2
|
136
|
>0.08
|
75
|
60
|
|||
|
HX127-75-2
|
75
|
2
|
1.6
|
1.2
|
107
|
>0.08
|
60
|
50
|
|||
|
HX127-67-2
|
67
|
2
|
1.6
|
1.2
|
96
|
>0.08
|
55
|
45
|
|||
|
HX127-58-2
|
58
|
2
|
1.6
|
1.2
|
85
|
>0.08
|
50
|
37
|
|||
