Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
UU MOTOR
-
Model Number:
-
SVH5A
-
Torque:
-
3Nm(peak 7Nm)
-
Certification:
-
ce
-
Voltage:
-
24V,36V,48V
-
Power:
-
50w-250w
-
current:
-
3A-7A(peak 16A)
-
torque:
-
3.5N.m(peak torque:7N.m)
-
Diameter:
-
128mm
-
Shaft type:
-
dual shaft
-
max load:
-
35kg
Quick Details
-
Speed(RPM):
-
300-500RPM
-
Continuous Current(A):
-
3-7A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
China
-
Brand Name:
-
UU MOTOR
-
Model Number:
-
SVH5A
-
Torque:
-
3Nm(peak 7Nm)
-
Certification:
-
ce
-
Voltage:
-
24V,36V,48V
-
Power:
-
50w-250w
-
current:
-
3A-7A(peak 16A)
-
torque:
-
3.5N.m(peak torque:7N.m)
-
Diameter:
-
128mm
-
Shaft type:
-
dual shaft
-
max load:
-
35kg
Product Description

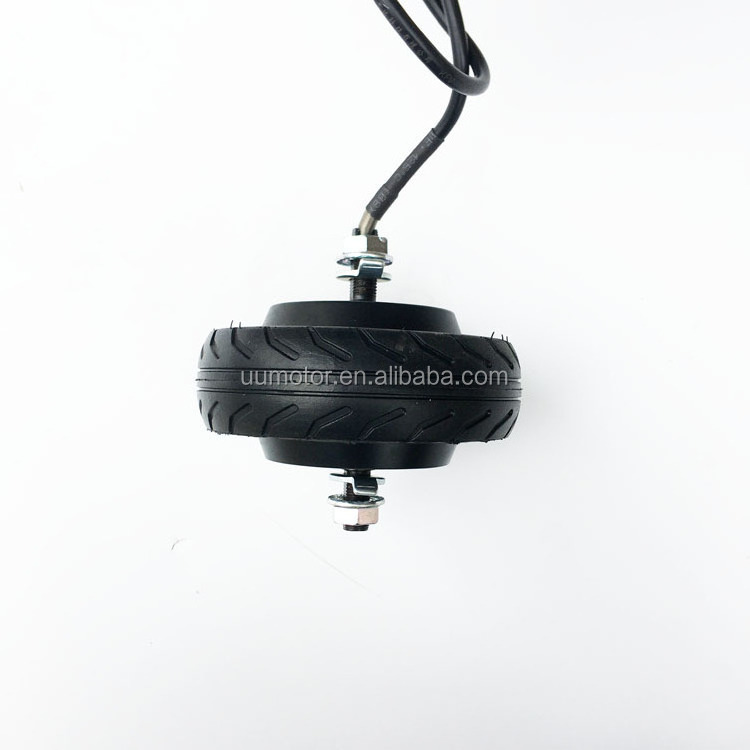

We have 4 inch hub servo motor, 4.5 inch sevo wheel motor, 5 inch agv servo hub motor, 6 inch, 6.5 inch servo hub motor and 8 inch servo hub motor with encoder for robot, AGV, RGV, dual shaft and mono shaft version.
|
Rated voltage
|
24v,36v,48v
|
|
Motor weight
|
1.9kg
|
|
Rated Power
|
50w-250w
|
|
Rated speed
|
300-500RPM
|
|
3Rated troque
|
3N.m(peak torque:7N.m)
|
|
Rated current
|
3-7A(peak:16A)
|
|
Max load
|
35kg
|
Related Products
FAQ
1. Is that ok to customize a sample?
Yes. We can customize a motor sample as per your request. And we also make motor as per your design.
2. Can I have a sample first?
Yes. In fact we have manystandard products read to ship. You can buy them from our alibaba or our company online store.
3. How about your delivery time?
It will take 10 to 15 days after receiving your advance payment. Bull order under 500pcs lead time is 20 working days.
4. What is your terms of payment?
Sample or small oder needs 100% deposit. Bulk order 30%-50% deposite and balance should be paid before shipping.
5. How the goods is shipped?
Sample and small orders are shippied by air express(Fedex,TNT,DHL,UPS) door to door services, And also more and more customers like air express shipping for bulk orders too.
6. What is the warranty and return policy?
We send replacement parts or new products for the defectives. Sometime refund the defective products. We will do best to make our customers' interests.
