Quick Details
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
P0 P5 P6
-
Product name:
-
Plummer Block Bearing units SNK511-609
-
Housing material:
-
Cast Iron HT200/ Ductile Iron
-
Material:
-
Chrome Steel GCR15
-
Certification:
-
ISO9001:2008
-
Model:
-
SNL SNG SD SN
-
Brand:
-
Follow Customer's Request
-
MOQ:
-
1 PC
-
Package:
-
Box+ Cartons + Pallet
-
Application:
-
Mining. Metallurgy. Agriculture. Chemical
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Brand Name:
-
Custom
-
Model Number:
-
SNK511-609
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
P0 P5 P6
-
Product name:
-
Plummer Block Bearing units SNK511-609
-
Housing material:
-
Cast Iron HT200/ Ductile Iron
-
Material:
-
Chrome Steel GCR15
-
Certification:
-
ISO9001:2008
-
Model:
-
SNL SNG SD SN
-
Brand:
-
Follow Customer's Request
-
MOQ:
-
1 PC
-
Package:
-
Box+ Cartons + Pallet
-
Application:
-
Mining. Metallurgy. Agriculture. Chemical
Product Description

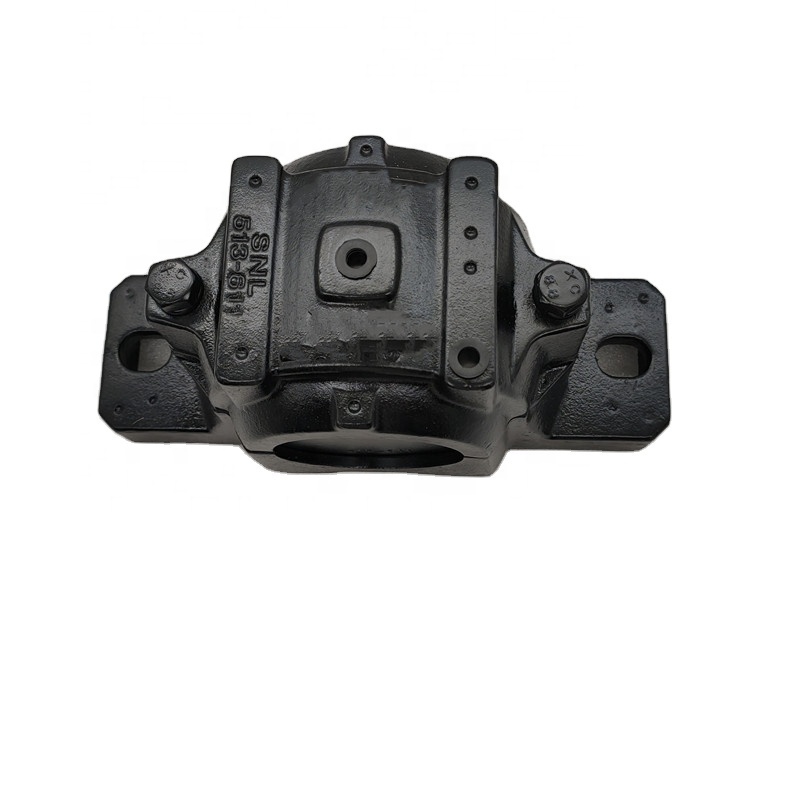

SN SNL Series Split Plummer Block Bearing Housings SNL516-613 Size 69.85X315X177mm
SNL plummer block housings are very popular as they are very versatile and it is seldom necessary to resort to tailored housings for specific applications.

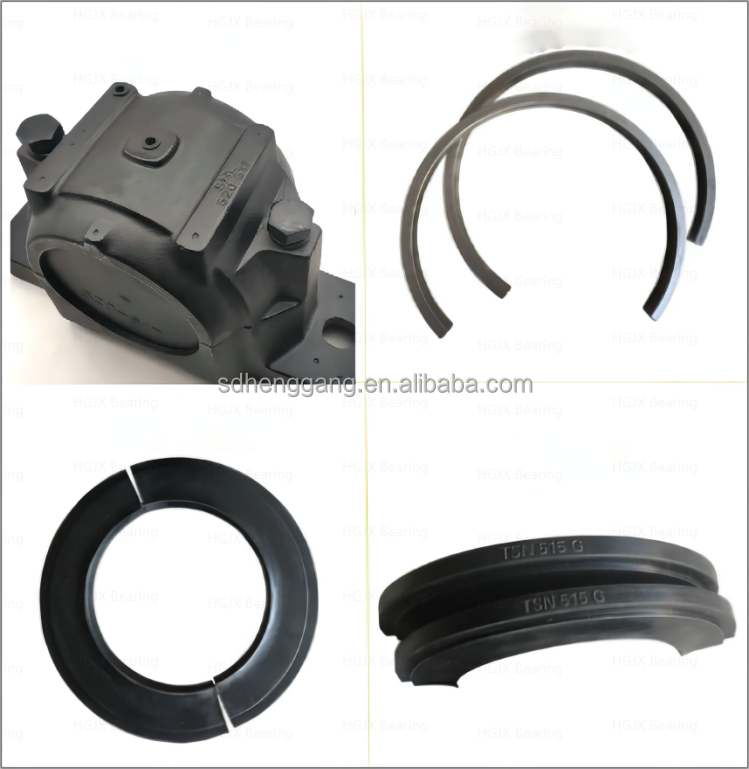

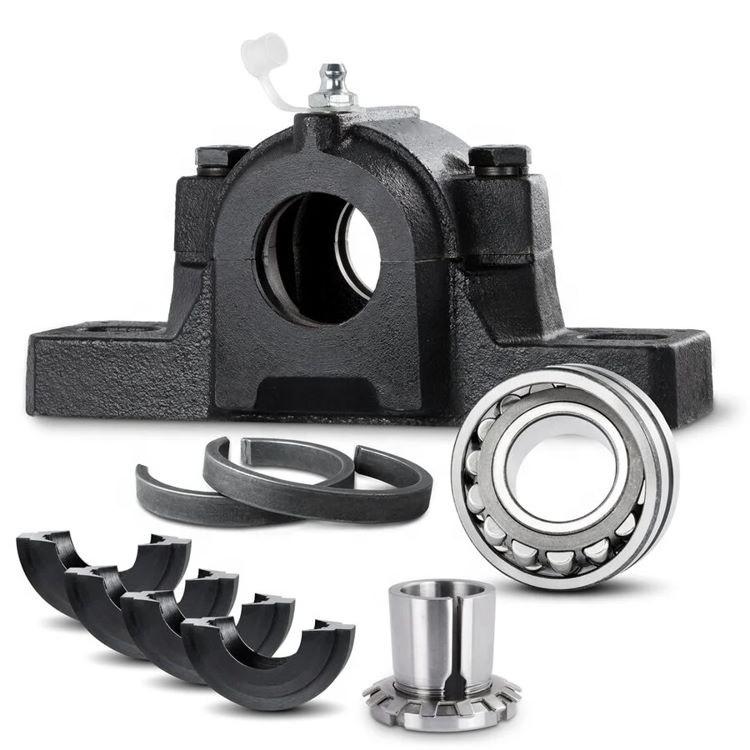

Split Plummer Block Housing SNL516-613 in a Set with Bearing Insert 22216E-K-W33 and adapter sleeve HE316, incl. 2 Locating Rings
2 x FRB 12.5/140
Split plummer block housings, SNK series for bearings on an adapter sleeve, with standard seals
The divisible housing SNL516-613 made of flake graphite cast iron comes in a set with the fitting spherical roller bearing insert 22216EK-W33 and a pair of locating rings 2 x FRB-12.5/140. In addition, the matching seal set TG (double lip seal) is included. The components of the set are selected, so that the housing can be mounted directly.
Details Images

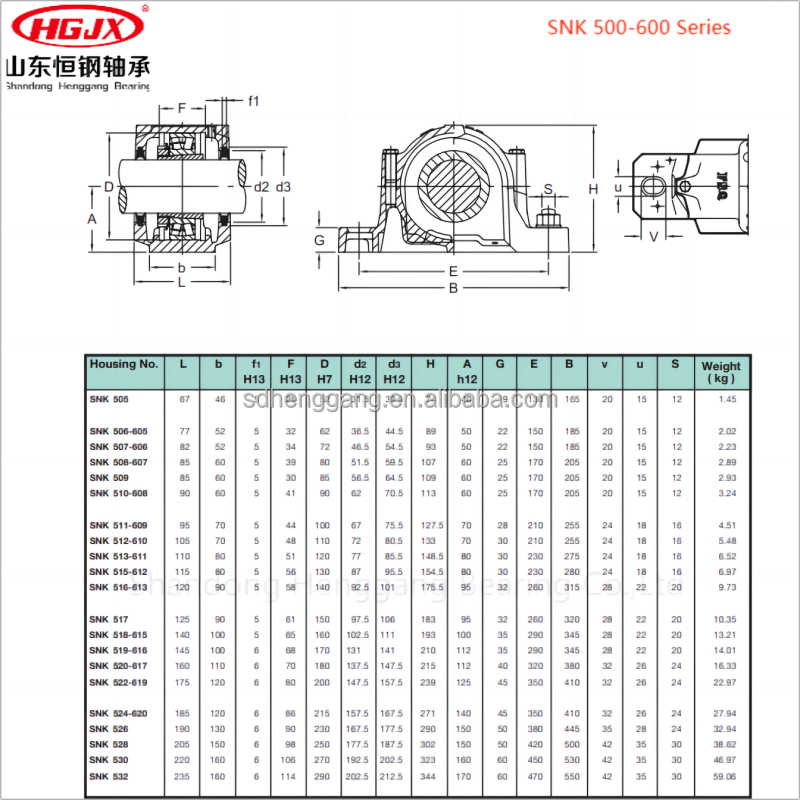

Specification
|
Product Name
|
SNK511-609 Split Plummer Block Bearing Housing SNK 511-609 SNK 512-610 SNK 515-612 SNK516-613 SNK518-615
|
|
Type
|
Split Bearing Housings,Split Pillow Block Housings
|
|
Shaft Diameter
|
40mm
|
|
Housing Material
|
Cast Iron
|
|
Adatper Sleeve
|
H309 H2309
|
|
Weight
|
4.5kg
|
|
Packaging
|
Plastic protective film, wooden box, wooden pallet
|
|
Application
|
Ball mill,reducer,crusher,etc
|
