- Product Details
- {{item.text}}
Quick Details
-
Size:
-
13000mm*2550mm
-
Place of Origin:
-
Liaoning, China
-
Name:
-
Flatbed Semi Trailer
-
Suspension System:
-
Leaf Spring Suspension/Air Suspension
-
Axle Brand:
-
Fuwa/BPW Brand
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
King pin:
-
50#/90#
-
Color:
-
Customers Optional
-
Function:
-
Transport stone, sand
-
Tire:
-
LONGMARCH 12R22.5
-
Wheel:
-
12R22.5
-
Product name:
-
Flatbed Trailer
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60 tons
-
Brand Name:
-
Three Horses
-
Size:
-
13000mm*2550mm
-
Place of Origin:
-
Liaoning, China
-
Name:
-
Flatbed Semi Trailer
-
Suspension System:
-
Leaf Spring Suspension/Air Suspension
-
Axle Brand:
-
Fuwa/BPW Brand
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
King pin:
-
50#/90#
-
Color:
-
Customers Optional
-
Function:
-
Transport stone, sand
-
Tire:
-
LONGMARCH 12R22.5
-
Wheel:
-
12R22.5
-
Product name:
-
Flatbed Trailer

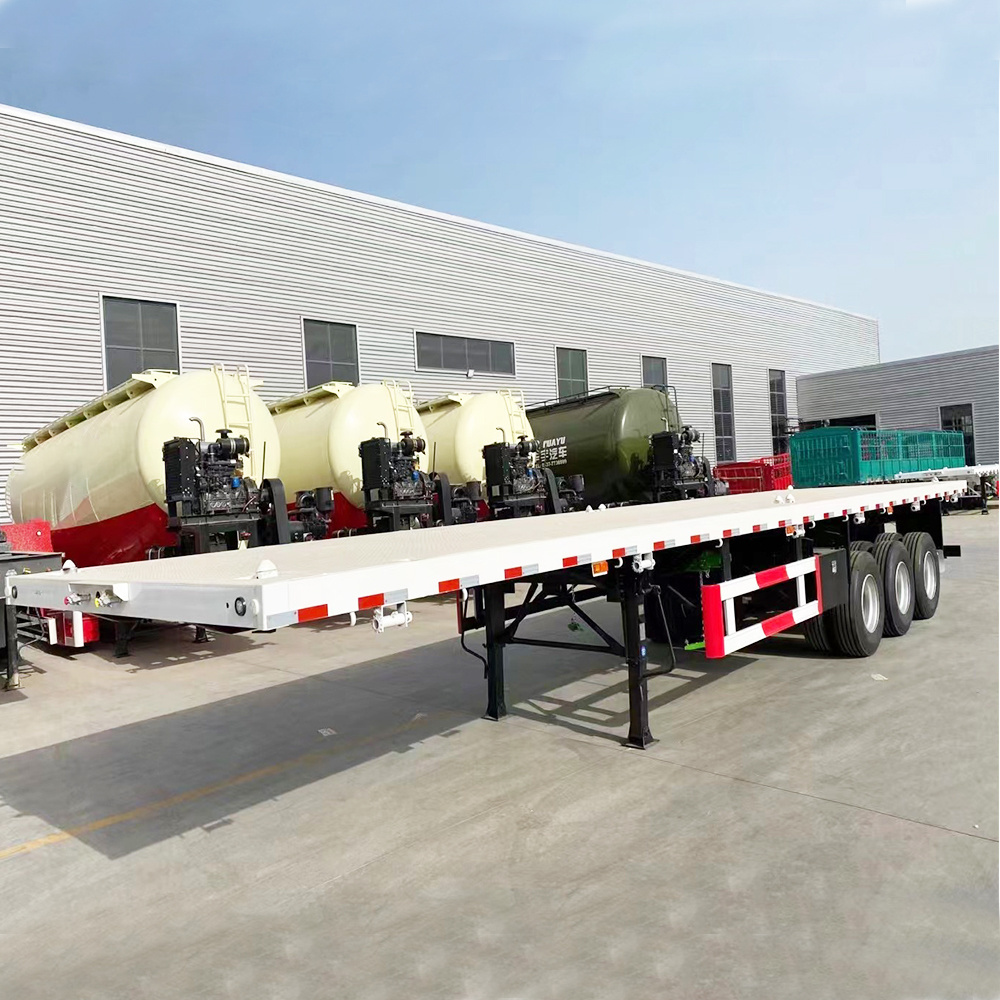

Products Description
Shenyang Three Horses Company can design and produce semi-trailers according to customer's need.
We use high-quality SH800 steel to increase strength and toughness and acid, sulfur and corrosion resistance.
We use high-quality SH800 steel to increase strength and toughness and acid, sulfur and corrosion resistance.
Specifications
|
Dimension
|
13000mm*2550mm*1600mm/1800mm/2000mm/2200mm
|
|
Vehicle Weight
|
5.9-6.1T
|
|
Loading Capacity
|
40T
|
|
King Pin
|
90#/50#
|
|
Axle
|
3*13T BPW/FUWA Axles
|
|
Tire
|
LONGMARCH 12R22.5
|
|
Main Beam
|
T700L 8*10*5mm
|
|
Landing Gear
|
28 Tons , Two speed manual operation
|
|
Suspension System
|
Leaf spring suspension / Air suspension
|
|
Braking System
|
6 pair Sorl ABS Kormee4S/3M
|
|
Electronic System
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
|
|
Painting
|
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will
be available |
|
Tool Box
|
2 tool box with a set of standard trailer tools
|
|
Spare Tire Frame
|
2
|
Customer Reviews
Why Choose Us
1.
Lighter weight with higher strength
:
Our steel contains molybdenum alloy and vanadium alloy, so the beam strength, toughness
and low temperature impact yield strength are increased to 820MPa, the tensile strength is increased to 920MPa. The weight of the
trailer is reduced by 200kg, so it can carry more cargo when it is fully loaded, and save more fuel when it is empty.
2.
Durability:
Antimony alloy, nickel alloy and copper alloy are added to our steel, which has the advantages of acid resistance,
sulfur resistance and corrosion resistance.
3.
Robustness:
The front baffle is made of special steel, the yield strength is more than 1200MPa, and the impact resistance is more than 4 times that of ordinary steel.
4.
Advanced brake valve:
Our valve can self-heating and will not reduce the braking effect due to cold weather, especially when the braking effect is very significant when going downhill; it can automatically drain and exhaust.
5.
Top Axles:
Fuwa and BPW.
Quality Assurance
Shipping
Safety and Economic Shipping
Experienced teams choose the most suitable shipping way for different clients among containers, Roro and bulk shipment, balance safety and economic cost.
