Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAINT-FECO
-
Voltage:
-
380v/50HZ
-
Power:
-
23KW
-
Dimension(L*W*H):
-
19500x2100x3500mm
-
Weight:
-
6000 kg
-
Model:
-
SFW-2500
-
Air Pressure:
-
0.5-0.8Mpa
-
Max.Glass Size:
-
2500x3000mm
-
Min. Glass Size:
-
280x450mm
-
Working Direction:
-
Right to Left or Left to Right
-
Transfer Speed:
-
8-45m/min
Quick Details
-
Machine Type:
-

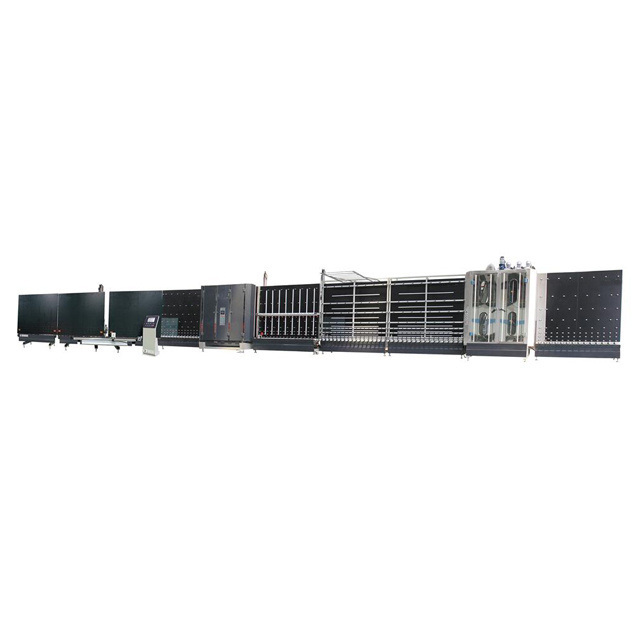

Insulating Glass Production Line
-
Glass Thickness:
-
3-18mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAINT-FECO
-
Voltage:
-
380v/50HZ
-
Power:
-
23KW
-
Dimension(L*W*H):
-
19500x2100x3500mm
-
Weight:
-
6000 kg
-
Model:
-
SFW-2500
-
Air Pressure:
-
0.5-0.8Mpa
-
Max.Glass Size:
-
2500x3000mm
-
Min. Glass Size:
-
280x450mm
-
Working Direction:
-
Right to Left or Left to Right
-
Transfer Speed:
-
8-45m/min
Products Description
|
Model
|
SFW-2500
|
SFW-2000
|
|
Voltage
|
380V/50HZ
|
380V/50HZ
|
|
Power
|
28KW
|
23KW
|
|
Air Pressure
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
|
Max.Glass Size
|
2500x3000mm
|
2000x2500mm
|
|
Min. Glass Size
|
280x450mm
|
280x450mm
|
|
Working Direction
|
Right to Left or Left to Right
|
Right to Left or Left to Right
|
|
Glass Thickness
|
3-18mm
|
3-18mm
|
|
Transfer Speed
|
8-45m/min
|
8-45m/min
|
|
Weight
|
7000KGS
|
6000KGS
|
|
Dimension
|
22200x2300x3700mm
|
19500x2100x3500
|
|
Main Parts List：
|
|
|
|
|
No.
|
Component Name
|
Brand
|
Origin
|
|
1
|
PLC
|
SIEMENS
|
Germany
|
|
2
|
Frequency Converter
|
SIEMENS
|
Germany
|
|
3
|
Touching Screen
|
SIEMENS
|
Germany
|
|
3
|
Variable Speed Motor
|
DYG
|
Taiwan, China
|
|
4
|
Power Source
|
Schneider
|
France
|
|
5
|
Circuit Breaker
|
Schneider
|
France
|
|
6
|
Relay
|
Schneider
|
Schneider
|
|
7
|
Coated Glass Detection Switch
|
Omron
|
Japan
|
|
8
|
Limit Switch
|
Schneider
|
France
|
|
9
|
AC Contactor
|
Schneider
|
France
|
|
10
|
Solenoid Valve
|
AIRTAC
|
Taiwan, China
|
|
11
|
Cylinder
|
AIRTAC
|
Taiwan, China
|
|
12
|
Water Pump
|
DALEI
|
China
|
|
13
|
Brushes
|
Haoer
|
China
|
|
14
|
Roller
|
Jiayuan
|
China
|
|
15
|
Roller Bearing
|
Haierbin Group
|
China
|
|
16
|
High Pressure Fan
|
Hanshuo
|
China
|
|
17
|
Foot Pedal
|
Mingde
|
China
|
Features:
1.PLC Control ,touch screen human-machine interface
2.It can make double glass, triple glass, big and small glass ect.
3.Automatic recognition of coated glass and LOW-E glass film.
4.Imported glass suction cup and vacuum generator makes better glass catching effect
5.The protection panel has been processed with plastic spraying to achieve good performance and long life time
6.Cleaning parts adopts stainless steel and resistance material
7.All electrical parts using international famous brand.
8.The pressing part can be widen to 450 mm for easy maintenance
9.The pressing parts adopt opening-door style for convenient maintenance.
